(CV1500) - VIBRATORY ROLLER (7/01-)
/

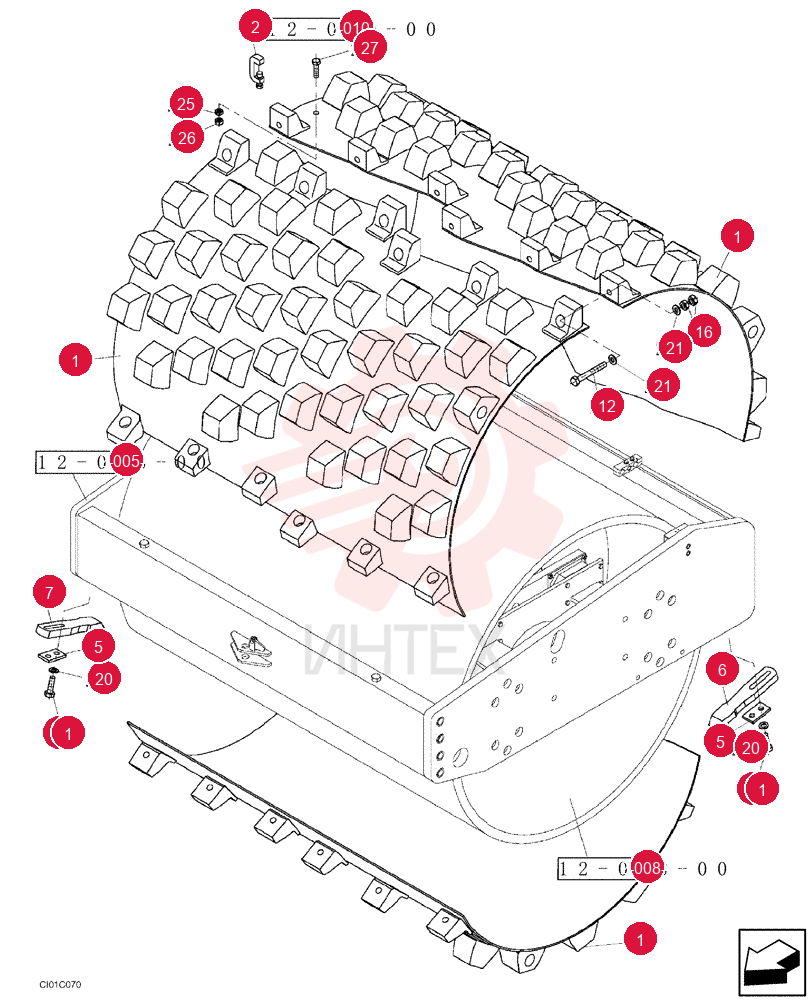

SHELL ND011370

SHELL ND011370

SHELL ND011370

1 ND011370

  • ND011370 - SHELL

2 ND054304

  • ND054304 - CLAMP

3 ND048476

  • ND048476 - PLATE

4 ND031242

  • ND031242 - SCRAPER TOOL

5 ND031240

  • ND031240 - SCRAPER TOOL

6 ND021243

  • ND021243 - BOLT
  • M20 x 70

7 ND098359

  • ND098359 - SCREW

8 ND021853

  • ND021853 - NUT
  • M20

9 ND035944

  • ND035944 - WASHER
  • ID 20

10 ND029255

  • ND029255 - WASHER
  • ID 21

11 NSS

  • NSS - NOT SERVICED SEPARATELY

12 NSS

  • NSS - NOT SERVICED SEPARATELY

13 NSS

  • NSS - NOT SERVICED SEPARATELY
