(CV1500) - VIBRATORY ROLLER (7/01-)
/

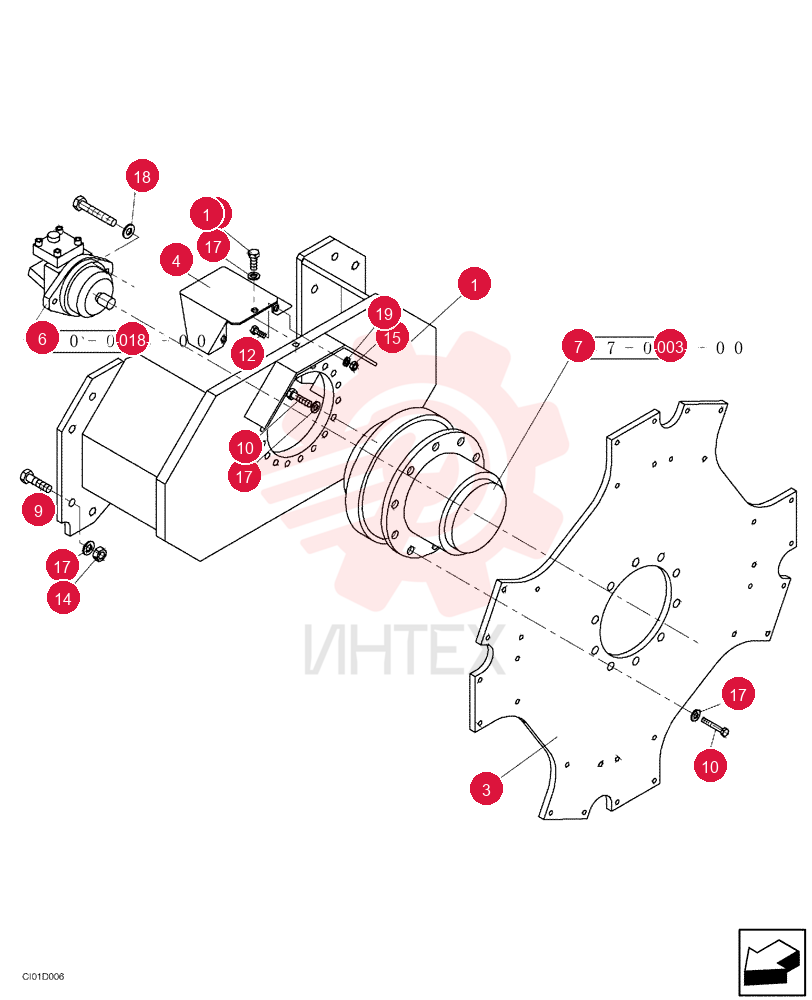

SUPPORT ND018285

SUPPORT ND018285

SUPPORT ND018285

1 ND018285

  • ND018285 - SUPPORT

2 ND011846

  • ND011846 - CARRIER

3 ND018634

  • ND018634 - COVER

4 ND090920

  • ND090920 - HYDRAULIC MOTOR

5 ND090943

  • ND090943 - GEAR REDUCTION UNIT

6 ND021247

  • ND021247 - BOLT
  • M20 x 100

7 ND021241

  • ND021241 - BOLT
  • M20 x 60

8 ND021328

  • ND021328 - BOLT
  • M16 x 25

9 ND021211

  • ND021211 - BOLT
  • M12 x 60

10 ND021853

  • ND021853 - NUT
  • M20

11 ND021850

  • ND021850 - NUT
  • M12

12 ND035944

  • ND035944 - WASHER
  • ID 20

13 ND035943

  • ND035943 - WASHER
  • ID 16

14 ND035942

  • ND035942 - WASHER
  • ID 12
