(E80) - MIDI CRAWLER EXCAVATOR ASN LF04-02346 (N5TA18048) (NA) (1/06-)
/

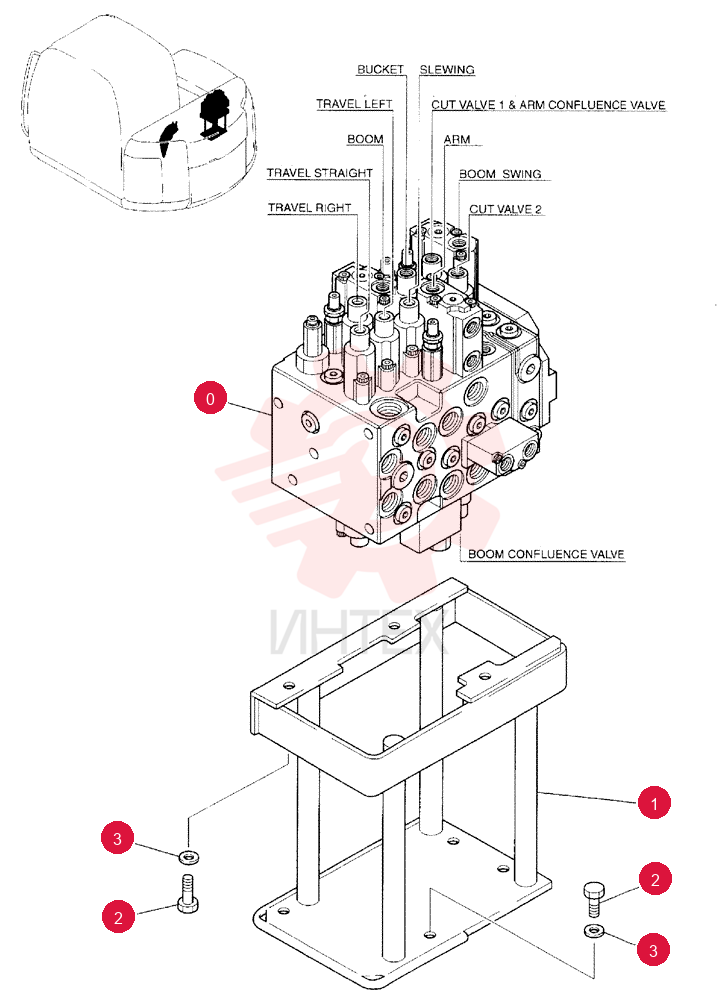

VALVE LF30V00002F1 (2)

VALVE LF30V00002F1 (2)

VALVE LF30V00002F1 (2)

1 LF30V00002F1

  • LF30V00002F1 - VALVE
  • CONTROL
  • See Figure 184

2 YT64H01058P1

  • YT64H01058P1 - BRACKET

3 ZS18C12030

  • ZS18C12030 - SCREW
  • Hex
  • M12 x 30mm

4 ZW16H12000

  • ZW16H12000 - WASHER
