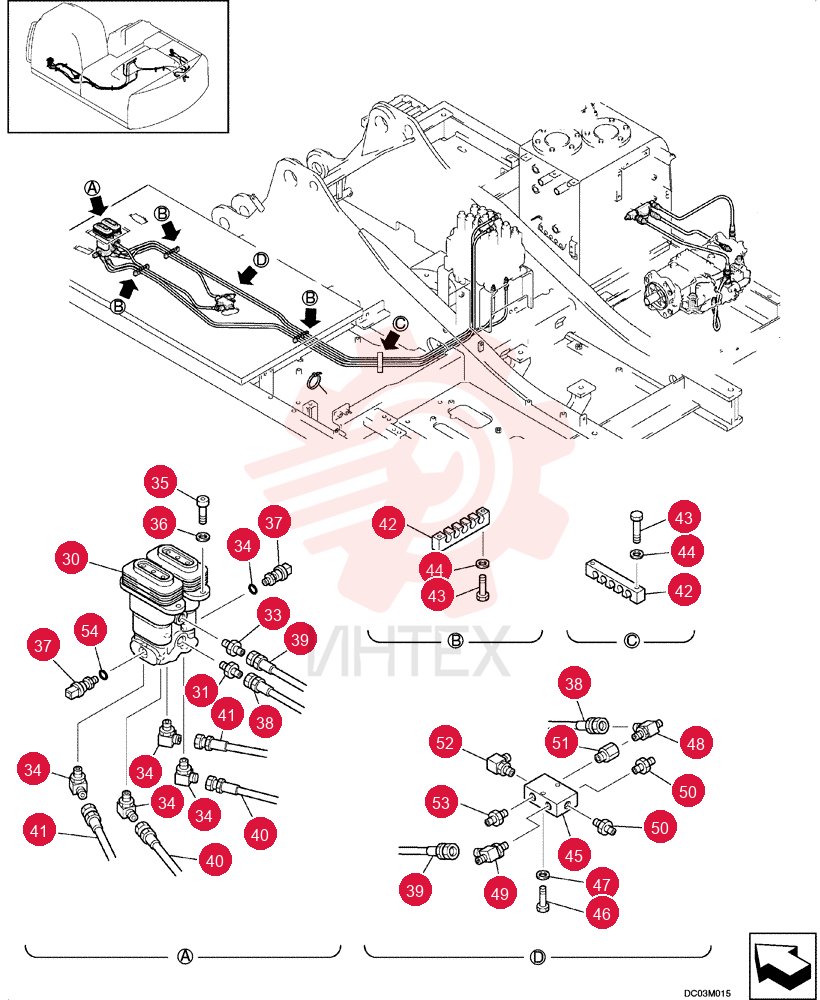

CONTROL LINES, PROPEL YN62H00019F1
1 YN62H00019F1
- YN62H00019F1 - CONTROL LINES
- PROPEL
2 YX30V00004F1
- YX30V00004F1 - VALVE
- See Figure 08 -90
3 HH25X04004G2
- HH25X04004G2 - HYD CONNECTOR
- w/fitler (PF14) Incl.54
4 ZH22X06000
- ZH22X06000 - HYD CONNECTOR
- (PF3/8) Incl. 55
5 ZH32X06000
- ZH32X06000 - 90 ELBOW
- Male
- 30° Fl
- PF 3/8" x PF 3/8"
- O-Ring
- (PF3/8) Incl. 55
6 ZS28C10025
- ZS28C10025 - SCREW
- Hex Socket Head
- M10 x 25mm
- M10 x 25mm
7 ZW16K10000
- ZW16K10000 - WASHER
- M10
8 YX52S00010P1
- YX52S00010P1 - SENSOR
- PRESS (PF1/4) Incl.54
9 2420R349D090
- 2420R349D090 - HOSE
- 6.35mm ID x 900mm L
- PF 1/4
10 2444R1119D100
- 2444R1119D100 - HOSE
- (PF3/8
- L=1000mm)
11 2420R537D300
- 2420R537D300 - HOSE
- 9.60mm ID x 3000mm L
- PF 3/8
12 2420R537D350
- 2420R537D350 - HOSE ASSY.
- 9.60mm ID x 3500mm L
- (PF3/8
- L=3500mm)
13 YN68H01035P1
- YN68H01035P1 - CLAMP
14 ZS18C08040
- ZS18C08040 - SCREW
- Hex
- M8 x 40mm
- M08x1.25x40mm
15 ZW16X08000
- ZW16X08000 - WASHER
- M8
16 YR64H01009P1
- YR64H01009P1 - BLOCK
17 ZS18C08040
- ZS18C08040 - SCREW
- Hex
- M8 x 40mm
- M08x1.25x40mm
18 ZW16H08000
- ZW16H08000 - WASHER
- ID 08 x OD 18 x Th 3.2mm
19 2444Z2336
- 2444Z2336 - HYD CONNECTOR
- (PF1/4) Incl. 54
20 2444Z2359
- 2444Z2359 - TEE
- (PF3/8)
21 ZH22X06000
- ZH22X06000 - HYD CONNECTOR
- (PF3/8) Incl. 55
22 2444T2505
- 2444T2505 - HYD CONNECTOR
- (PF1/4-PF3/8) Incl. 55
23 ZH32X06000
- ZH32X06000 - 90 ELBOW
- Male
- 30° Fl
- PF 3/8" x PF 3/8"
- O-Ring
- (PF3/8) Incl. 55
24 ZH22X04006
- ZH22X04006 - HYD CONNECTOR
- (PF1/4-PF3/8) Incl. 55
25 ZD12P01100
- ZD12P01100 - O-RING
- NOT SHOWN
26 ZD12P01400
- ZD12P01400 - O-RING
- ID 13.80 ± 0.19 x OD 18mm
- NOT SHOWN
