(FD255) - CRAWLER DOZER (N.A. VERSION) (7/95-)
/

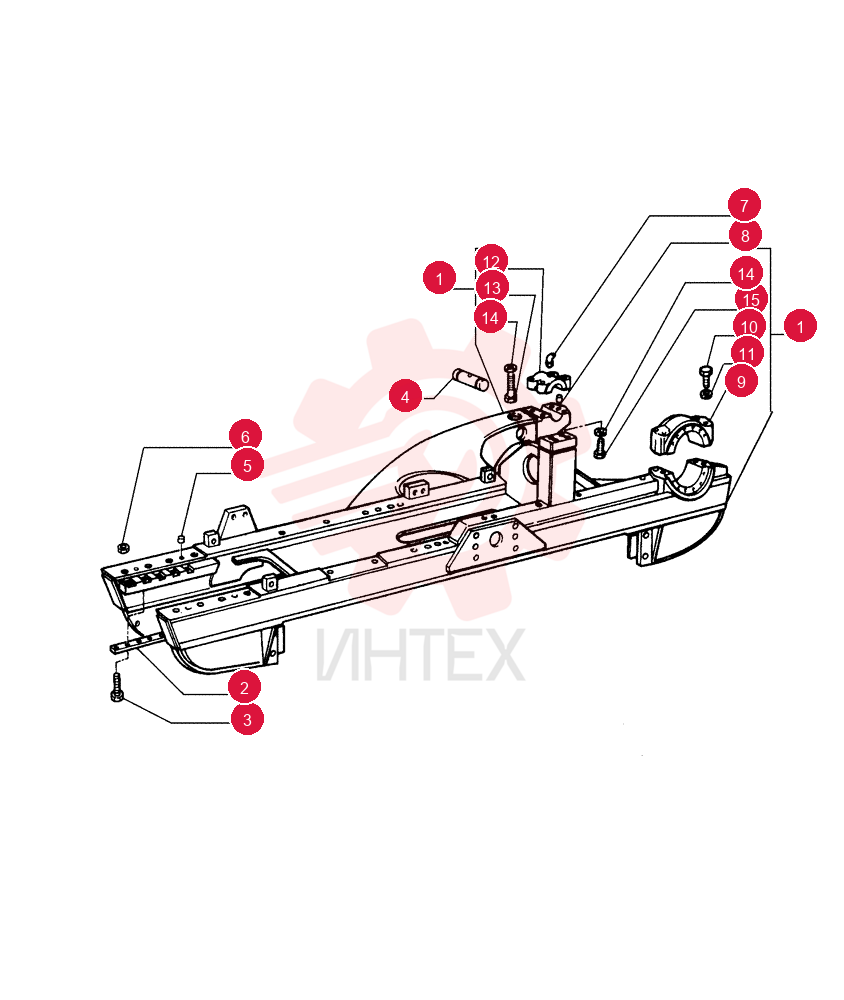

FRAME 76019556

FRAME 76019556

FRAME 76019556

1 76019556

  • 76019556 - FRAME

2 76019436

  • 76019436 - FRAME

3 79033473

  • 79033473 - GUIDE

4 79031906

  • 79031906 - SCREW

5 79004864

  • 79004864 - PIN

6 588949

  • 588949 - DOWEL

7 16105021

  • 16105021 - LOCK NUT
  • M12 x 1.25
  • Cl 10

8 13408411

  • 13408411 - LUBE NIPPLE
  • 90°
  • M10 x1

9 589561

  • 589561 - DOWEL

10 76006437

  • 76006437 - SUPPORT

11 15994037

  • 15994037 - BOLT
  • Hex
  • M22 x 1.5 x 130mm
  • Cl 10.9

12 14497231

  • 14497231 - WASHER

13 76006438

  • 76006438 - SUPPORT

14 15982537

  • 15982537 - BOLT
  • Hex
  • M16 x 1.5 x 160mm
  • Cl 10.9

15 10517271

  • 10517271 - LOCK WASHER
  • 16.2mm ID x 27.7mm OD x 4mm Thk

16 11254131

  • 11254131 - BOLT
  • Hex
  • M16 x 1.5 x 80
  • 10.9
