New Holland Construction
/
(FD255) - CRAWLER DOZER (N.A. VERSION) (7/95-)
/

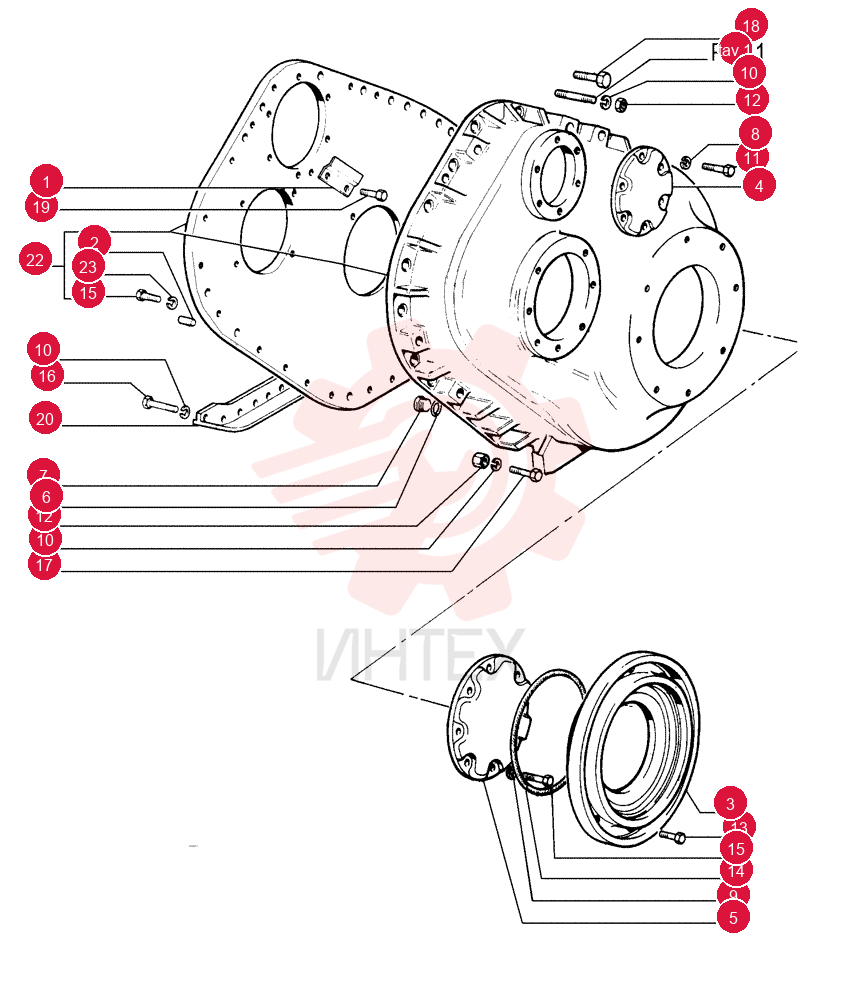

PANEL 589049

PANEL 589049

PANEL 589049

1 589049

  • 589049 - PANEL

2 589197

  • 589197 - DOWEL

3 4967879

  • 4967879 - COVER

4 4976570

  • 4976570 - COVER

5 4976572

  • 4976572 - COVER

6 10245785

  • 10245785 - WASHER
  • M22.3 x 28 x 1.5
  • Copper

7 10275040

  • 10275040 - PLUG

8 14496631

  • 14496631 - WASHER
  • 10.5mm ID x 21mm OD x 2mm Thk

9 14496731

  • 14496731 - WASHER
  • M12 x 24 x 2.5 Thk

10 14496931

  • 14496931 - WASHER
  • 17mm ID x 30mm OD x 3mm Thk

11 11306931

  • 11306931 - BOLT
  • Hex
  • M10 x 1.25 x 30
  • 10.9
  • Full Thd

12 12164121

  • 12164121 - NUT
  • M16 x 1.5
  • Cl 10

13 14469680

  • 14469680 - O-RING
  • 0.139" Thk x 11.984" ID
  • -278
  • Cl 5
  • 75 Duro

14 15540431

  • 15540431 - SCREW
  • Hex
  • M12 x 1.25 x 30mm
  • Cl 10.9
  • Full Thd

15 15846431

  • 15846431 - BOLT
  • Hex
  • M16 x 1.5 x 95mm
  • Cl 10.9

16 15981431

  • 15981431 - BOLT
  • Hex
  • M16 x 1.5 x 85mm
  • Cl 10.9

17 15981531

  • 15981531 - BOLT
  • Hex
  • M16 x 1.5 x 90mm
  • Cl 10.9

18 16042931

  • 16042931 - BOLT
  • Hex
  • M8 x 1.25 x 10mm
  • Cl 10.9
  • Full Thd

19 76003061

  • 76003061 - GUARD

20 76003309

  • 76003309 - GUARD

21 79031374

  • 79031374 - BOX

22 79031373

  • 79031373 - CASE

23 10517071

  • 10517071 - LOCK WASHER
  • 12.2mm ID x 21.1mm OD x 3.1mm Thk

24 14274631

  • 14274631 - LOCK BOLT
  • Hex
  • M12 x 1.25 x 35mm
  • Cl 10.9
