New Holland Construction
/
(FD30B) - CRAWLER DOZER
/

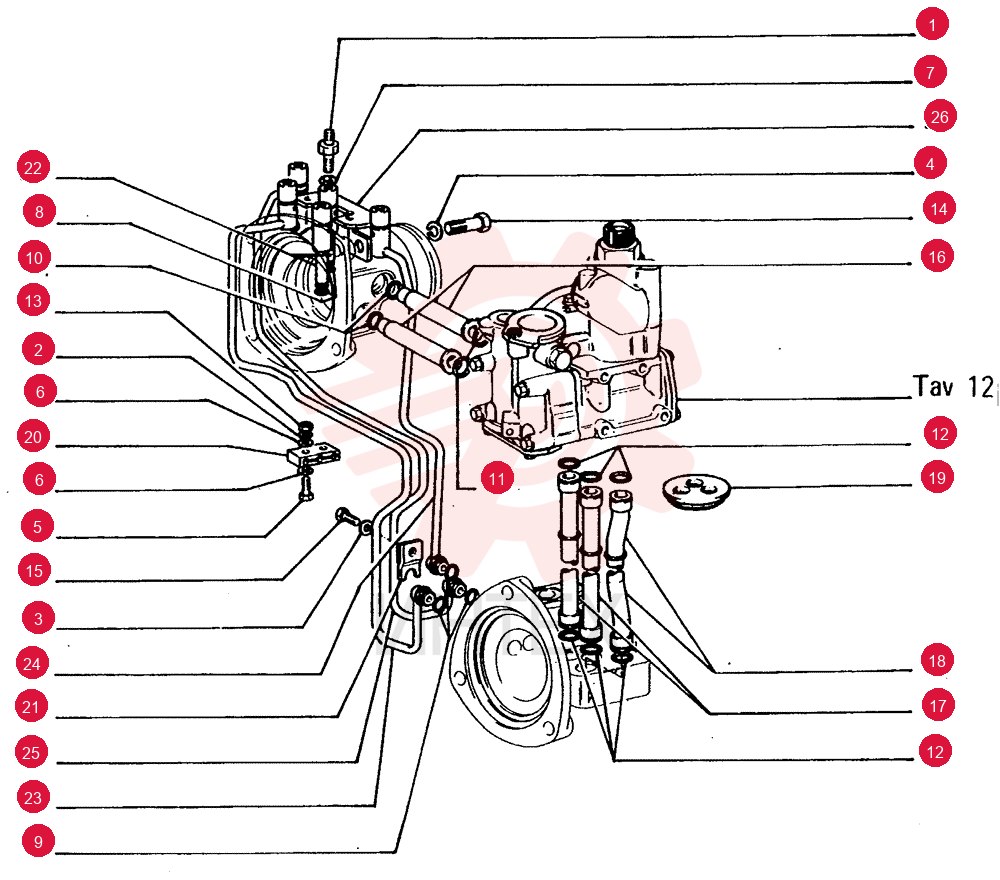

HYD CONNECTOR 79050621 (2)

HYD CONNECTOR 79050621 (2)

HYD CONNECTOR 79050621 (2)

1 79050621

  • 79050621 - HYD CONNECTOR

2 10571571

  • 10571571 - LOCK WASHER
  • M6

3 10571771

  • 10571771 - LOCK WASHER
  • M8

4 10571871

  • 10571871 - LOCK WASHER
  • 10.2mm ID x 18.1mm OD x 2.2mm Thk

5 10902421

  • 10902421 - SCREW
  • Hex
  • M6 x 20mm
  • Cl 8.8

6 12644401

  • 12644401 - WASHER
  • 6.15mm ID x 15mm OD x 1mm Thk

7 2852057

  • 2852057 - SEALING WASHER
  • M8 x 12 x 1 Thk

8 14452781

  • 14452781 - O-RING
  • 6.07mm ID x 1.78" Width

9 14453081

  • 14453081 - O-RING
  • 0.07" Thk x 0.426" ID
  • -13
  • Cl 7
  • 75 Duro

10 14457181

  • 14457181 - O-RING
  • 13.94mm ID x 2.62" Width

11 5135738

  • 5135738 - O-RING
  • 0.103" Thk x 0.674" ID
  • -115
  • 80 Duro

12 15896219

  • 15896219 - NUT

13 15970531

  • 15970531 - BOLT
  • Hex
  • M10 x 1.25 x 20mm
  • Cl 10.9
  • Full Thd

14 16043331

  • 16043331 - SCREW
  • Hex
  • M8 x 1.25 x 18mm
  • Cl 10.9
  • Full Thd

15 79003553

  • 79003553 - RIGID TUBE
  • 12 mm ID
  • 16 mm OD
  • 110 mm Length

16 79009829

  • 79009829 - RIGID TUBE
  • 184 mm Length

17 79009831

  • 79009831 - RIGID TUBE
  • 184 mm Length

18 79009833

  • 79009833 - PLUG

19 79012170

  • 79012170 - BRACKET

20 76069099

  • 76069099 - BRACKET

21 79030985

  • 79030985 - HYD CONNECTOR

22 79030987

  • 79030987 - RIGID TUBE
  • 315
  • 166 mm Length

23 79030988

  • 79030988 - RIGID TUBE
  • 315
  • 88 mm Length

24 79030989

  • 79030989 - RIGID TUBE
  • 315
  • 190 mm Length

25 79030990

  • 79030990 - BRACKET

26 14457081

  • 14457081 - O-RING
  • 12.37mm ID x 2.62mm
