New Holland Construction
/
(FD30B) - CRAWLER DOZER
/

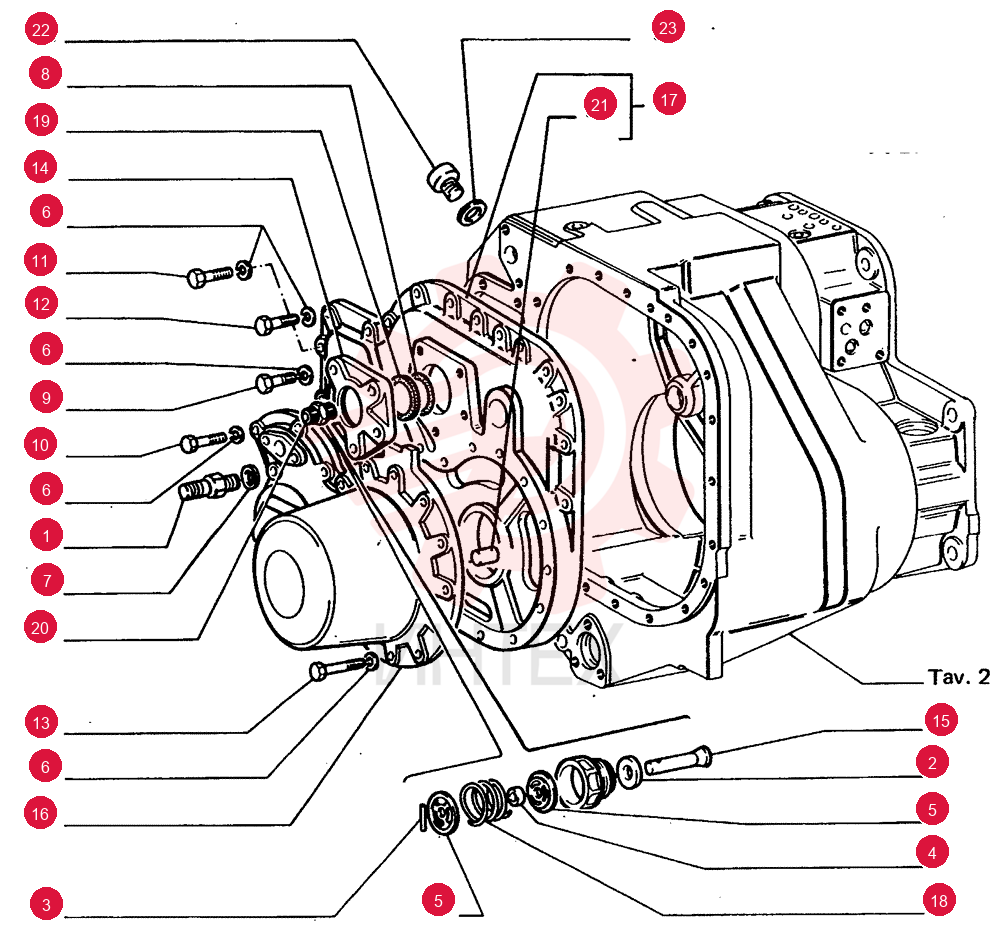

HYD CONNECTOR 79050621 (1)

HYD CONNECTOR 79050621 (1)

HYD CONNECTOR 79050621 (1)

1 79050621

  • 79050621 - HYD CONNECTOR

2 591390

  • 591390 - WASHER
  • 6mm ID x 22mm OD x 3mm Thk

3 591391

  • 591391 - PIN

4 591392

  • 591392 - SPACER

5 591393

  • 591393 - CUP WASHER

6 10571971

  • 10571971 - LOCK WASHER

7 2852057

  • 2852057 - SEALING WASHER
  • M8 x 12 x 1 Thk

8 14467680

  • 14467680 - O-RING
  • 0.139" Thk x 5.984" ID
  • -258
  • Cl 5
  • 75 Duro

9 15540431

  • 15540431 - SCREW
  • Hex
  • M12 x 1.25 x 30mm
  • Cl 10.9
  • Full Thd

10 15540531

  • 15540531 - SCREW
  • Hex
  • M12 x 1.25 x 35mm
  • Cl 10.9
  • Full Thd

11 15540731

  • 15540731 - SCREW
  • Hex
  • M12 x 1.25 x 45mm
  • Cl 10.9

12 15541731

  • 15541731 - BOLT
  • Hex
  • M12 x 1.25 x 110mm
  • Cl 10.9

13 15542031

  • 15542031 - BOLT
  • Hex
  • M12 x 1.25 x 140mm
  • Cl 10.9

14 79003198

  • 79003198 - SUPPORT

15 79003533

  • 79003533 - PIN

16 79009022

  • 79009022 - COVER

17 79016905

  • 79016905 - COVER

18 79012806

  • 79012806 - SPRING

19 40000150

  • 40000150 - SEAL
  • 90mm ID x 120mm OD x 12mm Thk

20 79027595

  • 79027595 - SAFETY VALVE

21 10839910

  • 10839910 - DOWEL
  • 15mm OD x 20mm L

22 10276470

  • 10276470 - PLUG

23 10265160

  • 10265160 - SEALING WASHER
  • 35.4mm ID x 41mm OD x 1.5mm Thk
