(FR120.2) - WHEEL LOADER (N.A. VERSION) (9/98-)
/

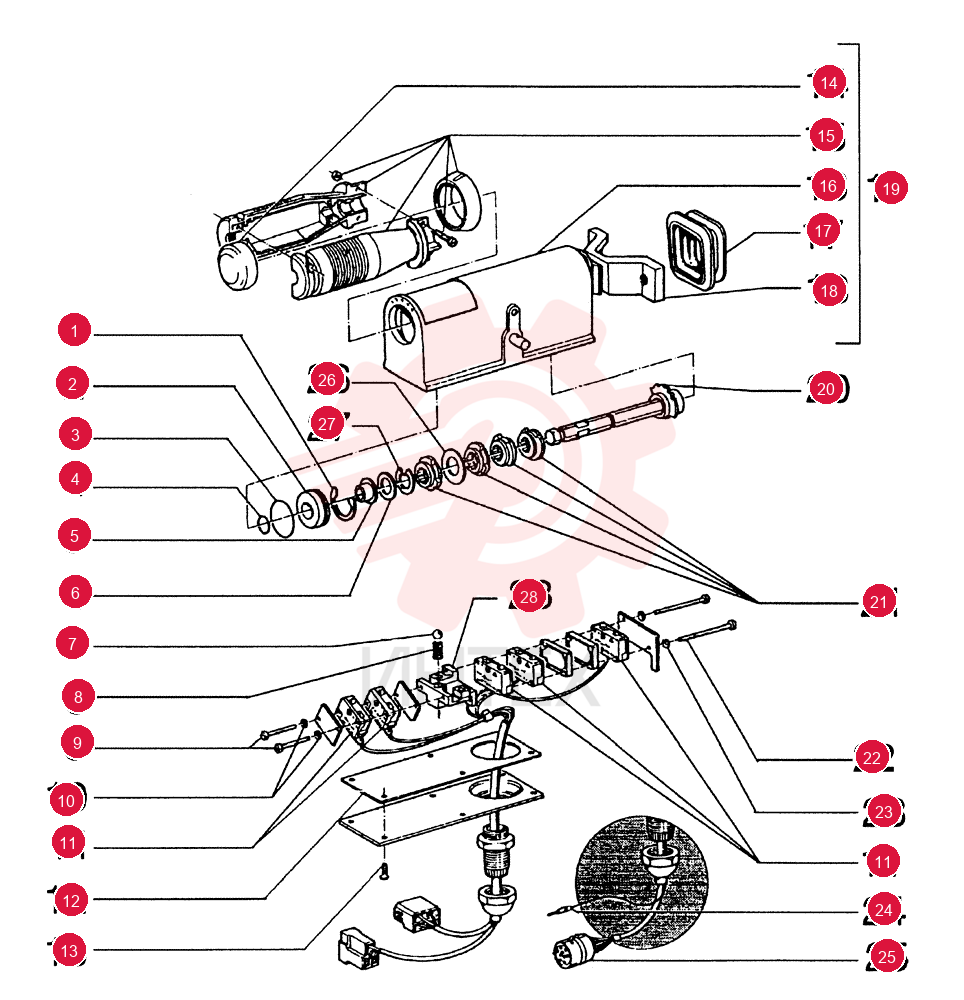

SNAP RING 75310802

SNAP RING 75310802

SNAP RING 75310802

1 75310802

  • 75310802 - SNAP RING

2 75310801

  • 75310801 - COVER

3 75310800

  • 75310800 - O-RING

4 75310799

  • 75310799 - O-RING

5 75310803

  • 75310803 - SPACER

6 75310804

  • 75310804 - WASHER

7 75310810

  • 75310810 - BALL

8 75310809

  • 75310809 - SPRING

9 75310813

  • 75310813 - SCREW

10 75310814

  • 75310814 - WASHER

11 75310812

  • 75310812 - SWITCH

12 75310816

  • 75310816 - GASKET

13 75310817

  • 75310817 - SCREW

14 75310842

  • 75310842 - COVER

15 75310795

  • 75310795 - HANDLE

16 75310798

  • 75310798 - CASE

17 75310796

  • 75310796 - CAP

18 75310797

  • 75310797 - SUPPORT

19 75311041

  • 75311041 - HANDLE

20 75239663R

  • 75239663R - REMAN-JOYSTICK

21 75239663C

  • 75239663C - CORE-JOYSTICK

22 75310808

  • 75310808 - SHAFT

23 75310807

  • 75310807 - CAM

24 75310815

  • 75310815 - SCREW

25 75310814

  • 75310814 - WASHER

26 75310818

  • 75310818 - ELEC CONNECTOR

27 75310819

  • 75310819 - HYD CONNECTOR

28 75310806

  • 75310806 - WASHER

29 75310805

  • 75310805 - SNAP RING

30 75310811

  • 75310811 - BLOCK
