(FR120.2) - WHEEL LOADER (N.A. VERSION) (9/98-)
/

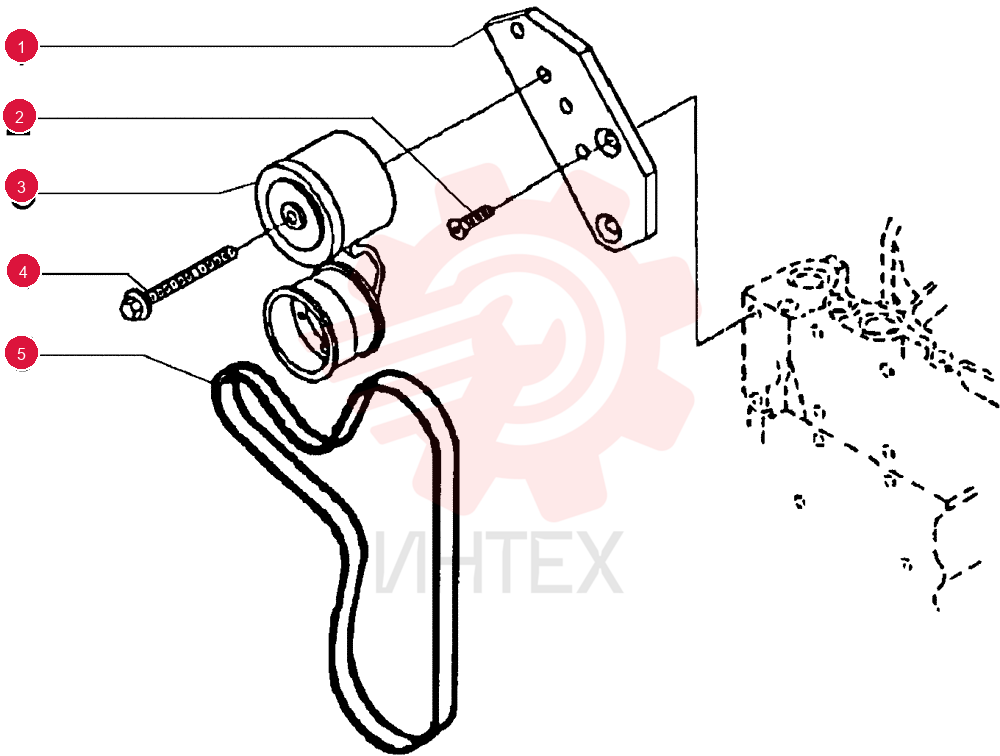

SUPPORT 75287933

SUPPORT 75287933

SUPPORT 75287933

1 75287933

  • 75287933 - SUPPORT

2 75208256

  • 75208256 - SCREW

3 75286363

  • 75286363 - BELT TENSIONER

4 75208287

  • 75208287 - SCREW

5 75287934

  • 75287934 - BELT
  • TRANSMISSION
