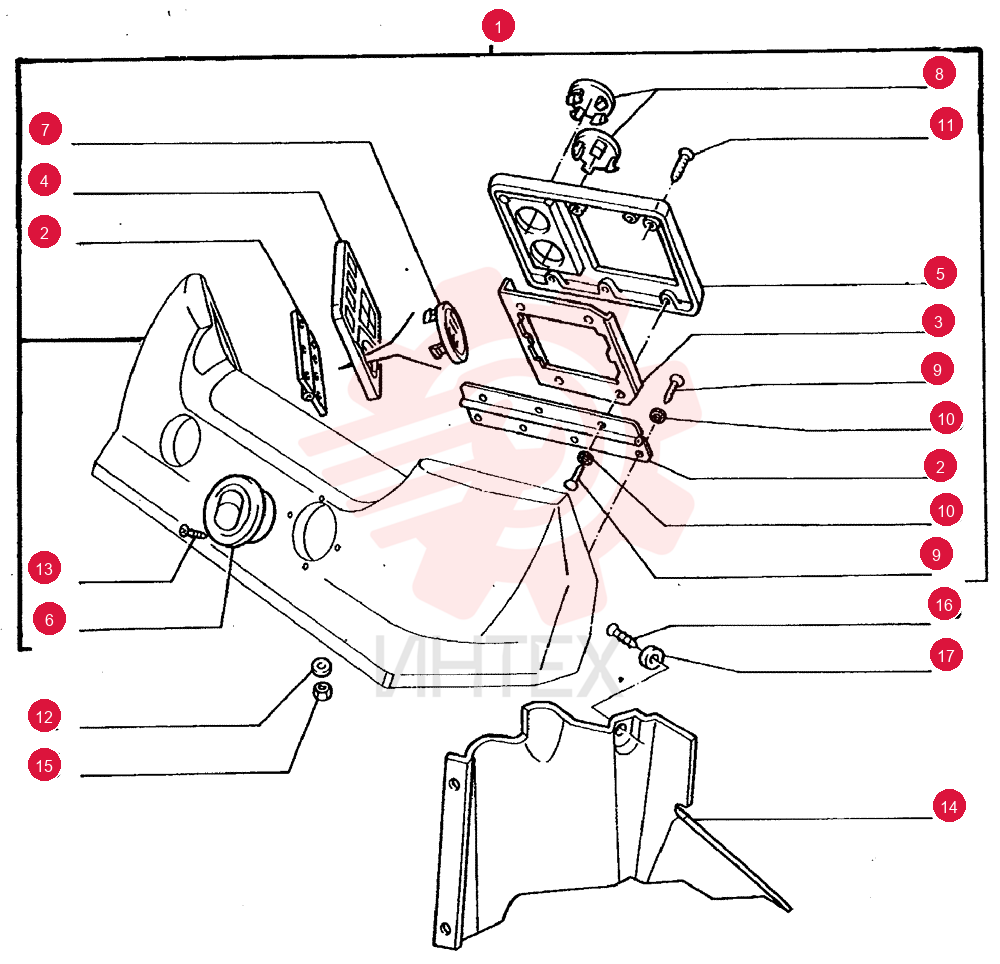

INSTRUMENT PANEL 79102768

INSTRUMENT PANEL 79102768

INSTRUMENT PANEL 79102768

1 79102768

  • 79102768 - INSTRUMENT PANEL

2 79099202

  • 79099202 - HINGE

3 79099678

  • 79099678 - PLATE

4 79099210

  • 79099210 - INSTRUMENT PANEL

5 79099209

  • 79099209 - INSTRUMENT PANEL

6 79087844

  • 79087844 - DIFFUSER

7 79102000

  • 79102000 - PLUG

8 79102755

  • 79102755 - PLUG

9 13271817

  • 13271817 - SCREW
  • Pozidriv Pan Hd
  • M4 x 8mm
  • Cl 5.8
  • Full Thd

10 12605179

  • 12605179 - LOCK WASHER
  • Int Tooth
  • M4

11 13300017

  • 13300017 - SCREW

12 12647031

  • 12647031 - WASHER

13 15915807

  • 15915807 - SELF-TAP SCREW
  • Cross Flat Hd
  • M3.5 x 13

14 79099211

  • 79099211 - GUARD

15 16104121

  • 16104121 - NUT
  • M8 x 1.25
  • Cl 10

16 79106196

  • 79106196 - SCREW
  • M6 x 16mm

17 79103293

  • 79103293 - WASHER
