(FR130) - WHEEL LOADER
/

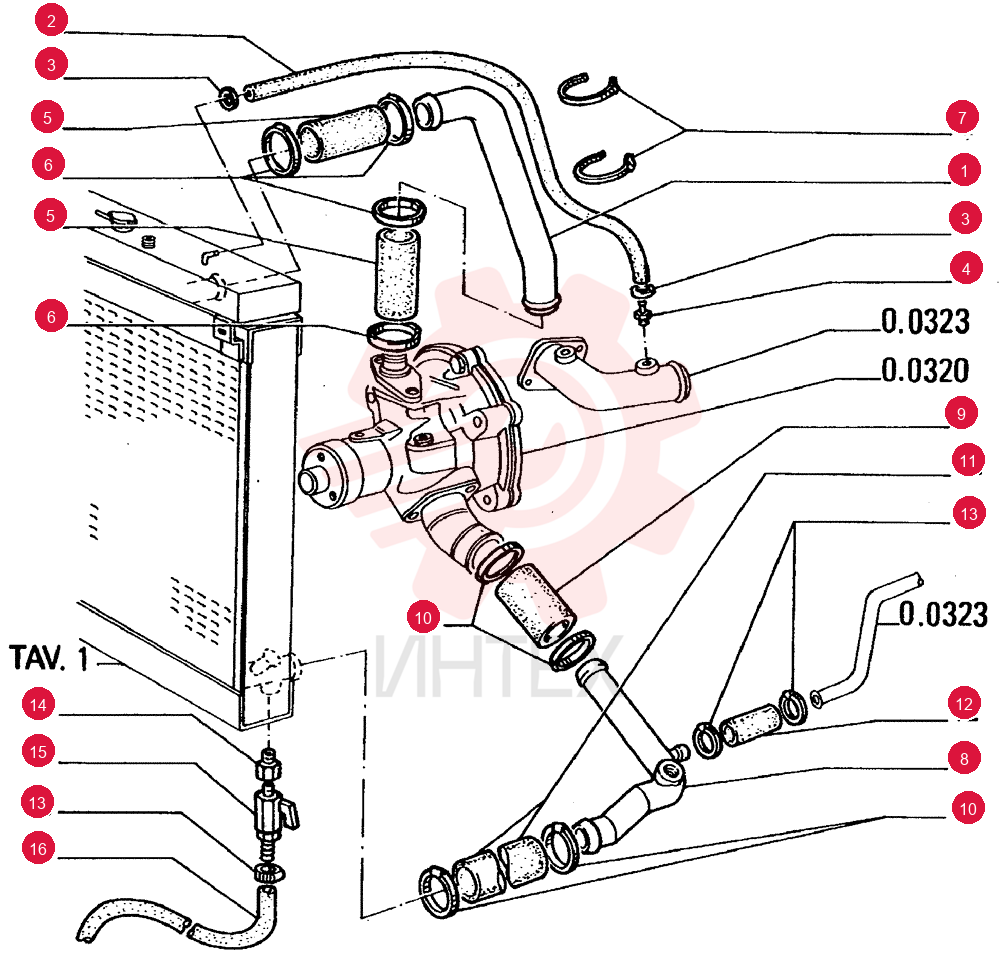

RIGID TUBE 79103855

RIGID TUBE 79103855

RIGID TUBE 79103855

1 79103855

  • 79103855 - RIGID TUBE

2 78100213

  • 78100213 - HOSE

3 79084753

  • 79084753 - HOSE CLIP
  • M10-18

4 79110527

  • 79110527 - HYD CONNECTOR

5 78100233

  • 78100233 - HOSE

6 79083846

  • 79083846 - HOSE CLAMP
  • M40-60

7 4982514

  • 4982514 - CABLE TIE

8 79103814

  • 79103814 - RIGID TUBE

9 78100222

  • 78100222 - HOSE

10 79083845

  • 79083845 - HOSE CLAMP
  • 32mm - 50mm
  • Worm Gear

11 78100222

  • 78100222 - HOSE

12 78100219

  • 78100219 - HOSE

13 79083842

  • 79083842 - HOSE CLAMP
  • M16-27

14 79075331

  • 79075331 - HYD CONNECTOR

15 76014887

  • 76014887 - DRAINCOCK/TAP SUPPLY
  • 3/8"

16 78100215

  • 78100215 - HOSE
