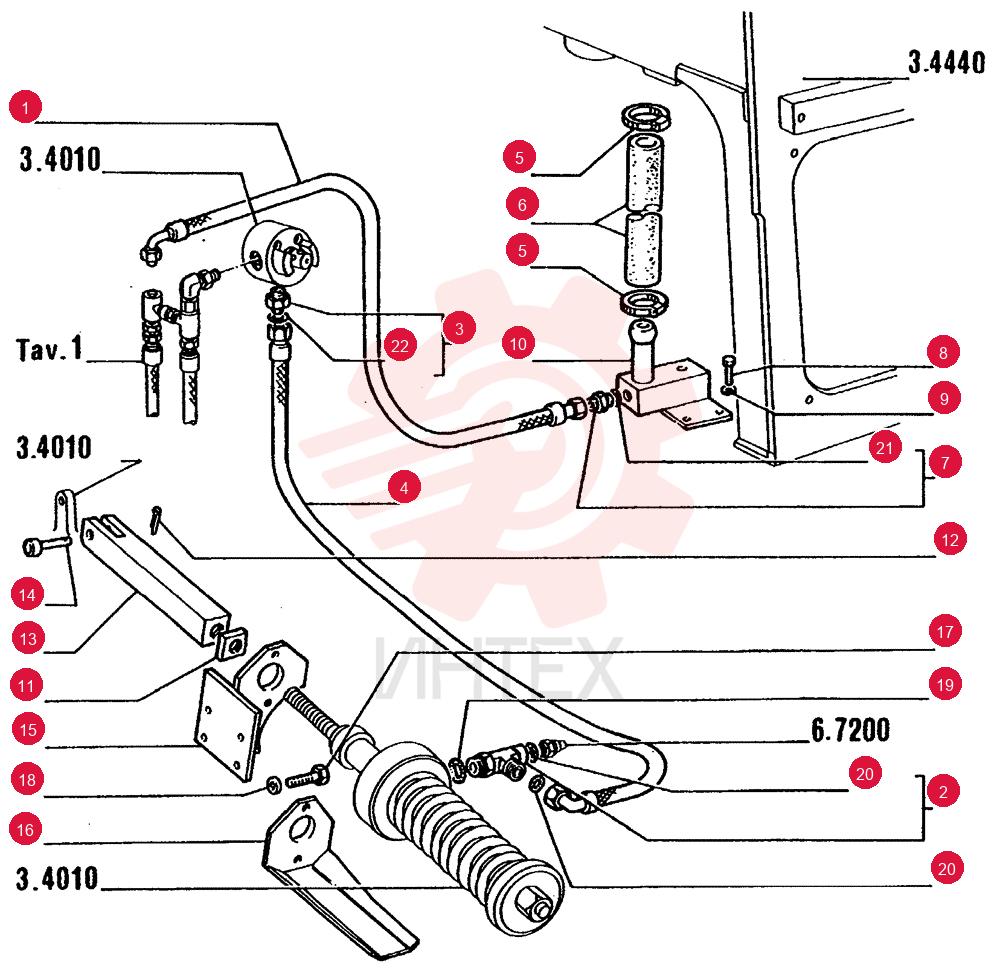

FLEXIBLE HOSE 79102242
1 79102242
- 79102242 - FLEXIBLE HOSE
2 79100691
- 79100691 - TEE
- 11/16" - 16 ORFS x M14 x 1.5 ORB x M10 x 1 JIC
3 79100694
- 79100694 - HYD CONNECTOR
4 79096544
- 79096544 - FLEXIBLE HOSE
5 79083845
- 79083845 - HOSE CLAMP
- 32mm - 50mm
- Worm Gear
6 78100231
- 78100231 - FLEXIBLE HOSE
7 79066940
- 79066940 - HYD CONNECTOR
8 16043431
- 16043431 - SCREW
- Hex
- M8 x 1.25 x 20mm
- Cl 10.9
- Full Thd
9 12645031
- 12645031 - WASHER
- 8.45mm ID x 21mm OD x 3mm Thk
10 79110024
- 79110024 - FIXING PLATE
11 79090612
- 79090612 - NUT
12 10733601
- 10733601 - COTTER PIN
- M3.2 x 22
13 79090576
- 79090576 - YOKE
14 10005170
- 10005170 - PIN
15 79096557
- 79096557 - BRACKET
16 79096559
- 79096559 - GUARD
17 11112431
- 11112431 - SCREW
- Hex
- M12 x 30mm
- Cl 10.9
- Full Thd
18 14496731
- 14496731 - WASHER
- M12 x 24 x 2.5 Thk
19 14437785
- 14437785 - O-RING
- 11.3mm ID x 2.4mm
20 70924048
- 70924048 - O-RING
- 0.07" Thk x 0.364" ID
- -12
- Cl 6
- 90 Duro
21 70923841
- 70923841 - O-RING
- 0.07" Thk x 0.489" ID
- -14
- Cl 6
- 90 Duro
22 14437885
- 14437885 - O-RING
- 13.30mm ID x 2.40mm
