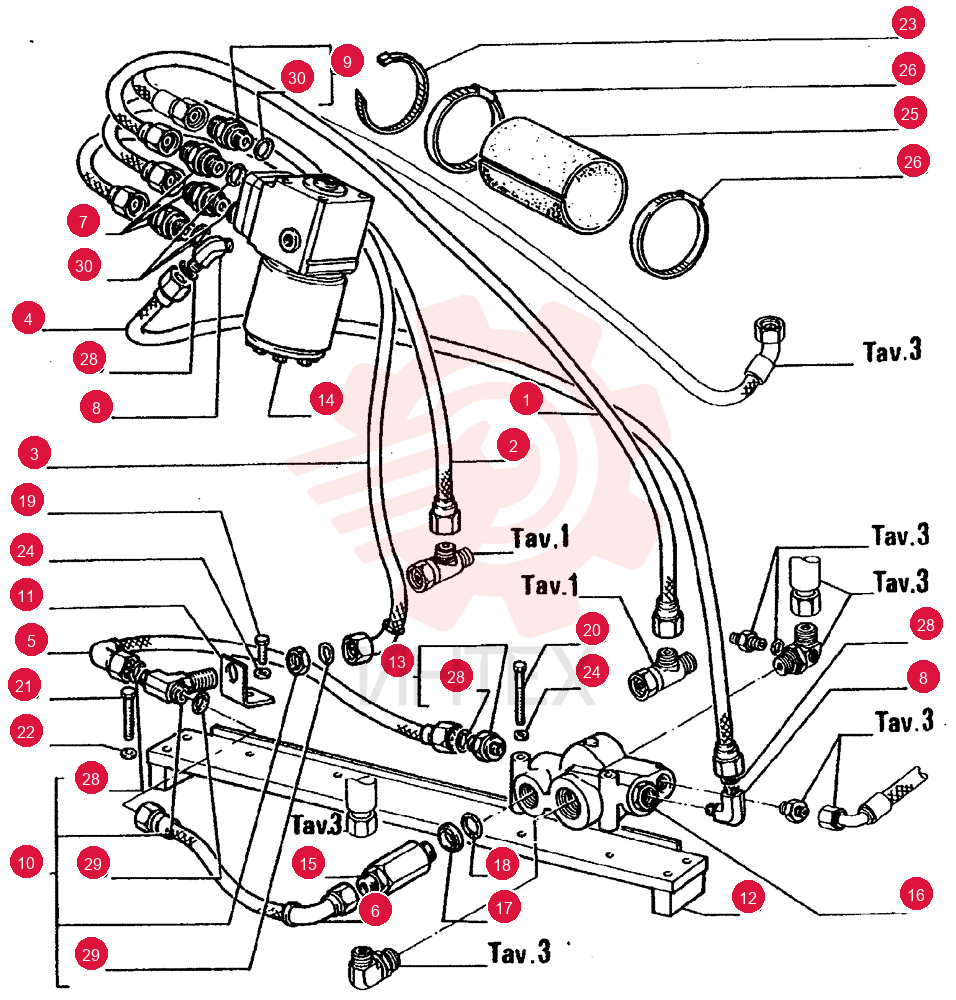

FLEXIBLE HOSE 79104846
1 79104846
- 79104846 - FLEXIBLE HOSE
2 79104847
- 79104847 - FLEXIBLE HOSE
3 79102529
- 79102529 - FLEXIBLE HOSE
4 79102530
- 79102530 - FLEXIBLE HOSE
5 79109077
- 79109077 - FLEXIBLE HOSE
6 79102534
- 79102534 - FLEXIBLE HOSE
7 79112053
- 79112053 - HYD CONNECTOR
8 79112052
- 79112052 - HYD CONNECTOR
9 79094094
- 79094094 - HYD CONNECTOR
10 79112047
- 79112047 - HYD CONNECTOR
11 79102449
- 79102449 - CLIP
12 79096886
- 79096886 - SUPPORT
13 79094722
- 79094722 - HYD CONNECTOR
14 79090470
- 79090470 - HYDRAULIC STEERING
15 79112678
- 79112678 - HYDRAULIC VALVE
16 79090997
- 79090997 - HYDRAULIC VALVE
17 79028876
- 79028876 - SEAL
- 21.5mm ID x 28.7mm OD x 2.5mm Thk
18 70923841
- 70923841 - O-RING
- 0.07" Thk x 0.489" ID
- -14
- Cl 6
- 90 Duro
19 16043431
- 16043431 - SCREW
- Hex
- M8 x 1.25 x 20mm
- Cl 10.9
- Full Thd
20 16044831
- 16044831 - SCREW
- Hex
- M8 x 80mm
- Cl 10.9
21 11106631
- 11106631 - SCREW
- Hex
- M10 x 35mm
- Cl 10.9
- Full Thd
22 12626231
- 12626231 - WASHER
- 10.2mm ID x 25mm OD x 3mm Thk
23 4982514
- 4982514 - CABLE TIE
24 14496531
- 14496531 - WASHER
- 8.4mm ID x 17mm OD x 1.6mm Thk
25 79106012
- 79106012 - HOSE
- 79.00 mm ID x 120.00 mm
26 71404504
- 71404504 - CLAMP
- #76
- 3.25"-3.56"
- T-Bolt
27 70924048
- 70924048 - O-RING
- 0.07" Thk x 0.364" ID
- -12
- Cl 6
- 90 Duro
28 70923841
- 70923841 - O-RING
- 0.07" Thk x 0.489" ID
- -14
- Cl 6
- 90 Duro
29 70930357
- 70930357 - O-RING
- 0.07" Thk x 0.614" ID
- -16
- Cl 6
- 90 Duro
