(LB110) - BACKHOE LOADER UPGRADE 2000 (9/00-)
/

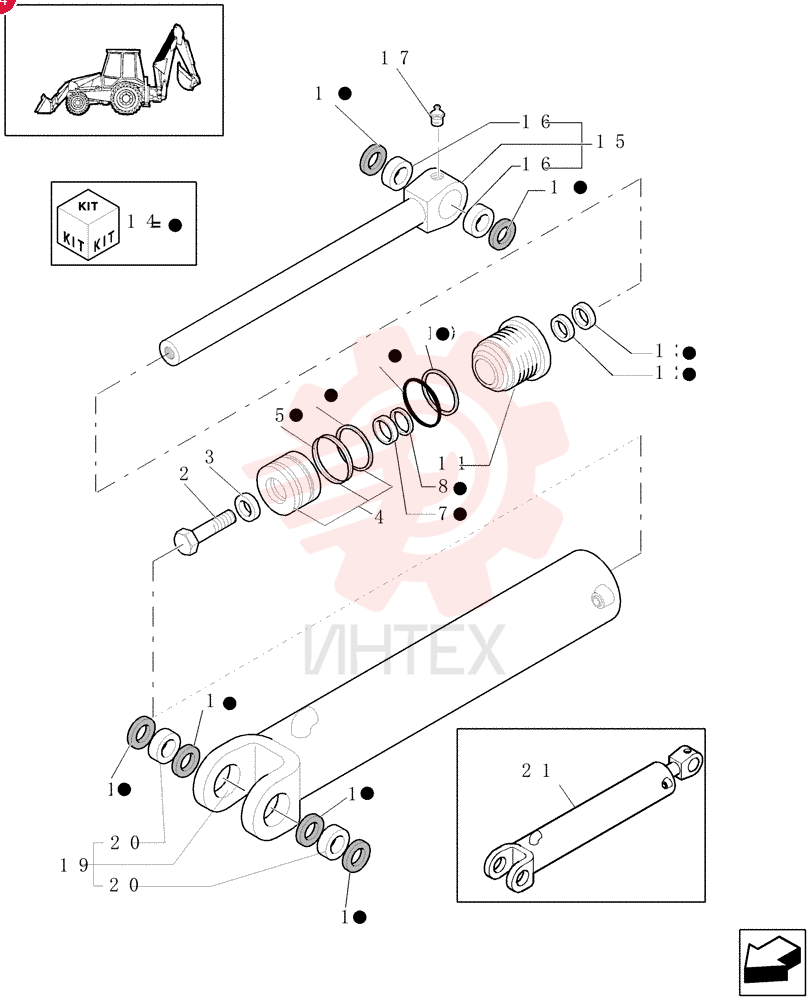

SEAL PROTECTION D9NNC513CA

SEAL PROTECTION D9NNC513CA

SEAL PROTECTION D9NNC513CA

1 D9NNC513CA

  • D9NNC513CA - SEAL PROTECTION
  • D=55 mm

2 E8NNA156AB

  • E8NNA156AB - BOLT
  • Hex
  • M33 x 2 x 90mm
  • Cl 10.9

3 E8NN337AA

  • E8NN337AA - WASHER

4 85800983

  • 85800983 - PISTON
  • Includes 5
  • 6

5 83931383

  • 83931383 - SEALING RING

6 85800962

  • 85800962 - EXPANDER
  • Square
  • 5.28mm Thk x 100.58mm ID
  • 90 Duro
  • Expander

7 85800095

  • 85800095 - WEAR RING
  • 63mm ID x 69.36mm OD x 19.05mm Thk

8 87087S95

  • 87087S95 - SEAL

9 85800005

  • 85800005 - BACK-UP RING
  • 108.46mm ID x 113.94mm OD x 1.27mm Thk

10 85800991

  • 85800991 - GLAND
  • 115.13mm Bore
  • 63.02mm Rod
  • 76.5mm W

11 85800088

  • 85800088 - SEAL
  • 58.99mm ID x 78.03mm OD x 10.9mm Thk
  • SEALRING

12 85800084

  • 85800084 - WIPER SEAL

13 85819350

  • 85819350 - SEAL KIT

14 85800971

  • 85800971 - ROD
  • Includes 16

15 D7NNC512G

  • D7NNC512G - BUSHING

16 87901S8

  • 87901S8 - LUBE NIPPLE
  • 1/8"-27 X .66" lg

17 D9NNC513BA

  • D9NNC513BA - SEAL
  • M45 x 55 x 3.18

18 85800970

  • 85800970 - BARREL
  • Includes 20

19 D7NNC512D

  • D7NNC512D - BUSHING

20 85800940

  • 85800940 - CYLINDER
  • Crowd

21 87315531R

  • 87315531R - REMAN-HYD CYLINDER
  • Reman for New PN 85800940

22 87315531C

  • 87315531C - CORE-HYD CYLINDER
  • Return Number
