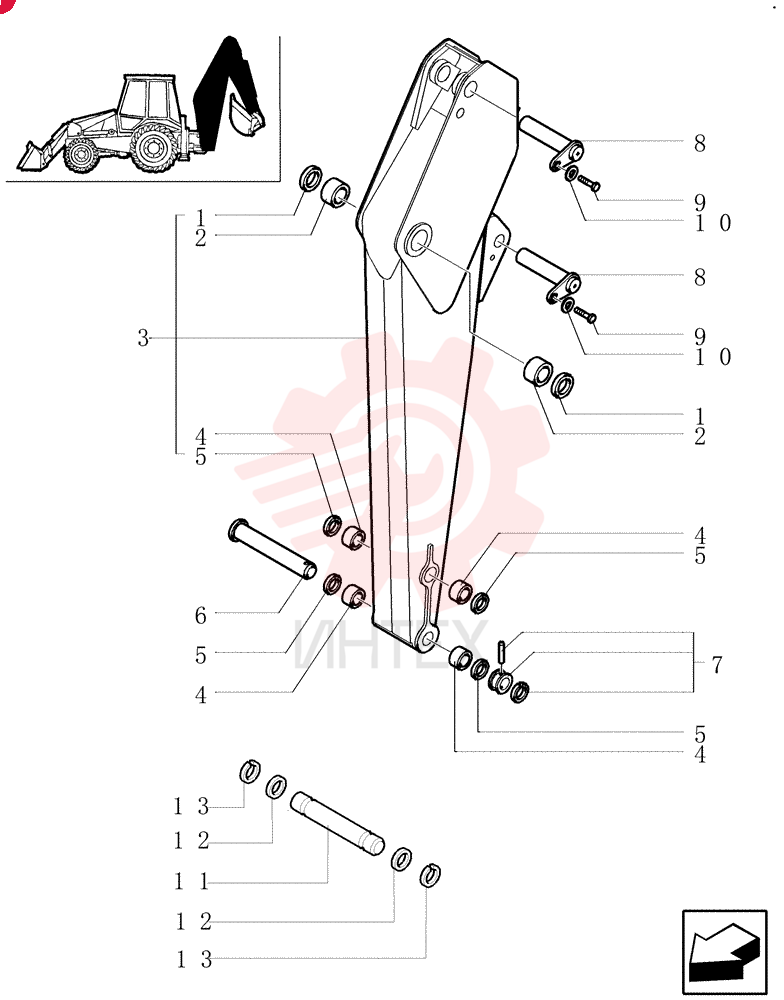

(LB110) - BACKHOE LOADER UPGRADE 2000 (9/00-)
/
SEAL 9824067

SEAL 9824067

SEAL 9824067

1 9824067

  • 9824067 - SEAL

2 D7NNC512F

  • D7NNC512F - BUSHING
  • 2.175" ID x 2.80" OD x 1.969"

3 85817040

  • 85817040 - ARM

4 D7NNC512H

  • D7NNC512H - BUSHING

5 D9NNC513BA

  • D9NNC513BA - SEAL
  • M45 x 55 x 3.18

6 85803005

  • 85803005 - PIN
  • 45mm OD x 319mm L

7 85802975

  • 85802975 - LINCH PIN
  • 10mm OD x 64.5mm L
  • 45 x 65 x 9

8 85803002

  • 85803002 - PIN
  • 45mm OD x 199mm L

9 85802397

  • 85802397 - BOLT
  • Hex
  • M16 x 40mm
  • Cl 12.9
  • M16 x 40

10 85802396

  • 85802396 - WASHER
  • 16.76mm ID x 38.1mm OD x 6.35mm Thk

11 86992966

  • 86992966 - PIN
  • 45mm OD x 316mm L

12 D7NNC622C

  • D7NNC622C - SPACER
  • M45 ID x 66 OD x 3

13 11069071

  • 11069071 - SNAP RING
  • M45
  • Ext
