New Holland Construction
/
(LB110) - BACKHOE LOADER UPGRADE 2000 (9/00-)
/

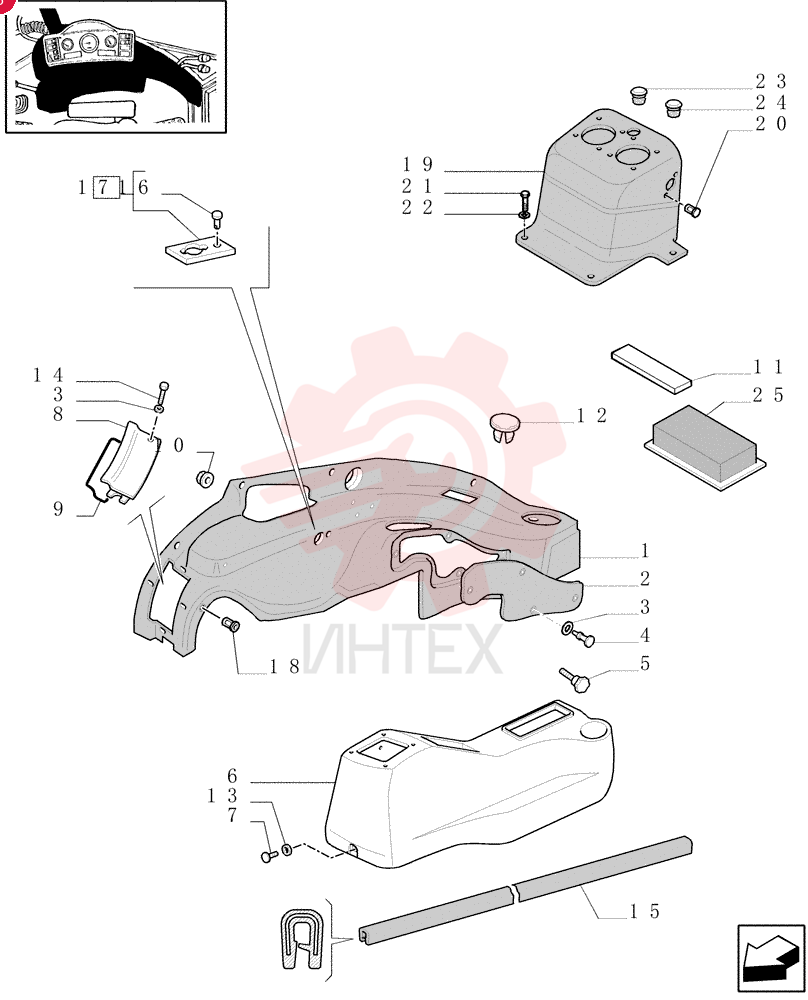

SOFT TRIM 85819365

SOFT TRIM 85819365

SOFT TRIM 85819365

1 85819365

  • 85819365 - SOFT TRIM
  • RH
  • Includes 2
  • 8
  • 18

2 85821320

  • 85821320 - SOFT TRIM

3 85801649

  • 85801649 - SOFT TRIM

4 85801991

  • 85801991 - WASHER
  • 6.3mm OD x 18mm ID x 4mm Thk

5 13311217

  • 13311217 - SCREW
  • Pozidriv Oval Hd
  • Csk
  • M5 x 20mm
  • Cl 5.8
  • Full Thd

6 85805323

  • 85805323 - KNOB
  • M5

7 85805803

  • 85805803 - UTILITY HOLDER

8 79105220

  • 79105220 - SCREW
  • Phillips Drive
  • Oval HD
  • M6 x 20mm

9 85806057

  • 85806057 - COVER
  • Fuse Panel

10 85806023

  • 85806023 - SEALING STRIP

11 14084814

  • 14084814 - FLANGE NUT
  • M8 x 1.25
  • Flg

12 85805308

  • 85805308 - SEAL
  • 20mm W x 200mm L x 5mm Thk

13 79111815

  • 79111815 - PLUG
  • 14-15mm OD

14 79089592

  • 79089592 - WASHER
  • 6mm ID x 24mm OD x 5mm Thk
  • D=24

15 13311017

  • 13311017 - SCREW
  • Pozidriv Oval Hd
  • Csk
  • M5 x 16mm
  • Cl 5.8
  • Full Thd

16 85812081

  • 85812081 - RUBBER STRIP

17 10427200

  • 10427200 - RIVET
  • Flat Hd
  • M4 x 5

18 85827548

  • 85827548 - PLATE

19 85804750

  • 85804750 - THREADED BUSHING
  • M5 x 9.7mm OD x 20mm L
  • M5

20 85816763

  • 85816763 - BLISTER
  • Includes 20

21 85802259

  • 85802259 - THREADED BUSHING
  • M4 x 9.7mm OD x 20mm L

22 120104

  • 120104 - BOLT
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 8.8

23 14441521

  • 14441521 - SCREW
  • Flat Csk Hd
  • M6 x 25mm
  • Cl 8.8

24 11193974

  • 11193974 - BELLEVILLE WASHER
  • M8 Bolt Size x 22mm OD x 1.5mm Thk

25 79111978

  • 79111978 - PLUG
  • 23mm OD
  • D=23

26 82001909

  • 82001909 - PLUG
  • 33mm OD
  • D=28

27 4999021

  • 4999021 - GASKET
