New Holland Construction
/
(LB110) - BACKHOE LOADER UPGRADE 2000 (9/00-)
/

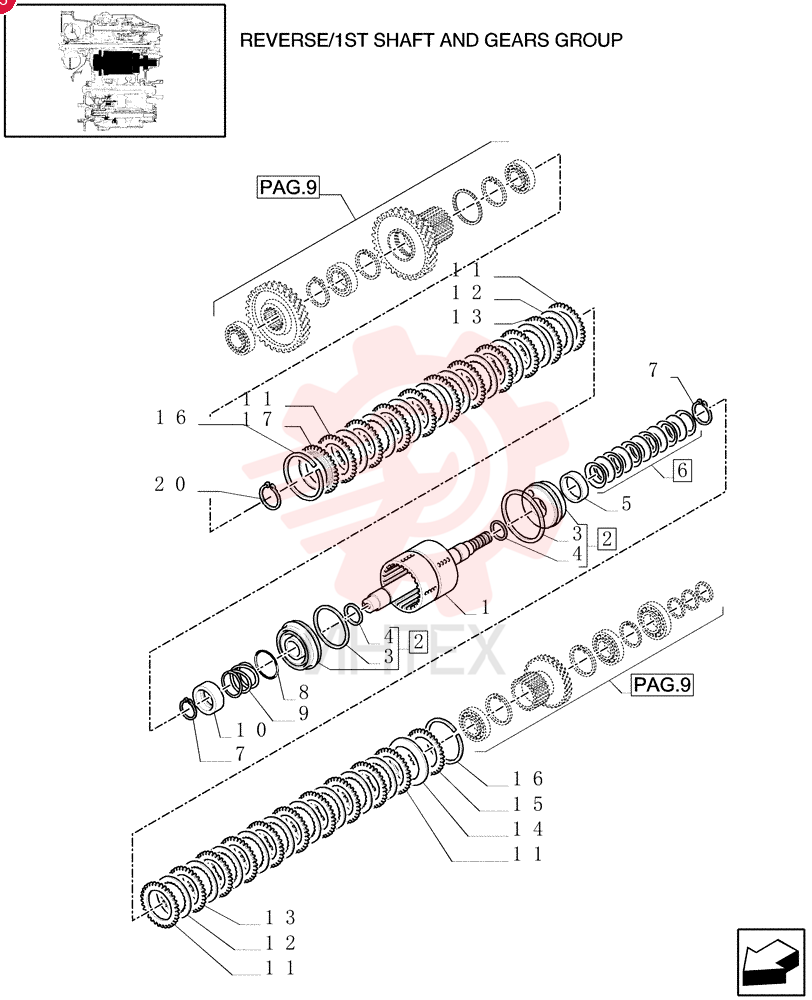

SHAFT 85823872

SHAFT 85823872

SHAFT 85823872

1 85823872

  • 85823872 - SHAFT

2 9969045

  • 9969045 - PISTON

3 9969046

  • 9969046 - SEALING RING
  • 123.49mm ID x 130.85mm OD x 2.4mm Thk

4 9969047

  • 9969047 - SEALING RING

5 85808351

  • 85808351 - RING

6 9969072

  • 9969072 - KIT

7 9969051

  • 9969051 - SNAP RING

8 9969048

  • 9969048 - RING

9 9969049

  • 9969049 - SPRING

10 9969050

  • 9969050 - RETAINER

11 85808338

  • 85808338 - HALF-DISC

12 85808339

  • 85808339 - DISC
  • 2.5 mm

13 85808340

  • 85808340 - CLUTCH PLATE
  • 2.5 mm

14 9969073

  • 9969073 - SPRING

15 85808343

  • 85808343 - BACKING PLATE

16 9969057

  • 9969057 - RING

17 85823863

  • 85823863 - BACK PLATE

18 9969059

  • 9969059 - CIRCLIP
