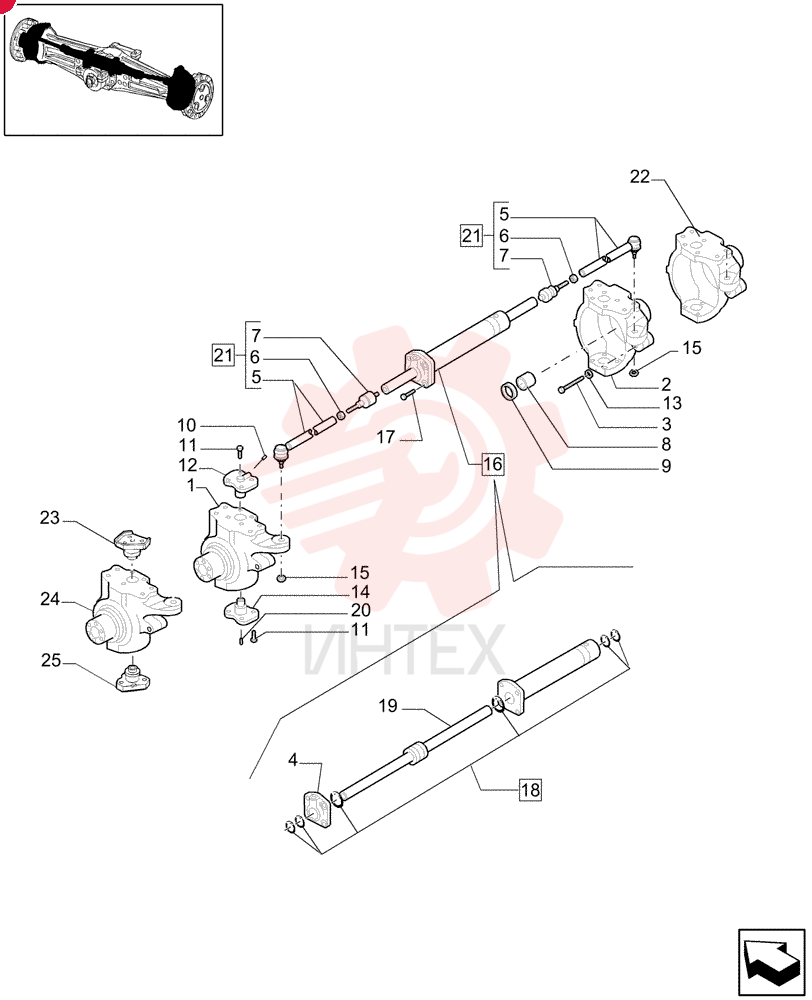

STEERING KNUCKLE,4 Holes (King Pin Fixing), 6 Holes (Hub Side), 65mm ID (Seal Ring Seat) 85805981 (4)
1 85805981
- 85805981 - STEERING KNUCKLE
- 4 Holes (King Pin Fixing)
- 6 Holes (Hub Side)
- 65mm ID (Seal Ring Seat)
- LH
- 6 Bolt Holes
- Serial Range: -XXXXXXXXX
2 85817695
- 85817695 - STEERING KNUCKLE
- 4 Holes (King Pin Fixing)
- 8 Holes (Hub Side)
- 65mm ID (Seal Ring Seat)
- LH
- 8 Bolt Holes
- Serial Range: XXXXXXXXX-031035929
3 85824349
- 85824349 - STEERING KNUCKLE
- 4 Holes (King Pin Fixing)
- 8 Holes (Hub Side)
- 60mm ID (Seal Ring Seat)
- LH
- 8 Bolt Holes
- Serial Range: 031035930-031054286
4 85805985
- 85805985 - STEERING KNUCKLE
- 4 Holes (King Pin Fixing)
- 6 Holes (Hub Side)
- 65mm ID (Seal Ring Seat)
- RH
- 6 Bolt Holes
- Serial Range: -XXXXXXXXX
5 85817696
- 85817696 - STEERING KNUCKLE
- 4 Holes (King Pin Fixing)
- 8 Holes (Hub Side)
- 65mm ID (Seal Ring Seat)
- RH
- 8 Bolt Holes
- Serial Range: XXXXXXXXX-031035929
6 85824348
- 85824348 - STEERING KNUCKLE
- 4 Holes (King Pin Fixing)
- 8 Holes (Hub Side)
- 60mm ID (Seal Ring Seat)
- RH
- 8 Bolt Holes
- Serial Range: 031035930-031054286
7 85805987
- 85805987 - SCREW
- M16 x 100mm
- M16 x 100
8 85805989
- 85805989 - CYLINDER HEAD
9 85805977
- 85805977 - TIE-ROD
- Serial Range: -031054286
10 87306927
- 87306927 - STEERING TIE-ROD
- Start Serial: 031054287
11 85805976
- 85805976 - NUT
- M18 x 1.5
- M18 x 1.5
12 85805975
- 85805975 - BALL JOINT
- M18 / M20
13 85805988
- 85805988 - BRONZE BUSHING
- 45.08mm ID x 50.12mm OD x 35mm L
- Serial Range: -031054286
14 85817697
- 85817697 - WASHER
- Start Serial: 031054287
15 85805991
- 85805991 - OIL SEAL
- 41.6mm ID x 65mm OD x 12mm Thk
- SEALRING 45 x 65 x 12
- Serial Range: -031035929
16 85824345
- 85824345 - OIL SEAL
- 45mm ID x 60mm OD x 16mm Thk
- 45 x 60 x 16
- Start Serial: 031035930
17 9968021
- 9968021 - LUBE NIPPLE
- M6 x 1 x 16mm OAL
- M6
18 85805979
- 85805979 - SCREW
- Hex Flng
- M12 x 1.75 x 30mm
- M12 x 1.75 x 30
- Serial Range: -031054286
19 9968022
- 9968022 - SCREW
- M14 x 2 x 35mm
- M14 x 2 x 35
- Start Serial: 031054287
20 85805980
- 85805980 - PIN
- Serial Range: -031054286
21 85805986
- 85805986 - NUT
- M16
22 85805983
- 85805983 - PIN
- Serial Range: -031054286
23 85805982
- 85805982 - NUT
- M18 x 1.5
- M18 x 1.5
24 85805978
- 85805978 - STEERING CYLINDER
- Assy
25 85805978R
- 85805978R - REMAN-HYD CYLINDER
- LB90
- LB110
- Both BACKHOE LOADER UPGRADE 2000
- Assy (9/00-)
26 85805978C
- 85805978C - CORE-HYD CYLINDER
- Return Number
27 9968028
- 9968028 - SCREW
- M12 x 45
28 85805990
- 85805990 - OIL SEAL
29 85805992
- 85805992 - ROD
30 85805984
- 85805984 - LUBE NIPPLE
- M6 x 1
31 85805974
- 85805974 - TIE-ROD
- Serial Range: -031054286
32 87306934
- 87306934 - TIE-ROD
- Start Serial: 031054287
33 85827739
- 85827739 - STEERING KNUCKLE
- 3 Holes (King Pin Fixing)
- 8 Holes (Hub Side)
- 60mm ID (Seal Ring Seat)
- RH
- 6 Bolt Holes
- Start Serial: 031054287
34 9968023
- 9968023 - PIVOT
- Start Serial: 031054287
35 85827740
- 85827740 - STEERING KNUCKLE
- 3 Holes (King Pin Fixing)
- 8 Holes (Hub Side)
- 60mm ID (Seal Ring Seat)
- LH
- 6 Bolt Holes
- Start Serial: 031054287
36 9968025
- 9968025 - PIVOT
- Start Serial: 031054287
