New Holland Construction
/
(LB110) - BACKHOE LOADER UPGRADE 2000 (9/00-)
/

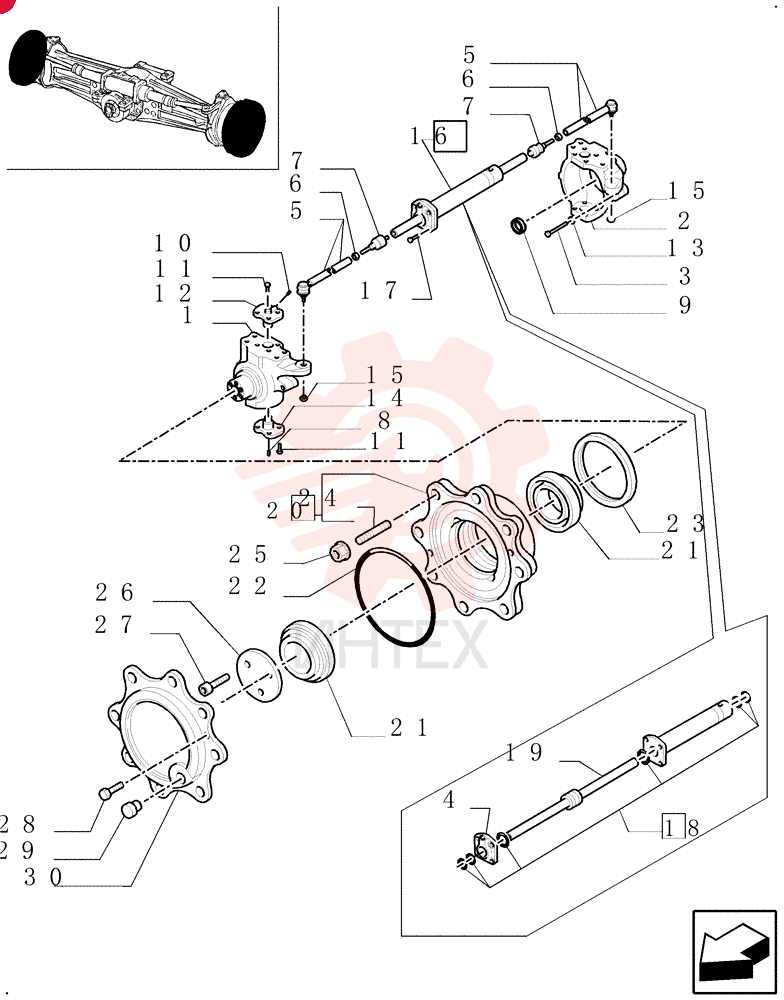

STEERING KNUCKLE,4 Holes (King Pin Fixing), 6 Holes (Hub Side), 65mm ID (Seal Ring Seat) 85805981 (1)

STEERING KNUCKLE,4 Holes (King Pin Fixing), 6 Holes (Hub Side), 65mm ID (Seal Ring Seat) 85805981 (1)

STEERING KNUCKLE,4 Holes (King Pin Fixing), 6 Holes (Hub Side), 65mm ID (Seal Ring Seat) 85805981 (1)

1 85805981

  • 85805981 - STEERING KNUCKLE
  • 4 Holes (King Pin Fixing)
  • 6 Holes (Hub Side)
  • 65mm ID (Seal Ring Seat)
  • LH
  • 6 Bolt Holes
  • Serial Range: -31037238

2 85824351

  • 85824351 - STEERING KNUCKLE
  • LH
  • 8 Bolt Holes
  • Start Serial: 31037239

3 85805985

  • 85805985 - STEERING KNUCKLE
  • 4 Holes (King Pin Fixing)
  • 6 Holes (Hub Side)
  • 65mm ID (Seal Ring Seat)
  • RH
  • 6 Bolt Holes
  • Serial Range: -31037238

4 85824350

  • 85824350 - STEERING KNUCKLE
  • RH
  • 8 Bolt Holes
  • Start Serial: 31037239

5 85805987

  • 85805987 - SCREW
  • M16 x 100mm
  • M16 x 100

6 85805989

  • 85805989 - CYLINDER HEAD

7 85805977

  • 85805977 - TIE-ROD

8 85805976

  • 85805976 - NUT
  • M18 x 1.5
  • M18 x 1.5

9 85805975

  • 85805975 - BALL JOINT
  • M18 / M20

10 85805984

  • 85805984 - LUBE NIPPLE
  • M6 x 1

11 85805708

  • 85805708 - PLUG
  • Serial Range: -31037238

12 85824352

  • 85824352 - PLUG
  • D65 x 8
  • Start Serial: 31037239

13 9968021

  • 9968021 - LUBE NIPPLE
  • M6 x 1 x 16mm OAL
  • M6

14 85805979

  • 85805979 - SCREW
  • Hex Flng
  • M12 x 1.75 x 30mm
  • M12 x 1.75 x 30

15 85805980

  • 85805980 - PIN

16 85805986

  • 85805986 - NUT
  • M16

17 85805983

  • 85805983 - PIN

18 85805982

  • 85805982 - NUT
  • M18 x 1.5
  • M18 x 1.5

19 85805978

  • 85805978 - STEERING CYLINDER
  • Assy

20 85805978R

  • 85805978R - REMAN-HYD CYLINDER
  • LB110
  • LB75
  • LB90
  • LB95
  • All (9/00-)
  • LB75.B (1/01-)
  • All BACKHOE LOADER UPGRADE 2000
  • Assy

21 85805978C

  • 85805978C - CORE-HYD CYLINDER
  • Return Number

22 9968028

  • 9968028 - SCREW
  • M12 x 45

23 85805990

  • 85805990 - OIL SEAL

24 85805992

  • 85805992 - ROD

25 85806003

  • 85806003 - KIT

26 85806002

  • 85806002 - TAPERED BEARING

27 85805711

  • 85805711 - O-RING

28 85806001

  • 85806001 - OIL SEAL
  • Serial Range: -31037238

29 85824344

  • 85824344 - OIL SEAL
  • Start Serial: 31037239

30 9968070

  • 9968070 - STUD

31 9968071

  • 9968071 - WHEEL NUT
  • Wheel
  • M18 x 1.5

32 85813054

  • 85813054 - THRUST WASHER

33 85806010

  • 85806010 - SCREW
  • M10 x 45mm
  • M10 x 45

34 85805709

  • 85805709 - BOLT
  • M8 x 20mm
  • M8 x 20

35 85805707

  • 85805707 - PLUG
  • M22 x 1.5

36 85805710

  • 85805710 - COVER
