New Holland Construction
/
(LB110) - BACKHOE LOADER UPGRADE 2000 (9/00-)
/

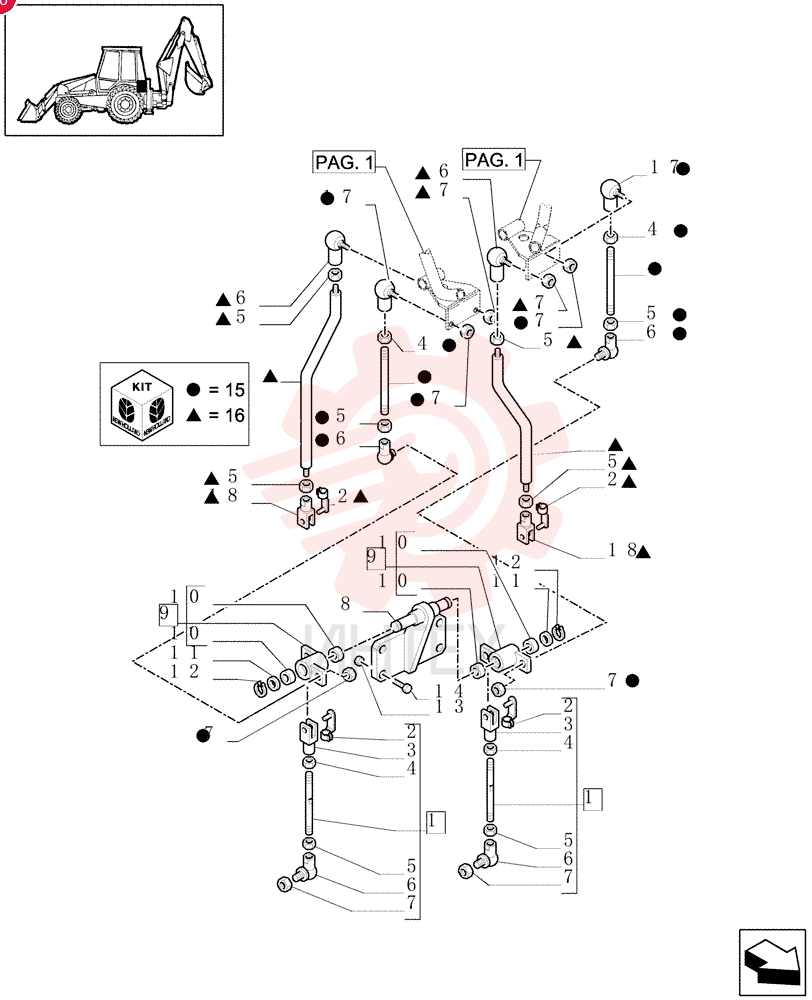

TIE-ROD 85801564

TIE-ROD 85801564

TIE-ROD 85801564

1 85801564

  • 85801564 - TIE-ROD

2 85802738

  • 85802738 - RETAINER
  • 8mm OD x 30mm L

3 11991971

  • 11991971 - CLEVIS
  • M8

4 16102911

  • 16102911 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04
  • LH

5 16102311

  • 16102311 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04

6 85804375

  • 85804375 - BALL JOINT
  • M8
  • M8
  • RH Threads

7 9628098

  • 9628098 - NUT
  • M8 x 1.25
  • Cl 10

8 85804899

  • 85804899 - SUPPORT

9 85804895

  • 85804895 - LEVER

10 85802494

  • 85802494 - BUSHING
  • 16.09mm ID x 19.13mm OD x 8mm L
  • 16 x 19 x 8

11 13507714

  • 13507714 - WASHER
  • 16.4mm ID x 27mm OD x 2mm Thk

12 N663114S36

  • N663114S36 - SNAP RING

13 16104121

  • 16104121 - NUT
  • M8 x 1.25
  • Cl 10

14 43128

  • 43128 - BOLT
  • M8 x 1.25 x 30mm
  • Cl 8.8

15 85804915

  • 85804915 - TIE-ROD
  • M8 x 174.5mm L

16 85804892

  • 85804892 - TIE-ROD

17 85804376

  • 85804376 - BALL JOINT
  • M8
  • M8
  • LH Threads

18 10007871

  • 10007871 - YOKE
  • 8mm ID Pin Hole
  • M8 x 42mm L
