New Holland Construction
/
(LB110) - BACKHOE LOADER UPGRADE 2000 (9/00-)
/

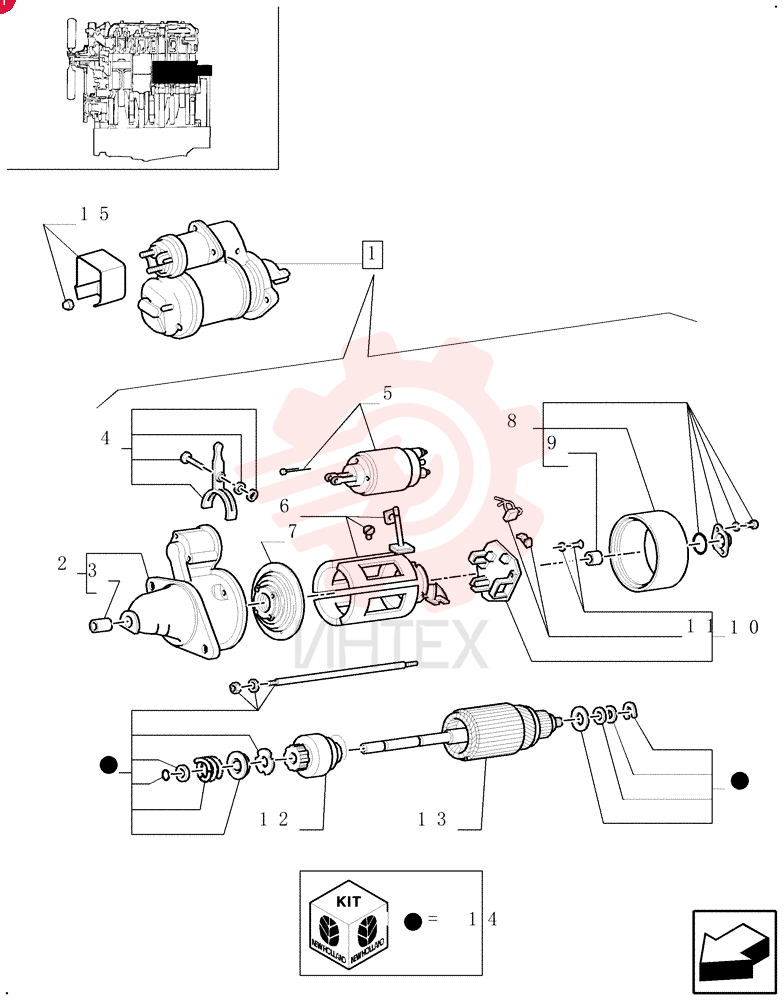

STARTER MOTOR 82007917

STARTER MOTOR 82007917

STARTER MOTOR 82007917

1 82007917

  • 82007917 - STARTER MOTOR
  • (ISKRA) 3.1KW
  • ASN 31013530

2 87755550R

  • 87755550R - REMAN-STARTER
  • 12V
  • 3kW
  • Starter

3 87755550C

  • 87755550C - CORE-STARTER
  • 12V
  • 3kW
  • Return Part Number

4 82012418

  • 82012418 - HOUSING

5 82012424

  • 82012424 - BUSHING

6 82012422

  • 82012422 - LEVER

7 82012419

  • 82012419 - SOLENOID
  • 12V

8 82012423

  • 82012423 - COIL

9 82012420

  • 82012420 - PLATE

10 82012421

  • 82012421 - COVER

11 82012425

  • 82012425 - BUSHING

12 82012415

  • 82012415 - SUPPORT

13 82012414

  • 82012414 - COMMUTATOR BRUSH

14 82012416

  • 82012416 - SHAFT

15 82012417

  • 82012417 - ARMATURE

16 82012427

  • 82012427 - KIT

17 82012426

  • 82012426 - KIT
