New Holland Construction
/
(LB75) - BACKHOE LOADER UPGRADE 2000 (9/00-)
/

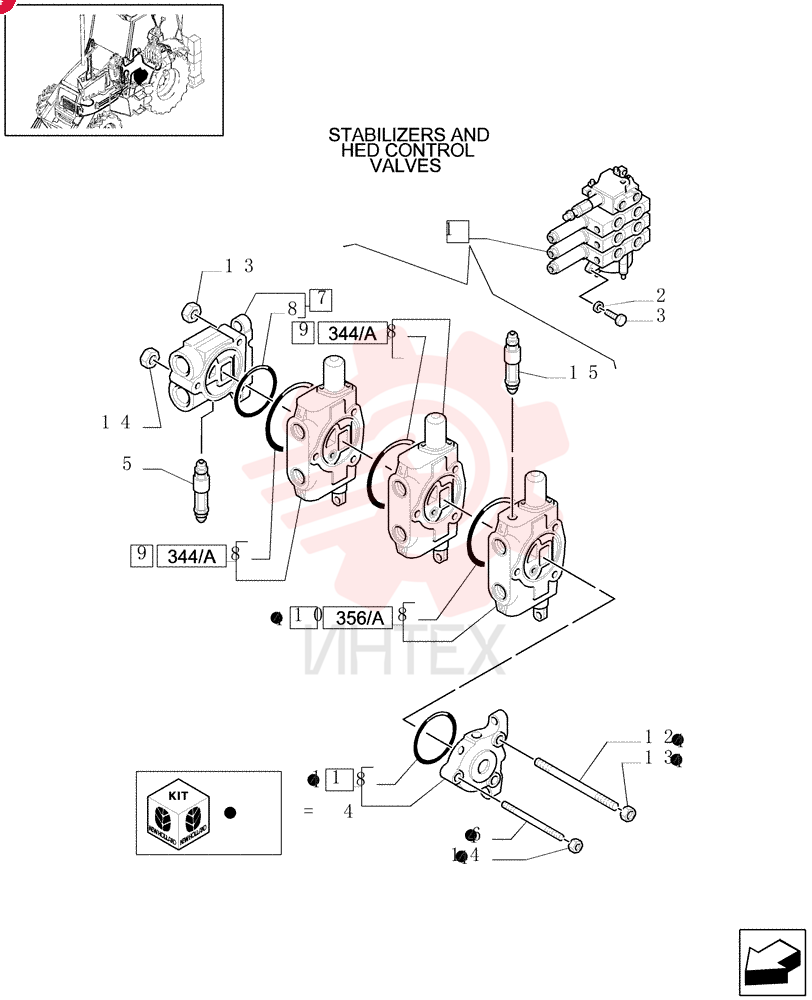

CONTROL VALVE 85819685

CONTROL VALVE 85819685

CONTROL VALVE 85819685

1 85819685

  • 85819685 - CONTROL VALVE

2 11193874

  • 11193874 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

3 16043924

  • 16043924 - BOLT
  • Hex
  • M8 x 1.25 x 35mm
  • Cl 8.8
  • Full Thd

4 85803121

  • 85803121 - CONVERSION KIT

5 85819721

  • 85819721 - HYDRAULIC VALVE

6 9968528

  • 9968528 - STUD

7 9968524

  • 9968524 - HYD VALVE SECTION
  • Inlet

8 9968476

  • 9968476 - SEALING RING

9 9970107

  • 9970107 - HYD VALVE SECTION
  • Stabilizer

10 9968526

  • 9968526 - HYD VALVE SECTION
  • Telescopic

11 9968527

  • 9968527 - HYD VALVE SECTION
  • Outlet

12 9968529

  • 9968529 - STUD

13 9968441

  • 9968441 - NUT
  • 5/16-16 UNC

14 9968440

  • 9968440 - NUT
  • 13/8-24 UNF

15 9968594

  • 9968594 - VALVE PRESSURE RELIE
