New Holland Construction
/
(LB75) - BACKHOE LOADER UPGRADE 2000 (9/00-)
/

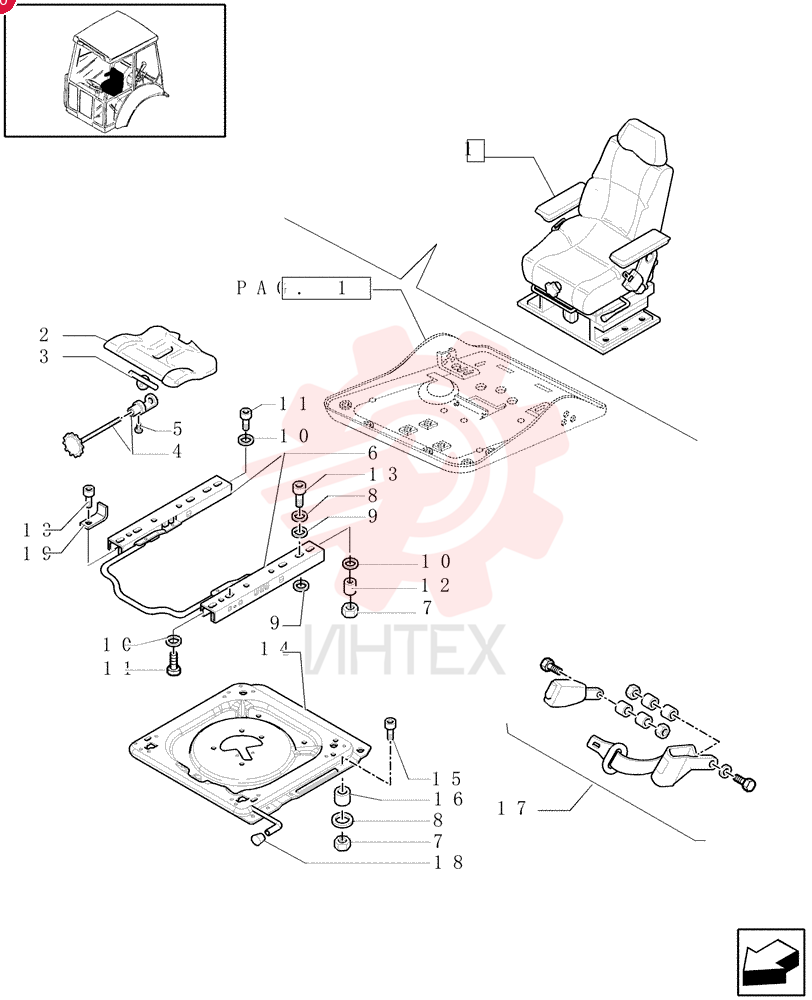

DRIVER SEAT 85826267 (2)

DRIVER SEAT 85826267 (2)

DRIVER SEAT 85826267 (2)

1 85826267

  • 85826267 - DRIVER SEAT
  • w/2" Seat Belt

2 85826266

  • 85826266 - DRIVER SEAT
  • w/3" Seat Belt

3 71485488

  • 71485488 - CONTROL
  • Includes 4

4 85817463

  • 85817463 - PLATE

5 85817464

  • 85817464 - ADJUSTMENT SCREW
  • Includes 3
  • 5

6 9962962

  • 9962962 - SCREW
  • M5 x 10mm
  • M5 x 10

7 85817484

  • 85817484 - KIT

8 85817458

  • 85817458 - NUT
  • M8

9 9960692

  • 9960692 - WASHER

10 9958776

  • 9958776 - SPACER

11 10519601

  • 10519601 - WASHER
  • 8.15mm ID x 17mm OD x 2mm Thk

12 14306321

  • 14306321 - HEX SOC SCREW
  • M8 x 20mm
  • Cl 8.8

13 85819813

  • 85819813 - BUSHING

14 85817467

  • 85817467 - SCREW
  • M8 x 1.25 x 1.25mm
  • M8 x 25

15 85827919

  • 85827919 - MOUNTING PLATE
  • Includes 18

16 85817465

  • 85817465 - SCREW
  • M8 x 40mm
  • M8 x 40

17 85817456

  • 85817456 - SPACER

18 85815578

  • 85815578 - SAFETY BELT
  • 2"

19 85817482

  • 85817482 - KNOB

20 85824204

  • 85824204 - BRACKET
