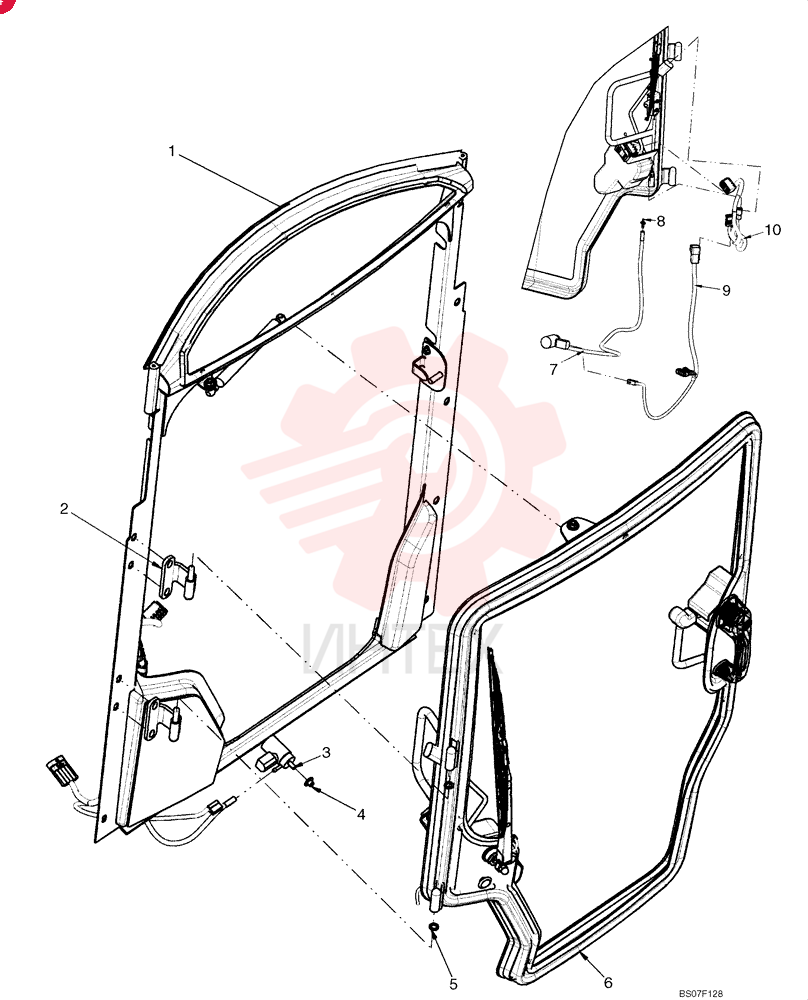

HINGE 87635960
1 87635960
- 87635960 - HINGE
- Door Hinge
- If Used
2 87688534
- 87688534 - HINGE
- If Used
3 87581786
- 87581786 - PUMP
- Washer Pump
4 87658782
- 87658782 - GROMMET
5 87599753
- 87599753 - SPACER
- 10.21mm ID x 15.88mm OD x 2.03mm L
6 87658793
- 87658793 - HOSE WASHER
- 3.56 mm ID
- 4.37 mm ID x 700.00 mm
- SAE J1037
- Windshield
7 87658798
- 87658798 - FITTING
- 1/8 x 5/32 Reducing Connector
8 87660792
- 87660792 - HARNESS
- Door Frame Harness
9 87660793
- 87660793 - HARNESS
- Door Harness
- See Fig 04-21
- If Used
10 87714906
- 87714906 - HARNESS
- Door Harness
- See Fig 04-21A
- If Used
11 263117
- 263117 - CABLE TIE
- 292.1mm L
- Nylon
- Black
- Not Illustrated
12 87642915
- 87642915 - CABLE TIE
- 198mm L
- Cable Tie
- Not Illustrated
- if Used
