New Holland Construction
/
(LT185.B) - COMPACT TRACK LOADER (3/05-)
/

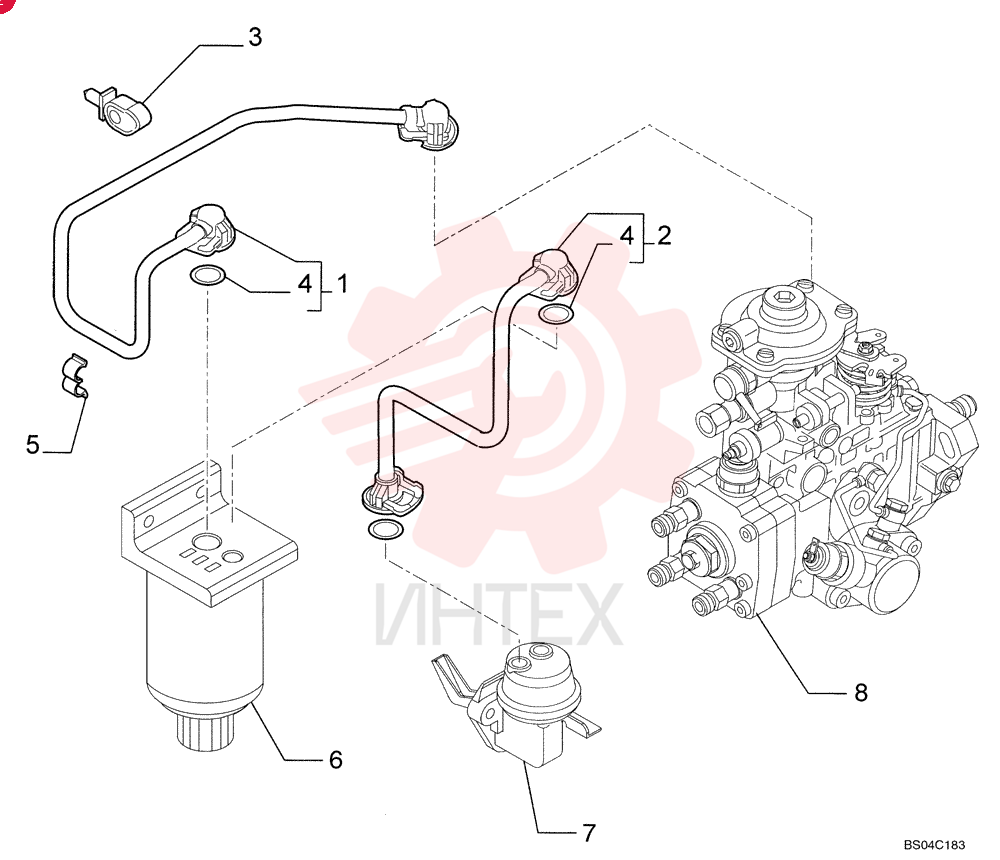

PIPE 2853845

PIPE 2853845

PIPE 2853845

1 2853845

  • 2853845 - PIPE
  • Replaces 2830494

2 2853848

  • 2853848 - PIPE
  • Replaces 3830497

3 2852111

  • 2852111 - CLIP
  • Replaces 4897762
  • Used with 2830494

4 4894095

  • 4894095 - O-RING
  • 2.5mm Thk x 8mm ID
  • 60 Duro

5 4893428

  • 4893428 - CLAMP
