New Holland Construction
/
(LT185.B) - COMPACT TRACK LOADER (3/05-)
/

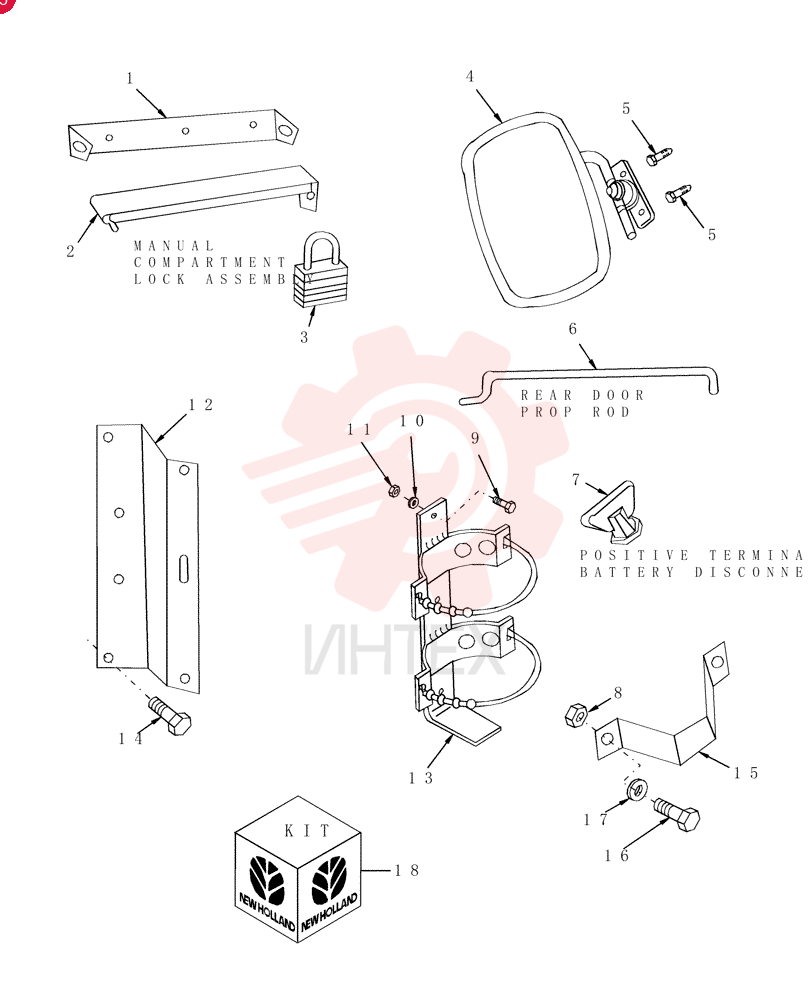

SUPPORT 86515873

SUPPORT 86515873

SUPPORT 86515873

1 86515873

  • 86515873 - SUPPORT
  • Manual Compartment Lock

2 86515872

  • 86515872 - ANGLE
  • Manual Compartment Lock

3 86518576

  • 86518576 - PADLOCK
  • Manual Compartment Lock

4 86575297

  • 86575297 - KEY
  • Set Of Keys For 86518576 Padlock

5 E7NN17700AA

  • E7NN17700AA - REAR VIEW MIRROR
  • Inside

6 9990936

  • 9990936 - SCREW
  • Oval CSK
  • M8 x 13mm
  • Self-Tapping
  • Oval Hd
  • #8 x 13

7 86506234

  • 86506234 - ROD
  • Rear Door

8 86518650

  • 86518650 - WING NUT
  • Stainless Steel
  • 3/8"-16

9 280129

  • 280129 - NUT
  • 1/4"-20

10 87872

  • 87872 - BOLT
  • Hex
  • 5/16" - 18 x 3/4"
  • Gr 5

11 80681

  • 80681 - LOCK WASHER
  • 5/16"

12 9635082

  • 9635082 - NUT
  • 5/16" - 18
  • Gr 5

13 86592983

  • 86592983 - SUPPORT
  • Angle
  • Fire Extinguisher Bracket

14 86506455

  • 86506455 - BRACKET
  • Fire Extinguisher

15 570821

  • 570821 - SELF-TAP SCREW
  • Hex Flng
  • 5/16" - 18 x 5/8"
  • Flg
  • USR
  • 5/16"-18 x 5/8"

16 86519774

  • 86519774 - GUARD
  • Guard

17 9707580

  • 9707580 - BOLT
  • Hex
  • 1/4" - 20 x 3/4"
  • Gr 5
  • Full Thd

18 9824259

  • 9824259 - WASHER
  • 6.4mm ID x 12mm OD x 1.6mm Thk

19 86590083

  • 86590083 - KIT
  • Inside Rear-View Mirror
  • Includes: Ref. 4 & 5
