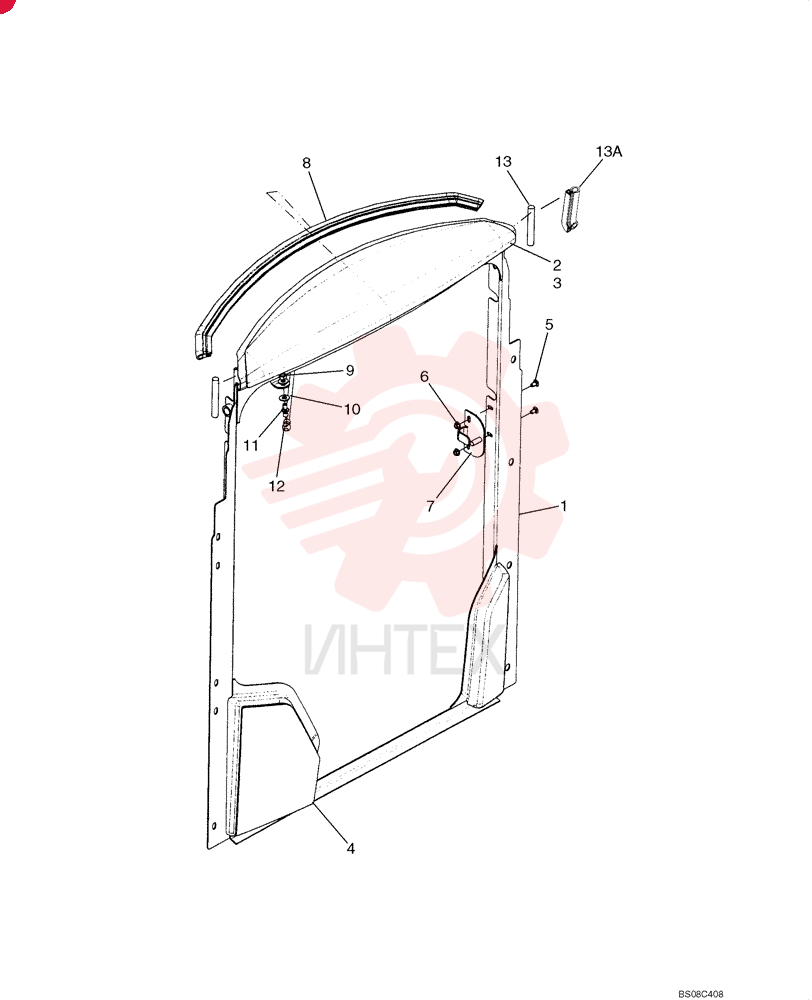

FRAME
1 87652757
- 87652757 - FRAME
- Door Frame
- Black
- Frame Has Slotted Holes On Sides
- If Used
2 87690544
- 87690544 - DOOR
- Door Frame
- Black
- Frame Has Square Holes On Sides
- If Used
3 87642009
- 87642009 - WINDOW
- Top
4 87600221
- 87600221 - SPACER
- Glue Spacer
5 87642008
- 87642008 - WINDOW
- Lower Window
- RH
6 87622768
- 87622768 - CARRIAGE BOLT
- M6 x 1.0 x 15.6mm OAL
- Cl 8.8
- Bolt
- M6 X 12
7 9804276
- 9804276 - FLANGE NUT
- Hex
- M6 x 1
- Cl 8
8 87657601
- 87657601 - LATCH
- Latch
- Used With Frame 87652757
- Pin Length 26.6 mm (1.04 in)
9 87687979
- 87687979 - LATCH
- Latch
- Used With Frame 87690544
- Pin Length 23.6 mm (.93 in)
10 87659267
- 87659267 - SEAL
- Bulb Seal
- Used With Frame 87652757
11 87691320
- 87691320 - SEAL
- Bulb Seal
- Used With Frame 87690544
12 43362
- 43362 - NUT
- M8 x 1.25
- Cl 10
13 86625263
- 86625263 - WASHER
- 9mm ID x 20mm OD x 1.6mm Thk
14 87581669
- 87581669 - BALL STUD
- M8 x 29.50mm L
- Ball Stud
15 87581689
- 87581689 - GAS STRUT
- Gas Spring
16 87658816
- 87658816 - SEAL
- Round Seal
- Used With Frame 87652757
17 87688733
- 87688733 - SEAL
- Used With Frame 87690544
