(LT190.B) - COMPACT TRACK LOADER (3/05-)
/

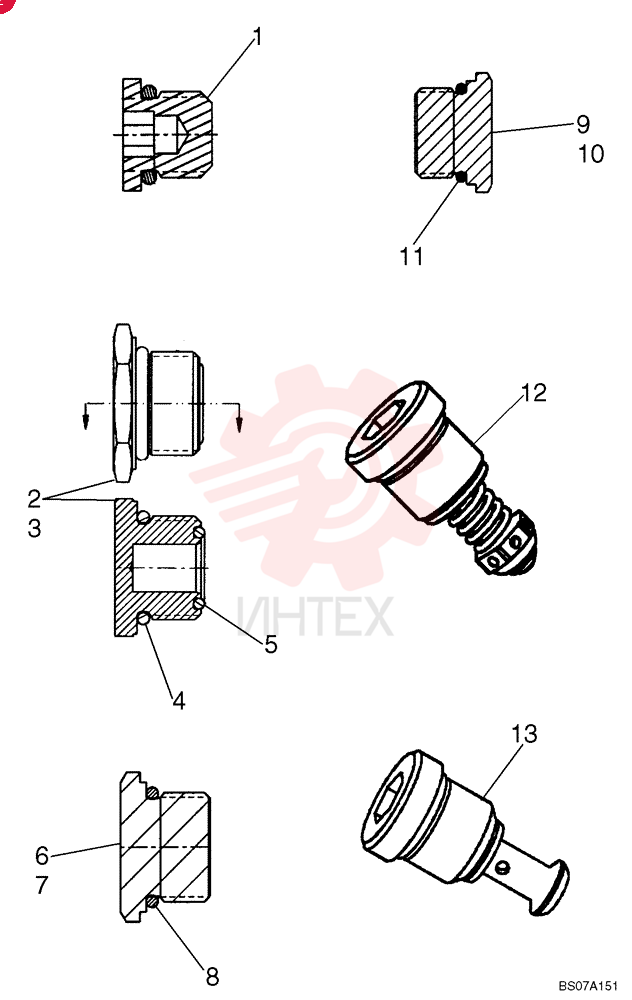

PLUG 87576170

PLUG 87576170

PLUG 87576170

1 87576170

  • 87576170 - PLUG
  • Plug Assy
  • 7/16 - 20 UNF Thd
  • Incl. Plug And O-ring

2 87576162

  • 87576162 - PLUG
  • Plug Assy
  • Metric - M18 X 1.5 - 6H
  • Incl. 3 - 5

3 NSS

  • NSS - NOT SOLD SEPARAT
  • Plug
  • Metric

4 NSS

  • NSS - NOT SOLD SEPARAT
  • O-Ring

5 NSS

  • NSS - NOT SOLD SEPARAT
  • O-Ring

6 87576158

  • 87576158 - PLUG
  • Plug Assy
  • 1 - 1/16 - 12 UN Thd
  • Incl. 7
  • 8

7 NSS

  • NSS - NOT SOLD SEPARAT
  • Plug
  • SAE

8 NSS

  • NSS - NOT SOLD SEPARAT
  • O-Ring

9 87576160

  • 87576160 - PLUG
  • Plug Assy
  • 7/8 - 14 UNF Thd
  • Incl. 10
  • 11

10 NSS

  • NSS - NOT SOLD SEPARAT
  • Plug
  • SAE

11 NSS

  • NSS - NOT SOLD SEPARAT
  • O-Ring

12 87445939

  • 87445939 - VALVE
  • Workport Relief Valve
  • Non Adjustable 245 Bar Stamped On Valve

13 87445991

  • 87445991 - VALVE
  • Main Relief Valve
  • Non Adjustable 210 Bar

14 87445932

  • 87445932 - VALVE
  • Workport Anti-void Valve
