(W50C) - COMPACT WHEEL LOADER STD, TC - TIER 4 (6/14-)
/

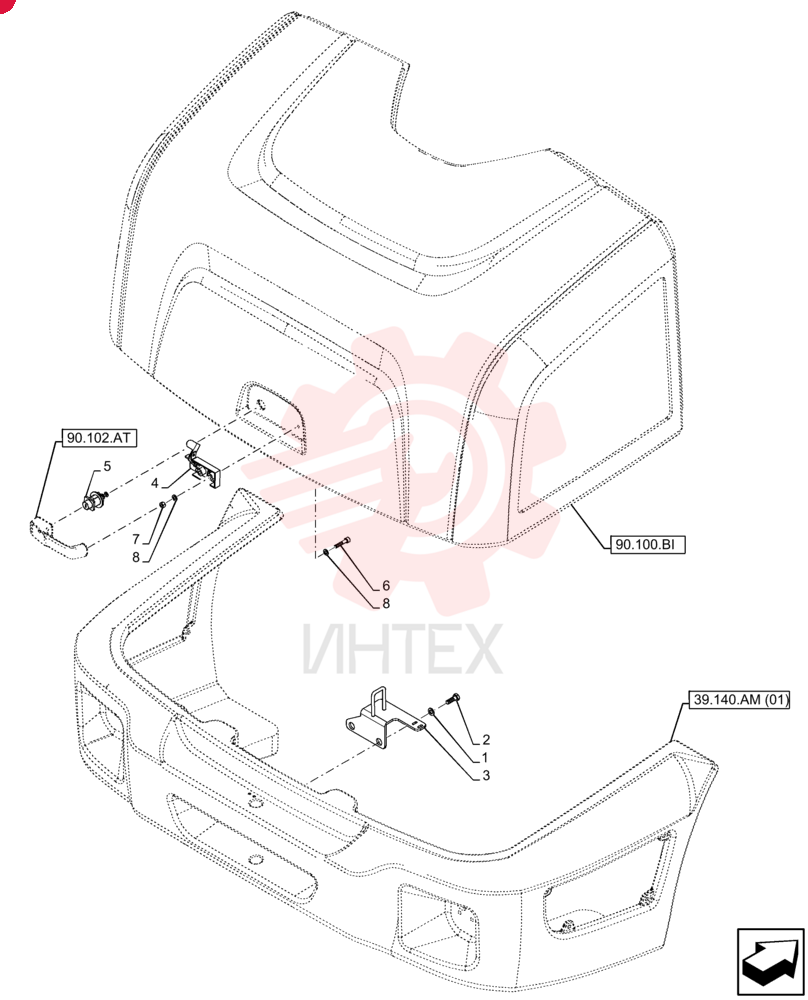

WASHER,11mm ID x 20mm OD x 2mm Thk

WASHER,11mm ID x 20mm OD x 2mm Thk

WASHER,11mm ID x 20mm OD x 2mm Thk

1 86624176

  • 86624176 - WASHER
  • 11mm ID x 20mm OD x 2mm Thk

2 9515003

  • 9515003 - BOLT
  • Hex
  • M10 x 1.5 x 30mm
  • Cl 10.9

3 47587526

  • 47587526 - BRACKET
  • Serial Range: -NFHP00514

4 47819187

  • 47819187 - HOOK
  • Start Serial: NFHP00515

5 47385600

  • 47385600 - LOCKING HANDLE

6 47385630

  • 47385630 - LOCK CYLINDER

7 14306721

  • 14306721 - HEX SOC SCREW
  • M8 x 48mm
  • Cl 8.8

8 68841

  • 68841 - NUT
  • M8 x 1.25
  • Cl 8

9 86624184

  • 86624184 - WASHER
  • 9mm ID x 16mm OD x 1.6mm Thk
