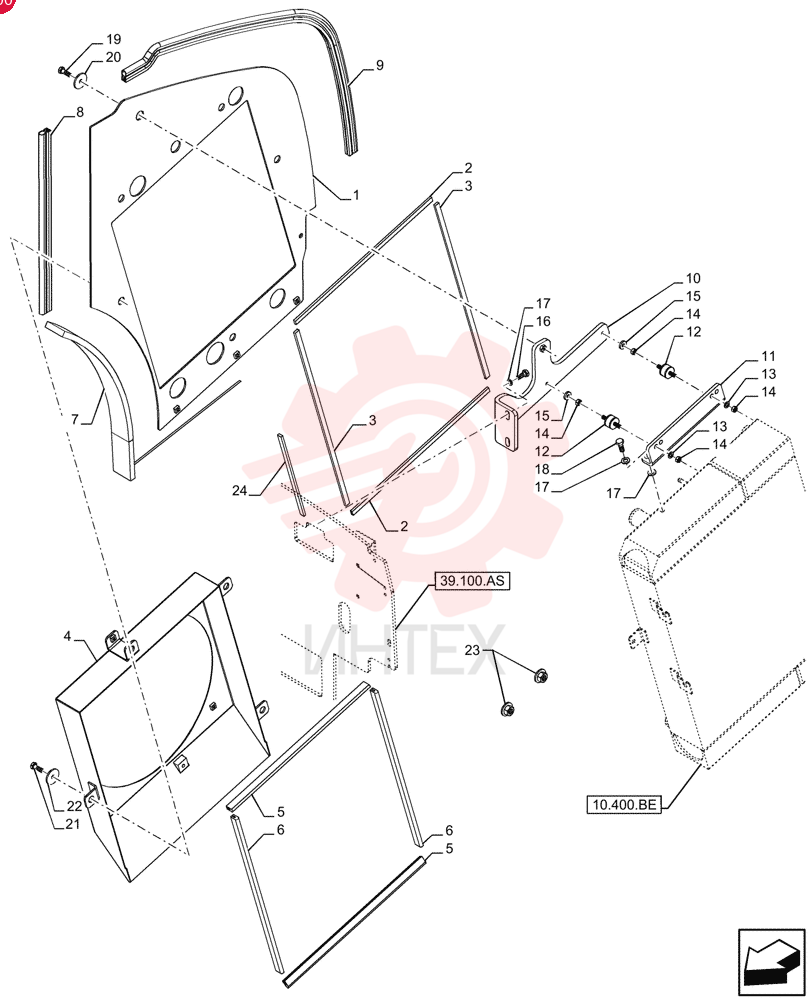

SUPPORT 47639831
1 47639831
- 47639831 - SUPPORT
- Radiator
- Serial Range: -NFHP00131
2 47774840
- 47774840 - SUPPORT
- Radiator
- Serial Range: NFHP00132-NGHP00027
3 47931200
- 47931200 - SUPPORT
- Radiator
- Start Serial: NGHP00028
4 47638687
- 47638687 - SEAL
- 490mm
5 47638669
- 47638669 - SEAL
- 690mm
6 47724338
- 47724338 - SHROUD
- Radiator
- Serial Range: -NFHP00131
7 47622369
- 47622369 - SEAL
- 493mm
- Serial Range: -NFHP00131
8 47622362
- 47622362 - SEAL
- 560mm
- Serial Range: -NFHP00131
9 47634928
- 47634928 - INSULATOR
- Side
10 47624837
- 47624837 - SEAL
- 636mm
- Serial Range: -NGHP00027
11 47927109
- 47927109 - SEAL
- 636mm
- Start Serial: NGHP00028
12 47622352
- 47622352 - SEAL
- 1160mm
- Serial Range: -NGHP00027
13 47925227
- 47925227 - SEAL
- 1160mm
- Start Serial: NGHP00028
14 47508763
- 47508763 - BRACKET
15 47620553
- 47620553 - BRACKET
- Radiator Mount
16 87754588
- 87754588 - RUBBER MOUNTING
- 30 x 20mm
17 86624184
- 86624184 - WASHER
- 9mm ID x 16mm OD x 1.6mm Thk
18 43362
- 43362 - NUT
- M8 x 1.25
- Cl 10
19 57111
- 57111 - WASHER
- 8.4mm ID x 21mm OD x 4mm Thk
- 8.4mm
20 43248
- 43248 - BOLT
- Hex
- M10 x 1.5 x 40mm
- Cl 10.9
21 86624176
- 86624176 - WASHER
- 11mm ID x 20mm OD x 2mm Thk
22 9846677
- 9846677 - BOLT
- M10 x 1.5 x 25mm
- Cl 10.9
23 43235
- 43235 - BOLT
- Hex
- M8 x 1.25 x 30mm
- Cl 10.9
- Full Thd
24 12646204
- 12646204 - WASHER
- 8.15mm ID x 35mm OD x 3mm Thk
25 9861444
- 9861444 - BOLT
- Hex
- M10 x 1.5 x 20mm
- Cl 10.9
26 12644301
- 12644301 - WASHER
- M10 x 35 x 3
- Serial Range: -NFHP00131
27 12577221
- 12577221 - LOCK NUT
- M10 x 1.5mm Pitch
- 12.30mm High
- Cl 10
- ZND
28 87432328
- 87432328 - SEAL
- 294mm
- Start Serial: NGHP00028
