New Holland Construction
/
(W70C) - COMPACT WHEEL LOADER STD, ZB - TIER 4 (6/14-)
/

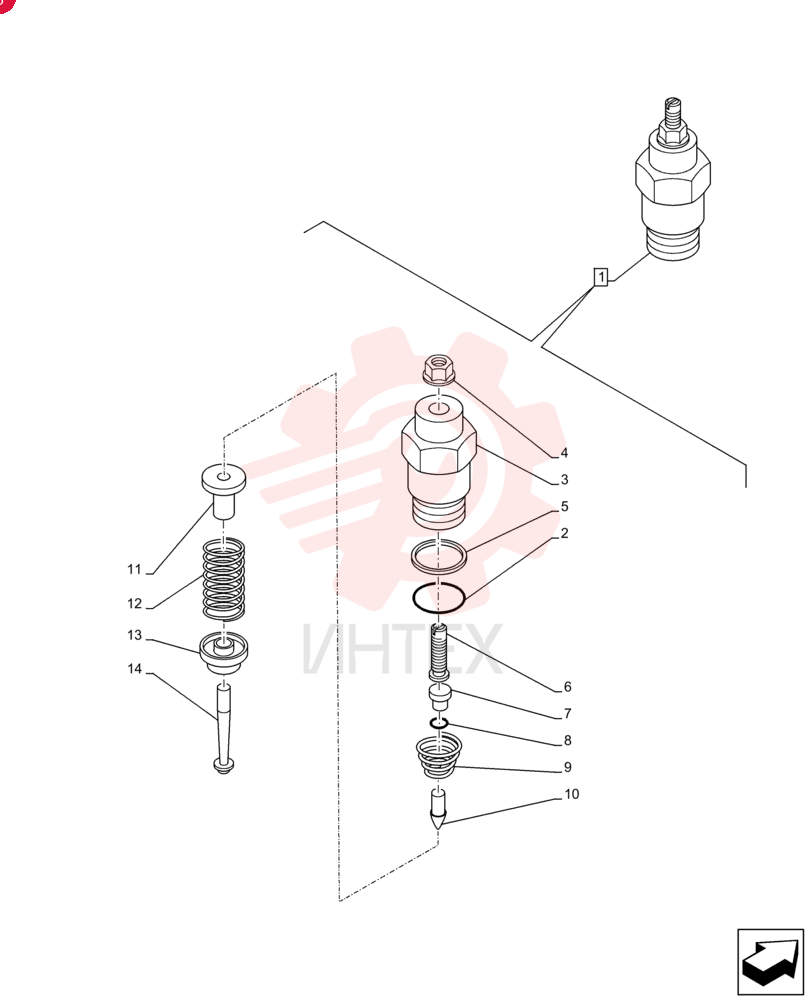

VALVE PRESSURE RELIE 47628203

VALVE PRESSURE RELIE 47628203

VALVE PRESSURE RELIE 47628203

1 47628203

  • 47628203 - VALVE PRESSURE RELIE
  • ASSY
  • Incl 2 - 14

2 87758186

  • 87758186 - SEAL KIT
  • Front Pump

3 NSS

  • NSS - NOT SOLD SEPARAT
  • Body
  • Incl in 1

4 NSS

  • NSS - NOT SOLD SEPARAT
  • Nut
  • Incl in 1

5 NSS

  • NSS - NOT SOLD SEPARAT
  • Ring
  • Incl in 1

6 NSS

  • NSS - NOT SOLD SEPARAT
  • Screw
  • Incl in 1

7 NSS

  • NSS - NOT SOLD SEPARAT
  • Valve
  • Incl in 1

8 NSS

  • NSS - NOT SOLD SEPARAT
  • Ring
  • Incl in 1

9 NSS

  • NSS - NOT SOLD SEPARAT
  • Spring
  • Incl in 1

10 NSS

  • NSS - NOT SOLD SEPARAT
  • Valve
  • Incl in 1

11 NSS

  • NSS - NOT SOLD SEPARAT
  • Plug
  • Incl in 1

12 NSS

  • NSS - NOT SOLD SEPARAT
  • Spring
  • Incl in 1

13 NSS

  • NSS - NOT SOLD SEPARAT
  • Cover
  • Incl in 1

14 NSS

  • NSS - NOT SOLD SEPARAT
  • Shaft
  • Incl in 1
