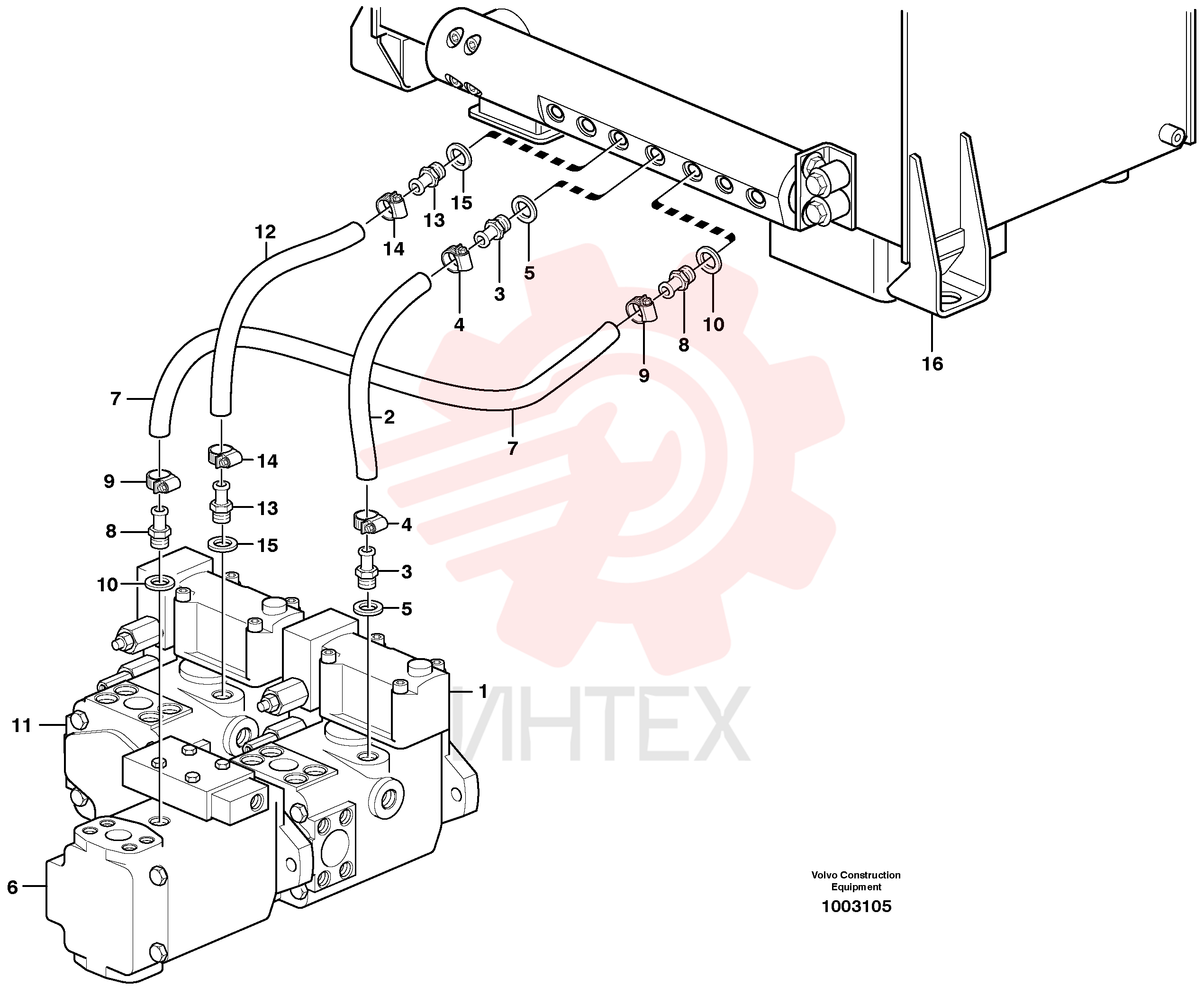

Plane Gasket VOE 948885 (4)

Plane Gasket VOE 948885 (4)

Plane Gasket VOE 948885 (4)

1 VOE 948885

  • VOE 948885 - Plane Gasket

2 VOE 948885

  • VOE 948885 - Plane Gasket

3 VOE 13961193

  • VOE 13961193 - Hydraulic Hose
  • L = 400 MM

4 VOE 13961193

  • VOE 13961193 - Hydraulic Hose
  • L = 400 MM

5 VOE 948931

  • VOE 948931 - Nipple

6 VOE 948931

  • VOE 948931 - Nipple

7 VOE 943475

  • VOE 943475 - Hose Clamp

8 VOE 943475

  • VOE 943475 - Hose Clamp

9 VOE 948885

  • VOE 948885 - Plane Gasket

10 VOE 948885

  • VOE 948885 - Plane Gasket

11 VOE 13961193

  • VOE 13961193 - Hydraulic Hose
  • L = 400 MM

12 VOE 13961193

  • VOE 13961193 - Hydraulic Hose
  • L = 400 MM

13 VOE 948931

  • VOE 948931 - Nipple

14 VOE 948931

  • VOE 948931 - Nipple

15 VOE 943475

  • VOE 943475 - Hose Clamp

16 VOE 943475

  • VOE 943475 - Hose Clamp

17 VOE 948885

  • VOE 948885 - Plane Gasket

18 VOE 948885

  • VOE 948885 - Plane Gasket

19 VOE 13961193

  • VOE 13961193 - Hydraulic Hose
  • L = 580 MM

20 VOE 13961193

  • VOE 13961193 - Hydraulic Hose
  • L = 580 MM

21 VOE 948931

  • VOE 948931 - Nipple

22 VOE 948931

  • VOE 948931 - Nipple

23 VOE 943475

  • VOE 943475 - Hose Clamp

24 VOE 943475

  • VOE 943475 - Hose Clamp
