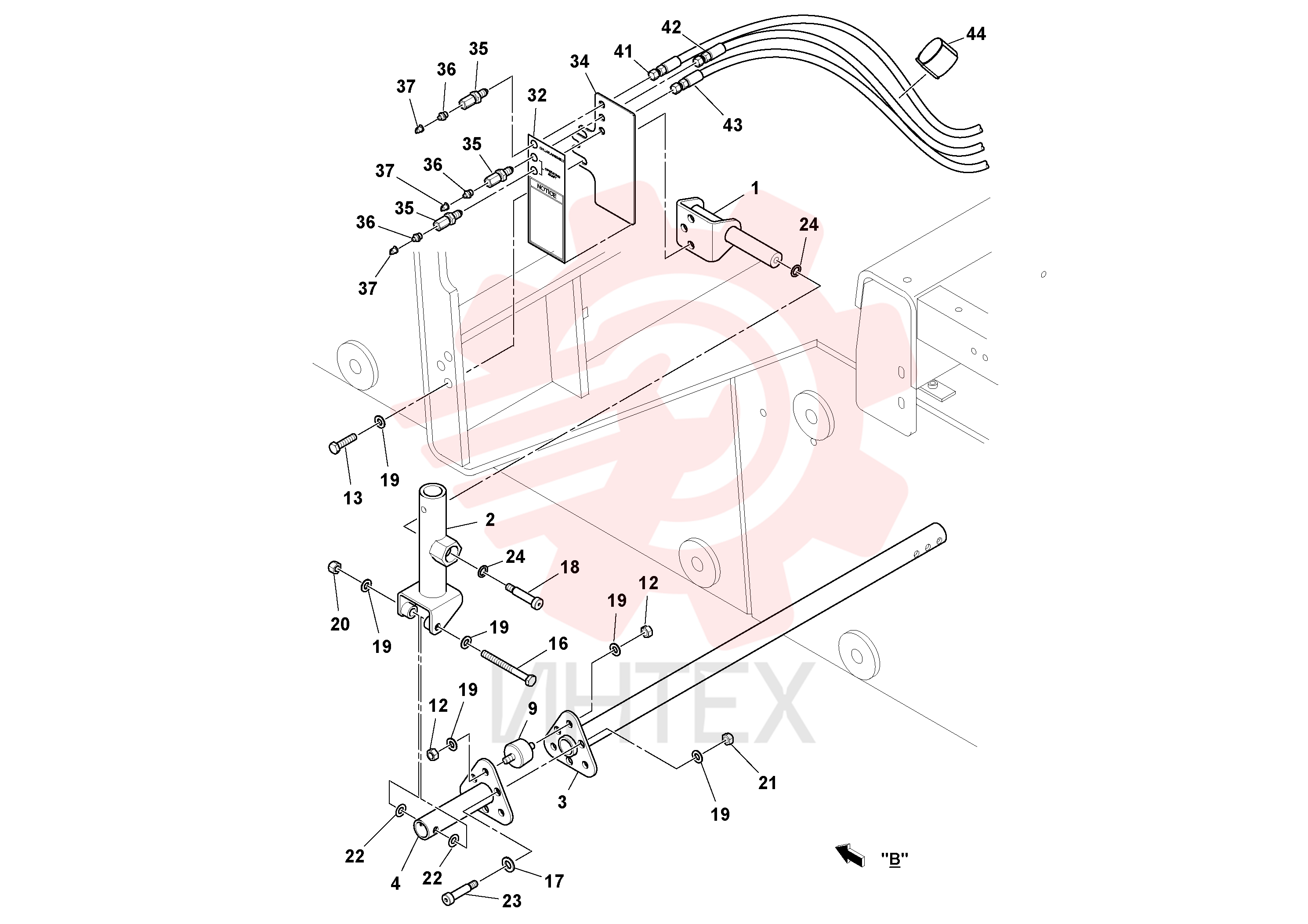

Lever mounting RM 43943927 (1)

Lever mounting RM 43943927 (1)

Lever mounting RM 43943927 (1)

1 RM 43943927

  • RM 43943927 - Lever mounting

2 RM 96704812

  • RM 96704812 - Hexagon nut

3 RM 96704812

  • RM 96704812 - Hexagon nut

4 RM 96704556

  • RM 96704556 - Винт шестигранник

5 RM 96704556

  • RM 96704556 - Винт шестигранник

6 RM 96720594

  • RM 96720594 - Винт шестигранник

7 RM 96749510

  • RM 96749510 - Болт

8 RM 96742259

  • RM 96742259 - Болт

9 RM 96741046

  • RM 96741046 - Плоская шайба

10 RM 96741046

  • RM 96741046 - Плоская шайба

11 RM 43966977

  • RM 43966977 - Pivot

12 RM 96704614

  • RM 96704614 - Гайка

13 RM 96704614

  • RM 96704614 - Гайка

14 RM 96727300

  • RM 96727300 - Hexagon nut

15 RM 96727300

  • RM 96727300 - Hexagon nut

16 RM 18006155

  • RM 18006155 - Шайба

17 RM 96738596

  • RM 96738596 - Шайба

18 RM 18008821

  • RM 18008821 - Washer
  • Nylon

19 RM 43944883

  • RM 43944883 - Linkage

20 RM 43944883

  • RM 43944883 - Linkage

21 RM 43960921

  • RM 43960921 - Decal

22 RM 43960913

  • RM 43960913 - Decal

23 RM 59035741

  • RM 59035741 - Адаптер

24 RM 95201547

  • RM 95201547 - Фиттинг

25 RM 95201547

  • RM 95201547 - Фиттинг

26 RM 50270248

  • RM 50270248 - Cap

27 RM 50270248

  • RM 50270248 - Cap

28 RM 43944909

  • RM 43944909 - Linkage

29 RM 43959121

  • RM 43959121 - Шланг

30 RM 43959121

  • RM 43959121 - Шланг

31 RM 43968601

  • RM 43968601 - Шланг

32 RM 43968601

  • RM 43968601 - Шланг

33 RM 43961135

  • RM 43961135 - Hydraulic hose

34 RM 43961135

  • RM 43961135 - Шланг

35 RM 43961135

  • RM 43961135 - Hydraulic hose

36 RM 43878370

  • RM 43878370 - Strap

37 RM 43878370

  • RM 43878370 - Strap

38 RM 13478573

  • RM 13478573 - Rubber damper

39 RM 13478573

  • RM 13478573 - Rubber damper
