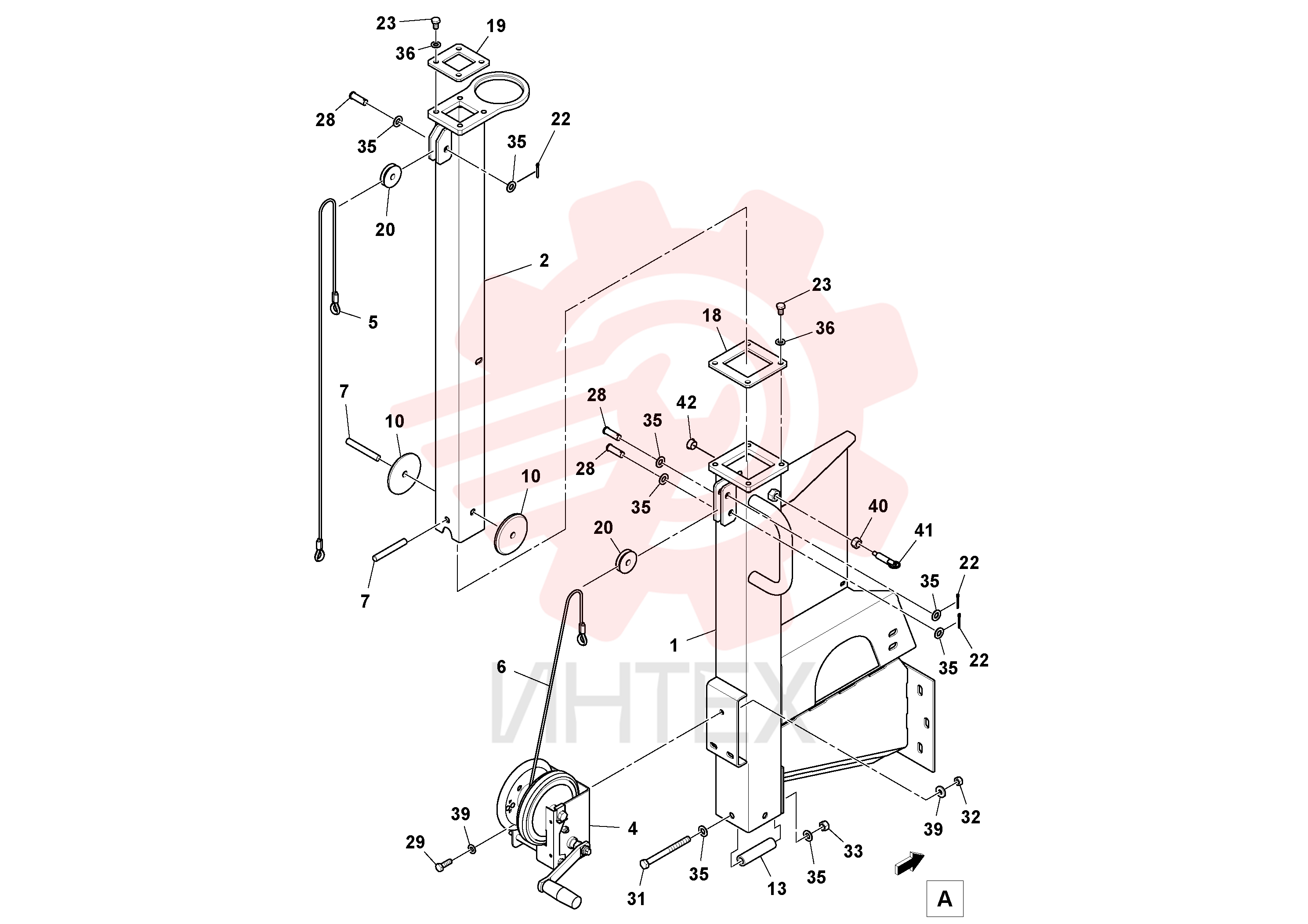

Support section RM 43950484

Support section RM 43950484

Support section RM 43950484

1 RM 43950484

  • RM 43950484 - Support section

2 RM 43939222

  • RM 43939222 - Вставка

3 RM 43895689

  • RM 43895689 - Вставка

4 RM 43931591

  • RM 43931591 - Guide plate

5 RM 43931609

  • RM 43931609 - Guide plate

6 RM 43951995

  • RM 43951995 - Опора

7 RM 43891761

  • RM 43891761 - Шкив

8 RM 95923918

  • RM 95923918 - Split pin

9 RM 95923918

  • RM 95923918 - Split pin

10 RM 96701479

  • RM 96701479 - Винт шестигранник

11 RM 43891928

  • RM 43891928 - Pin
  • Clevis

12 RM 96701917

  • RM 96701917 - Винт шестигранник

13 RM 96701917

  • RM 96701917 - Винт шестигранник

14 RM 96754379

  • RM 96754379 - Болт

15 RM 96704812

  • RM 96704812 - Hexagon nut

16 RM 96704812

  • RM 96704812 - Hexagon nut

17 RM 96719174

  • RM 96719174 - Hexagon nut

18 RM 96719174

  • RM 96719174 - Hexagon nut

19 RM 96704895

  • RM 96704895 - Плоская шайба

20 RM 96704895

  • RM 96704895 - Плоская шайба

21 RM 96714399

  • RM 96714399 - Плоская шайба

22 RM 96714399

  • RM 96714399 - Плоская шайба

23 RM 96711833

  • RM 96711833 - Шайба

24 RM 96711833

  • RM 96711833 - Шайба

25 RM 43925635

  • RM 43925635 - Winch

26 RM 95922902

  • RM 95922902 - Hexagon nut

27 RM 95922902

  • RM 95922902 - Hexagon nut

28 RM 20188009

  • RM 20188009 - Control plunger

29 RM 59326827

  • RM 59326827 - Пробка (заглушка)

30 RM 59326827

  • RM 59326827 - Пробка (заглушка)

31 RM 43952639

  • RM 43952639 - Cable

32 RM 43895028

  • RM 43895028 - Cable

33 RM 43891969

  • RM 43891969 - Палец
