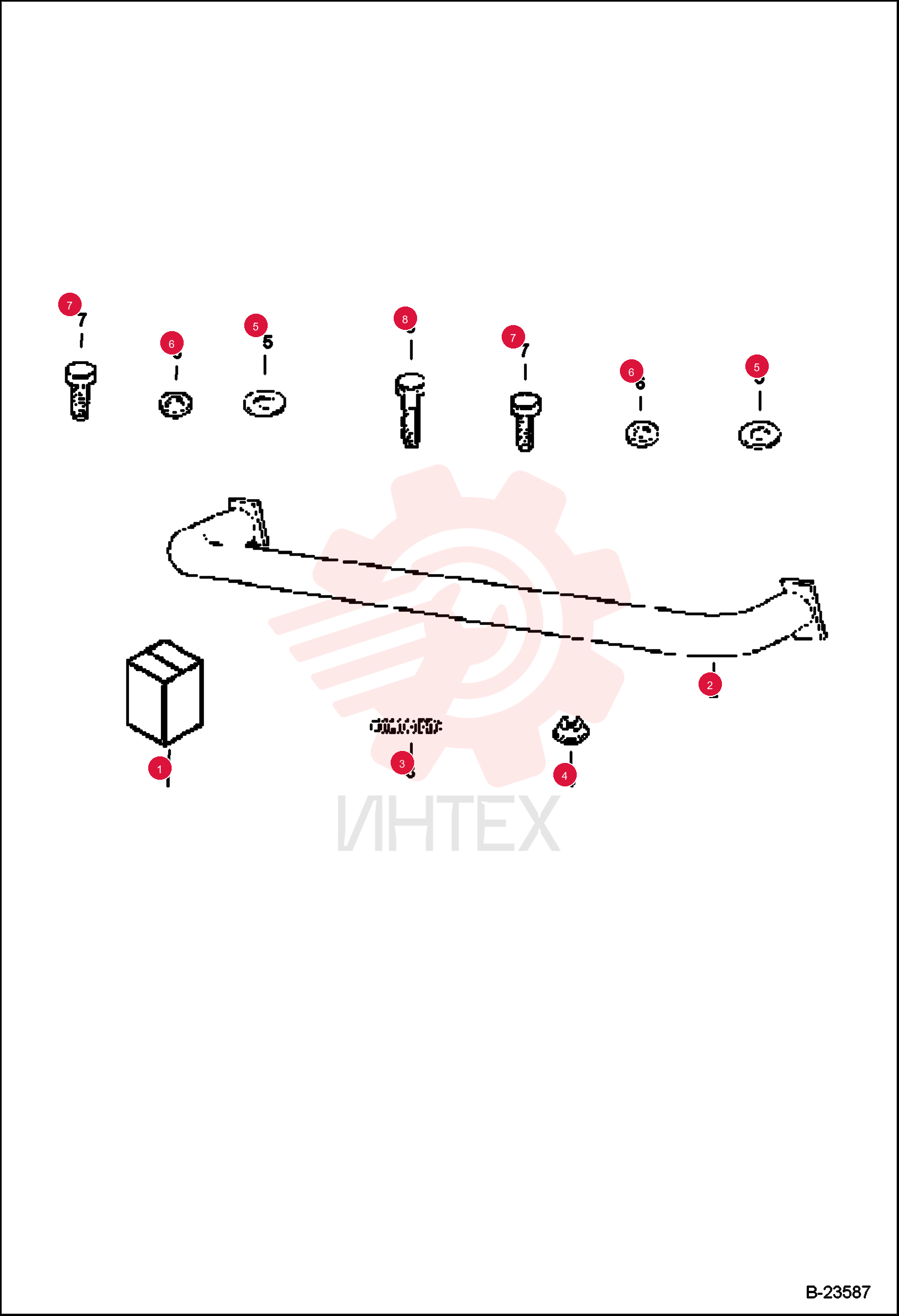

NERF BARS 102890501CC

NERF BARS 102890501CC

NERF BARS 102890501CC

1 102890501CC

  • 102890501CC - NERF BARS
  • Was 102890501CC - W/REF2-7

2 102065901CC

  • 102065901CC - LOCKNUT
  • 3/8-16 FLANGED DIMPLE
  • Use on 2200S only

3 808CC

  • 808CC - WASHER
  • 3/8 TYPE B FLAT
  • Use on 2200 and 2300

4 357CC

  • 357CC - WASHER
  • 3/8 SPLIT LOCK

5 320CC

  • 320CC - SCREW
  • 3/8-16 X 1.00 HX HD CAP
  • Use on 2200 and 2300

6 7561CC

  • 7561CC - BOLT
  • 3/8-16 X 3.00 HEX HEAD
  • Use on 2200 and 2300
