Bobcat
/
2200S
/

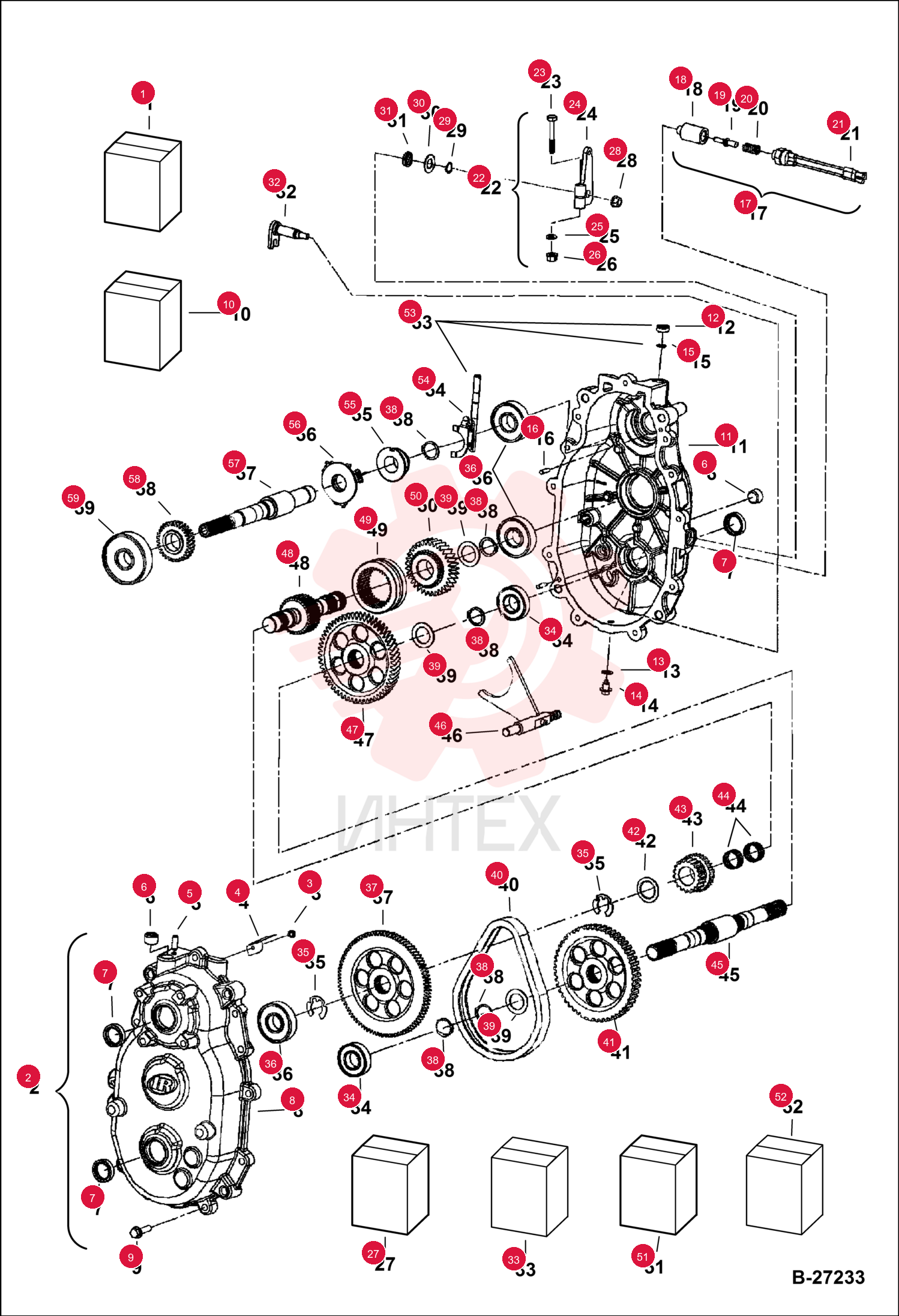

TRANSMISSION 103178401CC (2)

TRANSMISSION 103178401CC (2)

TRANSMISSION 103178401CC (2)

1 103178401CC

  • 103178401CC - TRANSMISSION
  • Gasoline - W/Ref. 2- 59 - this an updated transmission
  • parts will fit early design

2 102943201CC

  • 102943201CC - TRANSMISSION
  • Diesel - W/Ref. 2- 59 - this is an updated transmission
  • parts will fit early design

3 102764201CC

  • 102764201CC - REAR GEARCASE ASSY
  • W/Ref. 3-9

4 102698301CC

  • 102698301CC - VENT TRANS

5 102694201CC

  • 102694201CC - PLUG SQUARE

6 102699401CC

  • 102699401CC - SEAL

7 102693301CC

  • 102693301CC - SCREW

8 103250301CC

  • 103250301CC - GEAR CASE ASM
  • front - W/Ref. 6
  • 7 & 11-16

9 102699501CC

  • 102699501CC - PLUG
  • diesel vehicle only

10 102721501CC

  • 102721501CC - SEAL LIP
  • gasoline vehicle

11 102693501CC

  • 102693501CC - WASHER

12 103250401CC

  • 103250401CC - PLUG
  • Was 102693401CC

13 102700001CC

  • 102700001CC - RING RETAINING
  • gasoline vehicle

14 102696101CC

  • 102696101CC - PIN DOWEL
  • NLA - Was 102696101CC

15 102765101CC

  • 102765101CC - KIT NEUTRAL SWITCH REPAIR
  • W/Ref. 18-21

16 103294301CC

  • 103294301CC - BELLCRANK
  • W/Ref. 22-25

17 334CC

  • 334CC - WASHER
  • 3/8 TYPE A FLAT

18 8754CC

  • 8754CC - LOCKNUT
  • 3/8-16 HEX

19 102765001CC

  • 102765001CC - KIT TRANS SHIFT SHAFT REPAIR
  • W/Ref. 28-32

20 102696001CC

  • 102696001CC - NUT LOCK

21 102696401CC

  • 102696401CC - RING RETAINING EXT

22 102696601CC

  • 102696601CC - WASHER

23 102699601CC

  • 102699601CC - SEAL LIP

24 102765201CC

  • 102765201CC - KIT REVERSE GEAR REPAIR
  • W/Ref. 34-36 & 38 - 44

25 102696801CC

  • 102696801CC - BEARING

26 102699701CC

  • 102699701CC - RING RETAINING

27 102696901CC

  • 102696901CC - BEARING

28 102696201CC

  • 102696201CC - RING RETAINING EXT

29 102696501CC

  • 102696501CC - WASHER

30 102696701CC

  • 102696701CC - WASHER

31 102697101CC

  • 102697101CC - BEARING

32 102698801CC

  • 102698801CC - SHAFT OUTPUT

33 102697801CC

  • 102697801CC - FORK WA TRANS

34 102698701CC

  • 102698701CC - SHAFT INTERMEDIATE

35 102697501CC

  • 102697501CC - DOG ENGAGEMENT

36 102764901CC

  • 102764901CC - KIT FORWARD GEAR REPAIR
  • W/Ref. 34
  • 36
  • 38
  • 39
  • 44
  • 47 & 50

37 102764701CC

  • 102764701CC - KIT INPUT SHAFT REPAIR
  • W/Ref. 35-38 & 55-59

38 102764801CC

  • 102764801CC - KIT GOVERNOR SHAFT REPAIR
  • W/Ref. 12
  • 15 & 54 - gasoline vehicles only

39 102700101CC

  • 102700101CC - ASSY GOVERNOR ARM
  • NLA - Was 102700101CC

40 102697001CC

  • 102697001CC - BEARING
