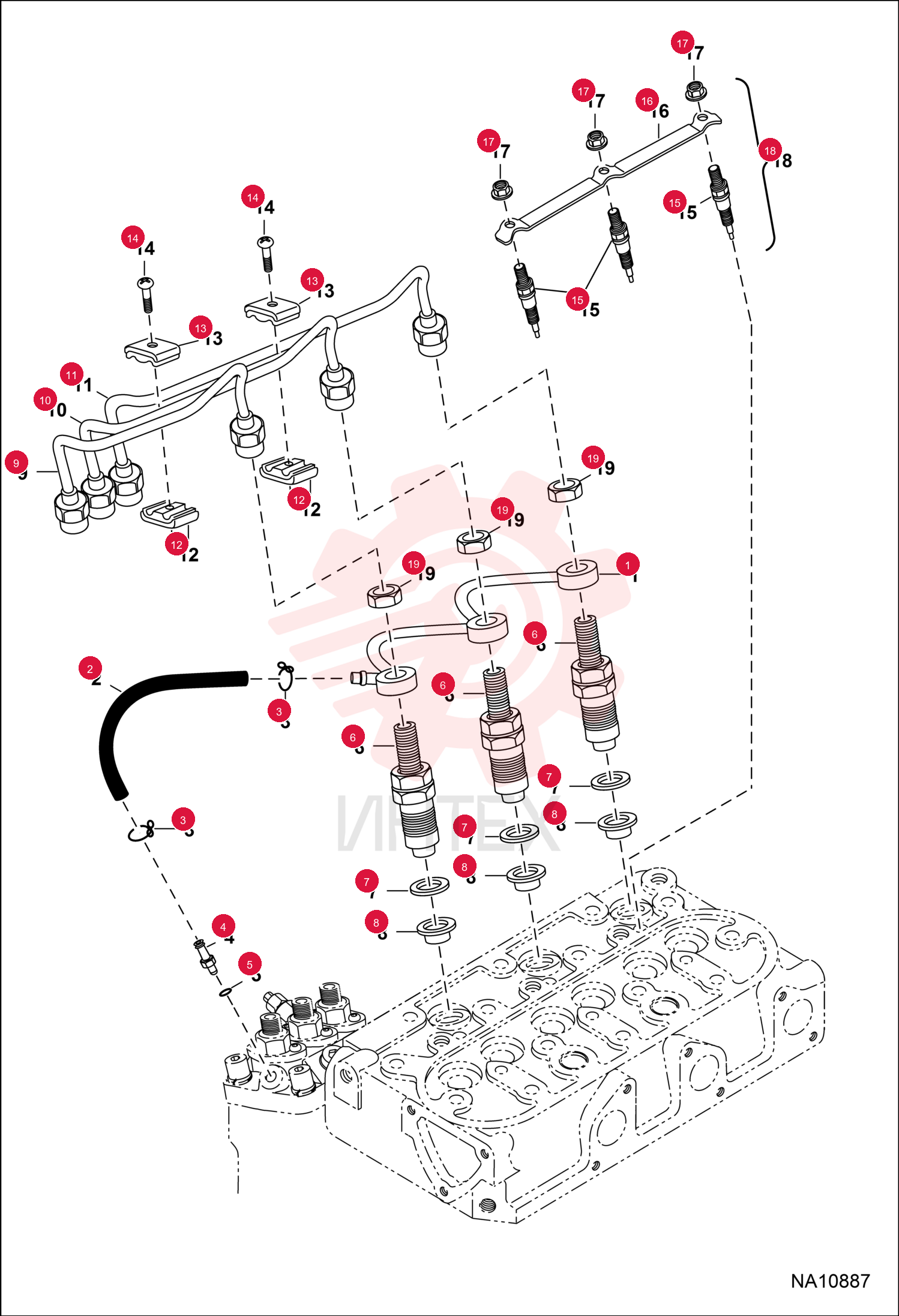

OVERFLOW HOSE 102605701CC (2)

OVERFLOW HOSE 102605701CC (2)

OVERFLOW HOSE 102605701CC (2)

1 102605701CC

  • 102605701CC - OVERFLOW HOSE
  • injector return

2 6670464

  • 6670464 - HOSE
  • overflow - W/Ref. 3

3 7277130

  • 7277130 - CLIP
  • PIPE

4 6657446

  • 6657446 - SCREW
  • bleeder

5 3974972

  • 3974972 - GASKET

6 6655218

  • 6655218 - GASKET

7 6655872

  • 6655872 - SEAL

8 6698158

  • 6698158 - PIPE
  • INJECTION

9 7000380

  • 7000380 - PIPE
  • INJECTION

10 7000381

  • 7000381 - PIPE
  • INJECTION

11 6652688

  • 6652688 - CLAMP

12 6652689

  • 6652689 - CLAMP

13 3974260

  • 3974260 - SCREW

14 6670471

  • 6670471 - WIRE

15 6670472

  • 6670472 - NUT

16 7277132

  • 7277132 - PLUG
  • GLOW
  • W/Ref. 15 & 17

17 7277131

  • 7277131 - NUT
  • HEX
