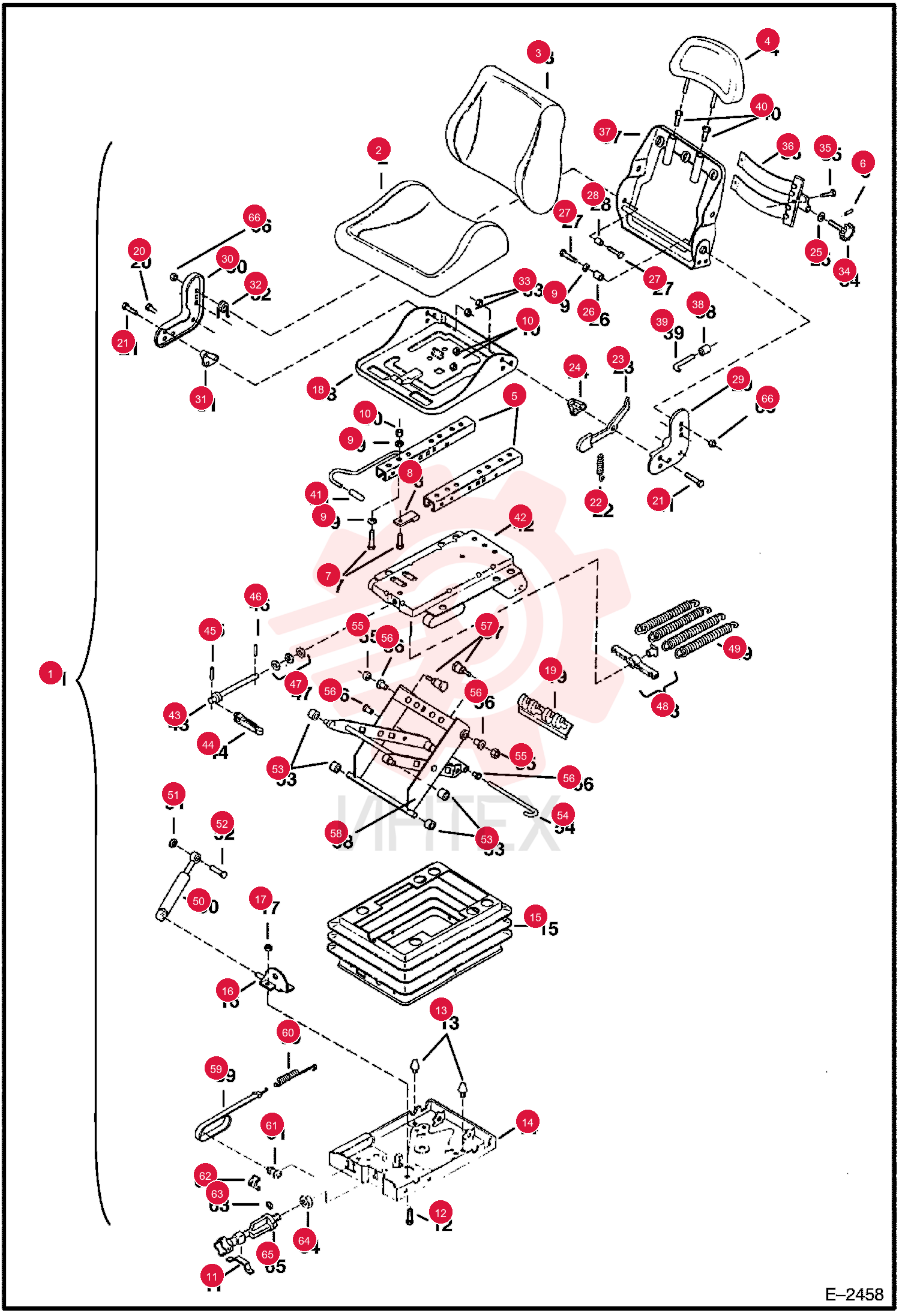

CUSHION, SEAT VINYL 6664180
1 6664180
- 6664180 - CUSHION
- SEAT VINYL
- Bottom - vinyl
2 6659451
- 6659451 - CUSHION
- SEAT CLOTH
- Bottom - cloth
3 6670721
- 6670721 - CUSHION
- SEAT
- Back - vinyl
4 6659447
- 6659447 - CUSHION - CLOTH
- Back - cloth
5 6659456
- 6659456 - HEAD REST
- Cloth
6 6675041
- 6675041 - HEADREST
- Vinyl
7 6677479
- 6677479 - SEAT RAILS
- Set - Was 6677479
8 4CM816
- 4CM816 - SCREW HEX HD 8.8
- Was 1CM816
9 6675040
- 6675040 - STOP
10 6659431
- 6659431 - WASHER
11 1DM8
- 1DM8 - NUT
12 6659423
- 6659423 - BAND
13 4CM612
- 4CM612 - BOLT
- Was 1CM612
14 6650509
- 6650509 - BUMPER
15 6675061
- 6675061 - PLATE
- Lower - W/Ref. 13
- 61 & 62
16 6659424
- 6659424 - BOOT
17 6675062
- 6675062 - STOP
- W/Ref. 12 & 17
18 1DM6
- 1DM6 - NUT
19 6675044
- 6675044 - SEAT PAN
20 4CM825
- 4CM825 - BOLT HEX HEAD
- Was 1CM825
21 6675045
- 6675045 - SPRING
22 6675046
- 6675046 - LEVER
- W/Ref. 22
23 6675047
- 6675047 - PLATE
24 6675048
- 6675048 - TUBE
25 1CM830
- 1CM830 - SCREW
26 6675049
- 6675049 - BUSHING
27 6675067
- 6675067 - BRACKET LT.
- W/Ref. 9
- 20
- 21
- 23
- 24
- 26
- 27
- 38
- 39 & 66
28 6675068
- 6675068 - BRACKET RT.
- W/Ref. 20
- 21
- 27
- 28
- 31
- 32 & 66
29 6675050
- 6675050 - PLATE
30 6675051
- 6675051 - SPRING
31 61D7
- 61D7 - NUT
32 6675052
- 6675052 - SPINDLE
- W/Ref. 6
33 6675053
- 6675053 - SUPPORT
- W/Ref. 35
34 6675054
- 6675054 - BACKREST
35 6659444
- 6659444 - BUSHING
36 6675066
- 6675066 - HANDLE
37 6675055
- 6675055 - MOUNT
38 6675065
- 6675065 - SPINDLE
- Assy. W/Ref. 44
39 6675056
- 6675056 - HANDLE
- W/Ref. 4
40 6659404
- 6659404 - PIN
- DOWEL
- Was 6659429
41 6659408
- 6659408 - SPRING
42 6659409
- 6659409 - SABSORBER
- W/Ref. 51 & 52
43 6650441
- 6650441 - WASHER
44 6650475
- 6650475 - BOLT
45 6650464
- 6650464 - ROLLER
46 1DM8
- 1DM8 - NUT
47 6650488
- 6650488 - BUSHING
48 6675058
- 6675058 - BOLT
49 6675059
- 6675059 - ARMS
- Assy. Ref. 19 & 53-57
50 6675060
- 6675060 - INDICATOR
- Weight - W/Ref. 60 - 62
51 6650474
- 6650474 - SPRING
52 6650460
- 6650460 - ROLLER
53 6650466
- 6650466 - PLUG
54 6650440
- 6650440 - WASHER
55 6650459
- 6650459 - WASHER
56 6659420
- 6659420 - H/REGULAT
- Height - W/Ref. 11
- 63 & 64
57 6668060
- 6668060 - NUT
