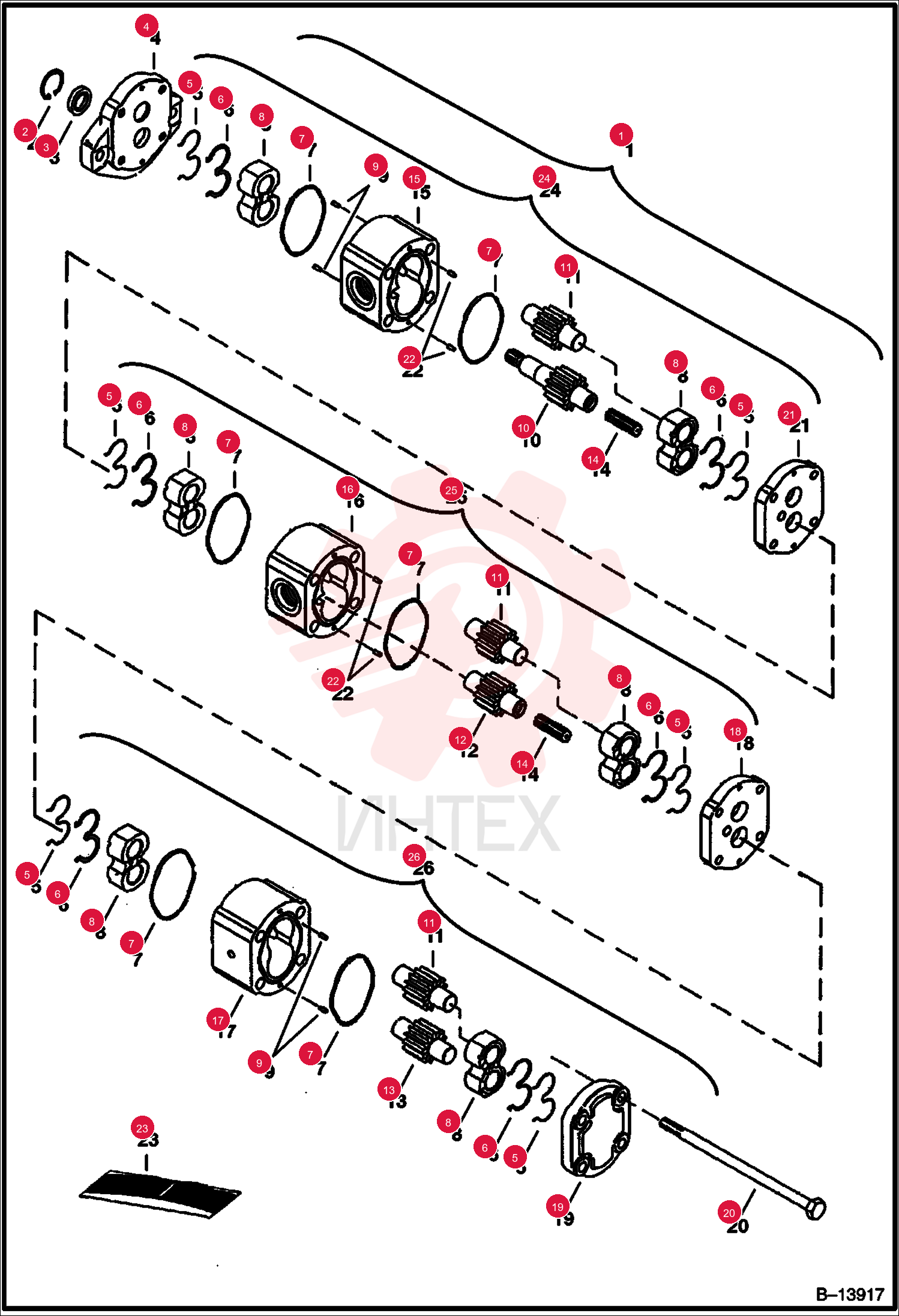

PUMP, GEAR TRIPLE
1 6666930
- 6666930 - PUMP
- GEAR TRIPLE
- assy. W/Ref. 2-22 - Was 6662769
2 6662925
- 6662925 - SNAP RING
3 6662926
- 6662926 - SEAL
- incl. W/Ref. 23
4 6663978
- 6663978 - COVER
- front
5 6663979
- 6663979 - BEARING
6 6662929
- 6662929 - PIN
- DOWEL
- .403 inch (10
- 25mm) long
7 6663989
- 6663989 - PLATE
8 6662932
- 6662932 - COVER
- end
9 6667554
- 6667554 - BOLT
- Was 6663985
10 6664583
- 6664583 - PLATE
11 6665621
- 6665621 - DOWEL PIN
- .716 inch (18
- 20mm) long
12 6663990
- 6663990 - SEAL KIT
- Includes Ref. 3 (1)
- 5 (6)
- 6 (6) & 7 (6)
13 6663988
- 6663988 - HOUSING
- end - Ref. 5(2)
- 6(2)
- 7(2)
- 8(2)
- 9(2)
- 11(1) & 13(1)
