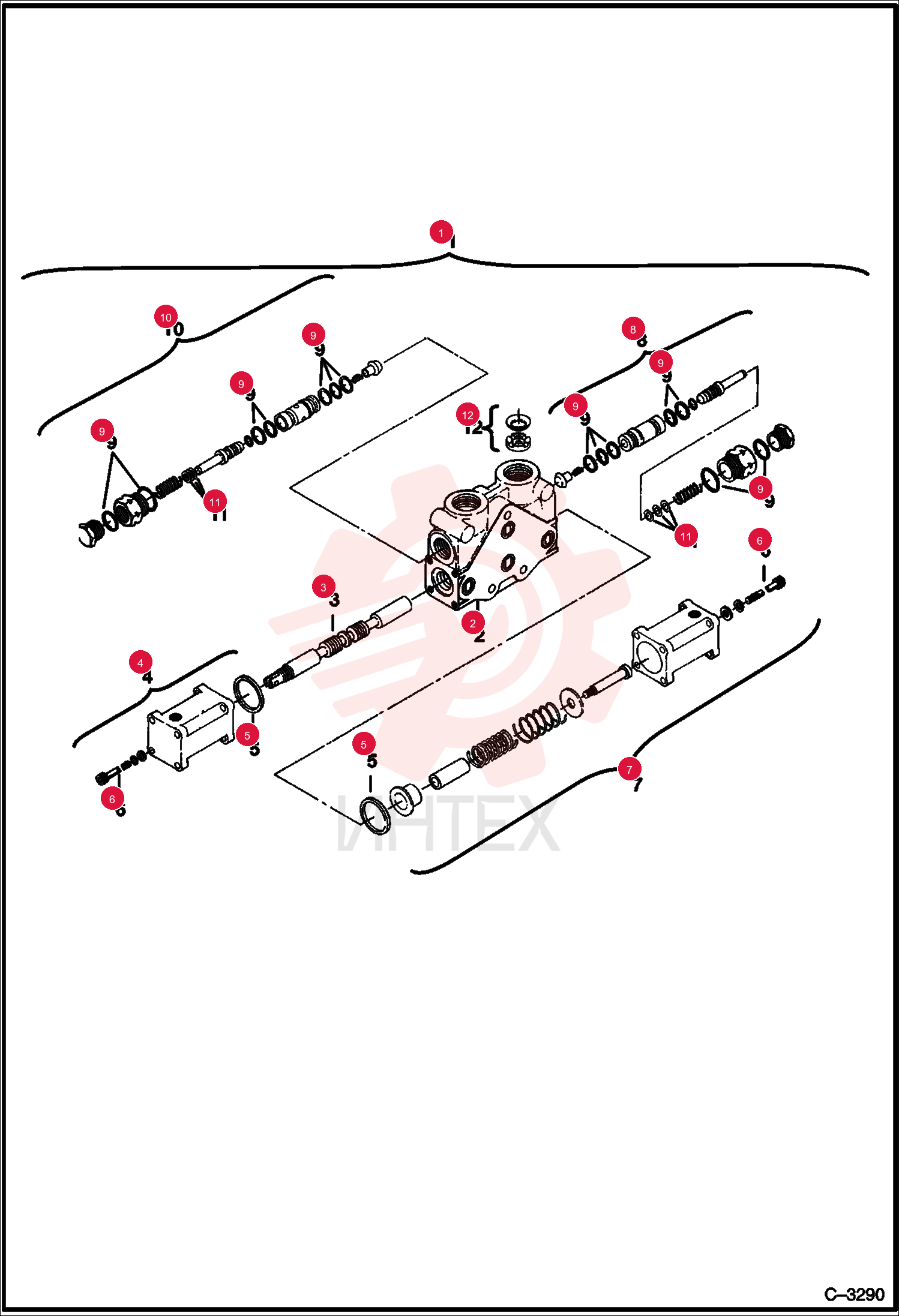

VALVE, SECTION
1 6660498
- 6660498 - VALVE
- SECTION
- boom - W/Ref. 2-11 - Was 6660488
2 6660742
- 6660742 - POSITIONER
- spool W/Ref. 5 & 6
3 6660743
- 6660743 - SEAL
- positioner
4 6665439
- 6665439 - BOLT
- Was 73G000448B
5 6660744
- 6660744 - POSITONER
- spool W/Ref. 5 & 6
6 6651653
- 6651653 - VALVE
- RELIEF
- set at 2950 PSI - W/Ref. 9 & 11
7 6647693
- 6647693 - SEAL KIT
8 6660746
- 6660746 - VALVE
- RELIEF
- seat at 3400 PSI - W/Ref. 9 & 11
9 896265
- 896265 - SHIM
- .010'' (0
- 25 mm) thick
10 896264
- 896264 - SHIM
- .020'' (0
- 5 mm) thick
11 896263
- 896263 - SHIM
- .040'' (1
- 0 mm) thick
12 6660745
- 6660745 - ORIFICE
- assy. (.125 inch) w/spring washer
