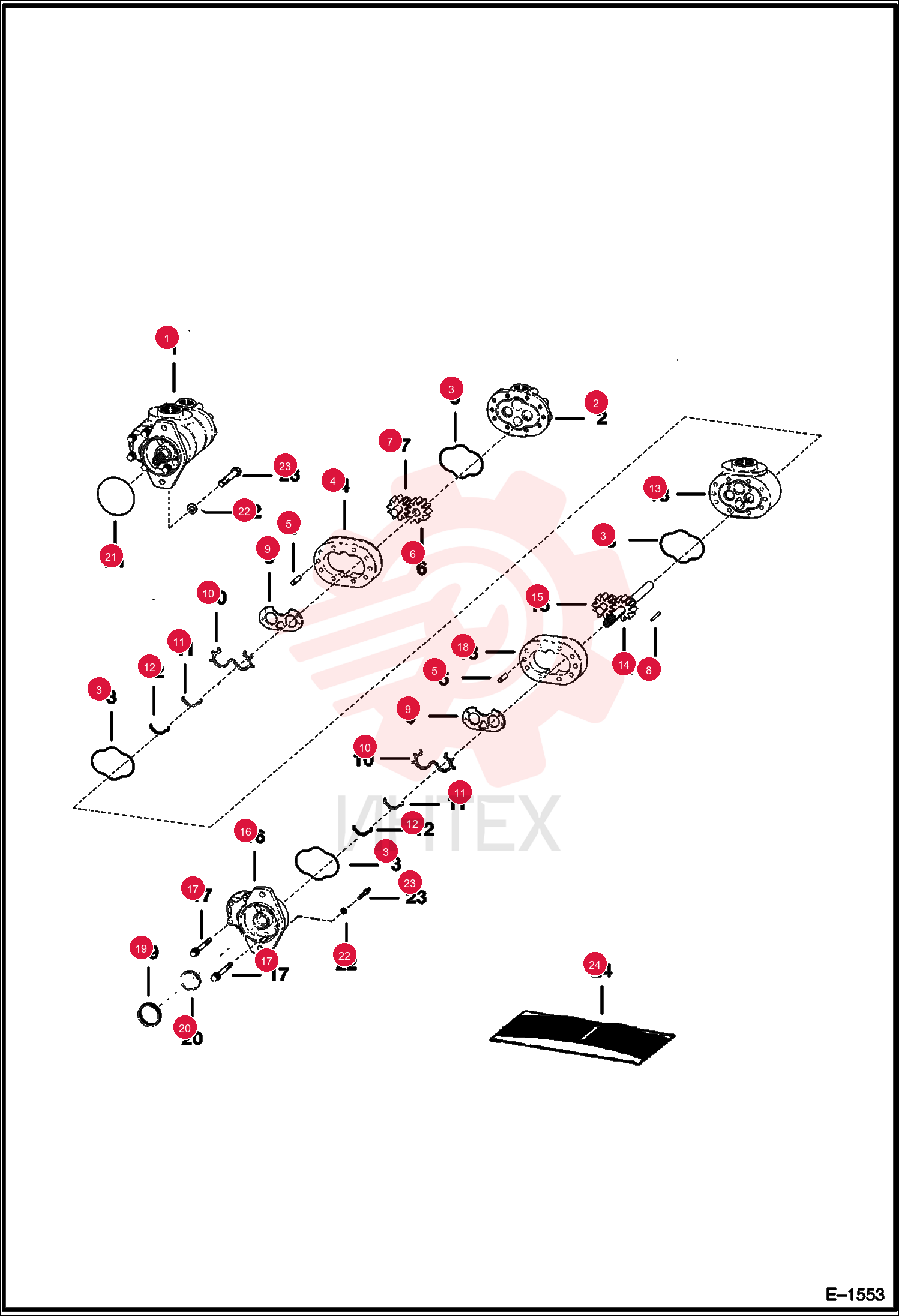

PUMP 6655407 (1)

PUMP 6655407 (1)

PUMP 6655407 (1)

1 6655407

  • 6655407 - PUMP
  • Gear - Eaton # 25385 LAH

2 6630361

  • 6630361 - BACKPLATE
  • back

3 6647740

  • 6647740 - BODY
  • W/Ref. 5

4 455536

  • 455536 - DOWEL

5 6647737

  • 6647737 - GEAR
  • Slip

6 6647741

  • 6647741 - GEAR
  • IDLER
  • Idler

7 6647733

  • 6647733 - KEY

8 6647738

  • 6647738 - GEAR
  • Drive - For # 25384 LAE Pump

9 6659362

  • 6659362 - GEAR
  • Drive - For # 25385 LAH Pump

10 6647735

  • 6647735 - GEAR
  • IDLER
  • Idler - For # 25384 LAE Pump

11 6631028

  • 6631028 - GEAR
  • IDLER
  • Idler - For # 25385 LAH Pump

12 6631026

  • 6631026 - PLATE
  • Front

13 6647739

  • 6647739 - SCREW

14 6647734

  • 6647734 - BODY
  • W/Ref. 5 - For # 25384 LAE Pump

15 6631027

  • 6631027 - BODY
  • W/Ref. 5 - For # 25385 LAH Pump

16 6645080

  • 6645080 - O-RING

17 6557831

  • 6557831 - WASHER CONTROLS

18 93G628

  • 93G628 - SCREW

19 6630387

  • 6630387 - SEAL KIT
  • W/Ref. 3
  • 9-12
  • 19 & 20
