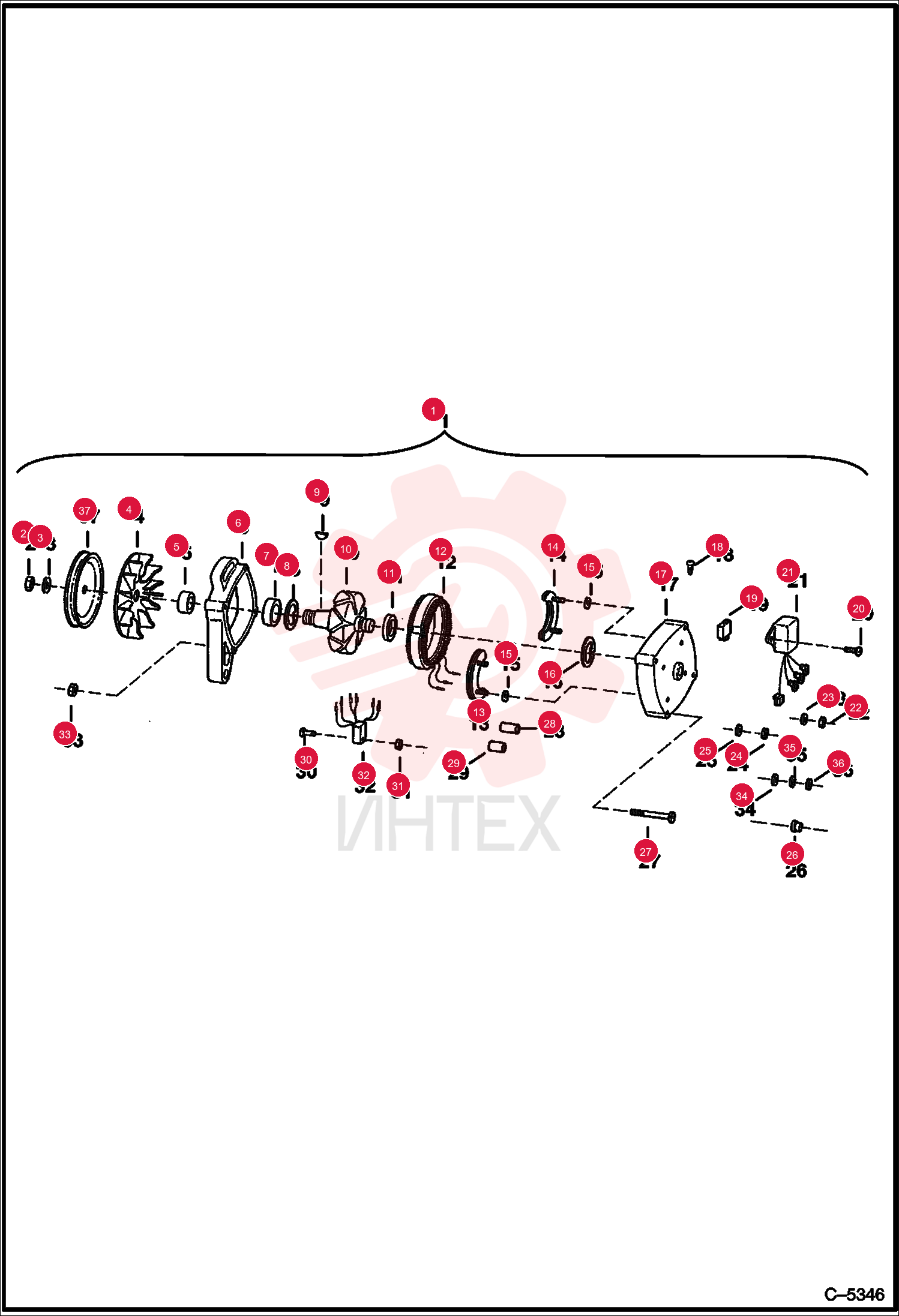

NUT 6635526 (3)

NUT 6635526 (3)

NUT 6635526 (3)

1 6635526

  • 6635526 - NUT

2 6635557

  • 6635557 - WASHER

3 6668831

  • 6668831 - FAN

4 6668832

  • 6668832 - SPACER

5 6668833

  • 6668833 - HOUSING
  • Front

6 6668834

  • 6668834 - BEARING
  • Front

7 6634084

  • 6634084 - RETAINER

8 6J405

  • 6J405 - KEY

9 6668835

  • 6668835 - ROTOR

10 1991038

  • 1991038 - BEARING
  • Rear

11 6668836

  • 6668836 - STATOR
  • Assembly

12 6668837

  • 6668837 - DIODE
  • Negative

13 6668838

  • 6668838 - DIODE
  • Positive

14 896990

  • 896990 - WASHER
  • #10 x 3/4

15 896992

  • 896992 - RETAINER

16 6668839

  • 6668839 - HOUSING
  • Rear

17 6668840

  • 6668840 - SCREW

18 6668841

  • 6668841 - BRUSH ASSEMBLY
  • Assembly

19 6668842

  • 6668842 - SCREW

20 6668843

  • 6668843 - REGULATOR
  • Voltage

21 6635498

  • 6635498 - NUT

22 6668844

  • 6668844 - WASHER

23 6668845

  • 6668845 - NUT

24 6668846

  • 6668846 - WASHER
  • 1/4 in. stud

25 6668847

  • 6668847 - CAP

26 6668848

  • 6668848 - BOLT

27 6668849

  • 6668849 - SLEEVE
  • 1/4 in. ID x 1/2 in.

28 6668850

  • 6668850 - SLEEVE
  • #10 x 1/3

29 897245

  • 897245 - INSULATOR
  • Square - #10 ID
  • 5/8 in. OD

30 6668851

  • 6668851 - DIODE
  • Trio

31 6668852

  • 6668852 - NUT

32 6668853

  • 6668853 - WASHER
  • Flat 1/4 in.

33 6635531

  • 6635531 - WASHER
  • Flat #10

34 6668854

  • 6668854 - WASHER
  • Flat .023 ID x .50 OD

35 6649609

  • 6649609 - PULLEY
