Bobcat
/
2400
/

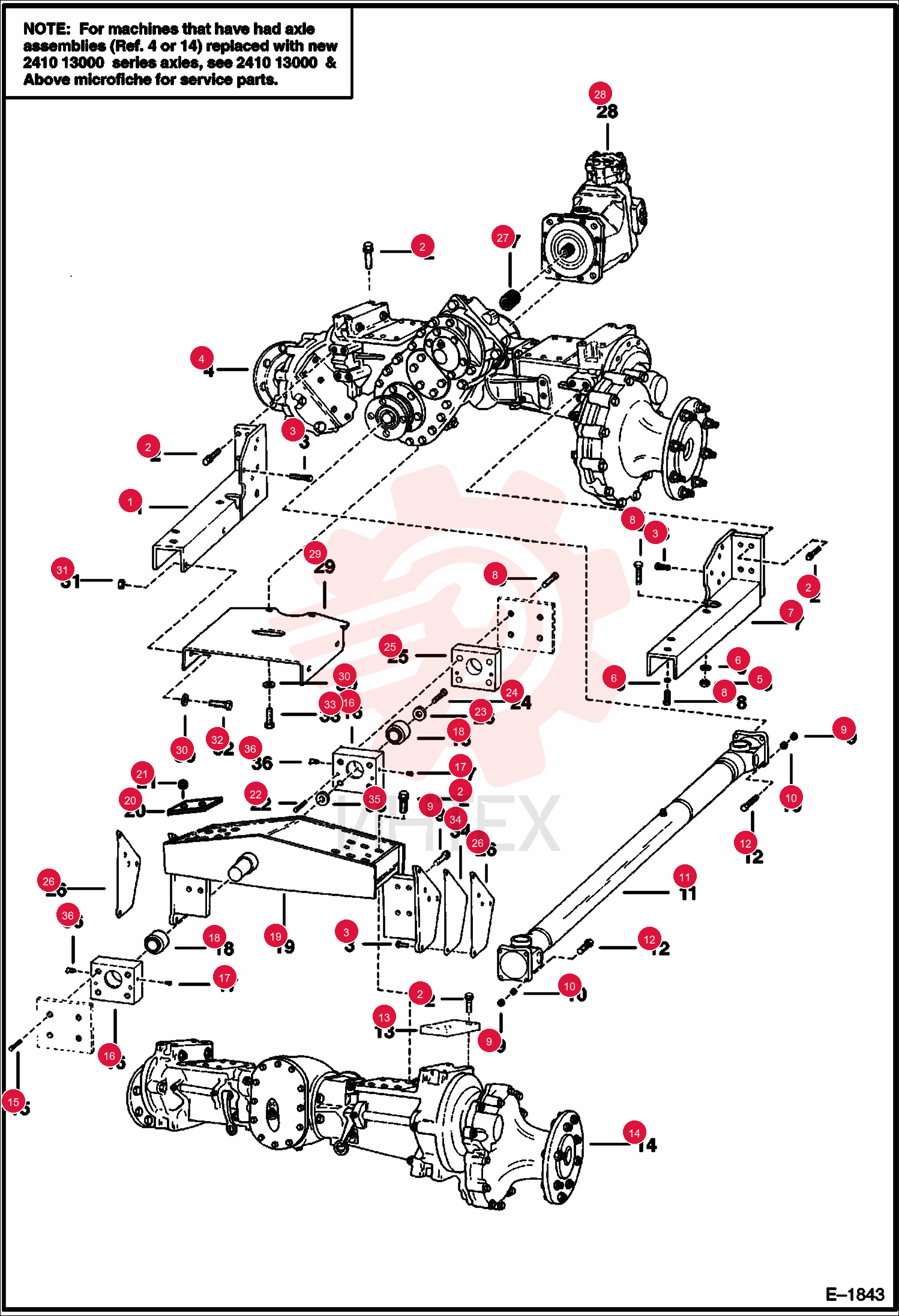

SUPPORT 6587212 (1)

SUPPORT 6587212 (1)

SUPPORT 6587212 (1)

1 6587212

  • 6587212 - SUPPORT
  • L.H. - Was 6585800

2 6586125

  • 6586125 - SCREW

3 7CM1440

  • 7CM1440 - BOLT

4 61D12

  • 61D12 - NUT

5 27E12

  • 27E12 - WASHER

6 6587213

  • 6587213 - SUPPORT
  • R.H. - Was 6585796

7 17C1240

  • 17C1240 - BOLT

8 64D7

  • 64D7 - NUT

9 4E7

  • 4E7 - WASHER

10 18C720

  • 18C720 - BOLT

11 6585804

  • 6585804 - PLATE

12 17C1228

  • 17C1228 - BOLT

13 6585795

  • 6585795 - BLOCK

14 40K2

  • 40K2 - PLUG HEX

15 6641335

  • 6641335 - BEARING
  • self-aligning

16 6539870

  • 6539870 - AXLEMOUNT
  • Also Ref. 35 - Was 6585969

17 6585793

  • 6585793 - PLATE
  • double slot

18 61D6

  • 61D6 - NUT HEX FINISHED GR5
  • hex

19 17C632

  • 17C632 - BOLT 5

20 6534308

  • 6534308 - WASHER
  • 2'' O.D. x .94'' I.D. x .25'' Thick -Chamfered - Must be installed with chamfer toward bolt head

21 18C1424

  • 18C1424 - BOLT

22 6585794

  • 6585794 - BLOCK

23 6583739

  • 6583739 - SHIM

24 6646297

  • 6646297 - BUSHING

25 6531831

  • 6531831 - AIRSHIELD

26 25E22

  • 25E22 - WASHER

27 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

28 17C820

  • 17C820 - BOLT 5

29 1CM1430

  • 1CM1430 - BOLT

30 6533266

  • 6533266 - SHIM
  • 0.02

31 6534309

  • 6534309 - WASHER
  • 2.25" O.D. x 1.75" I.D. x .10" thick

32 12H15

  • 12H15 - FTG GREASE 90
