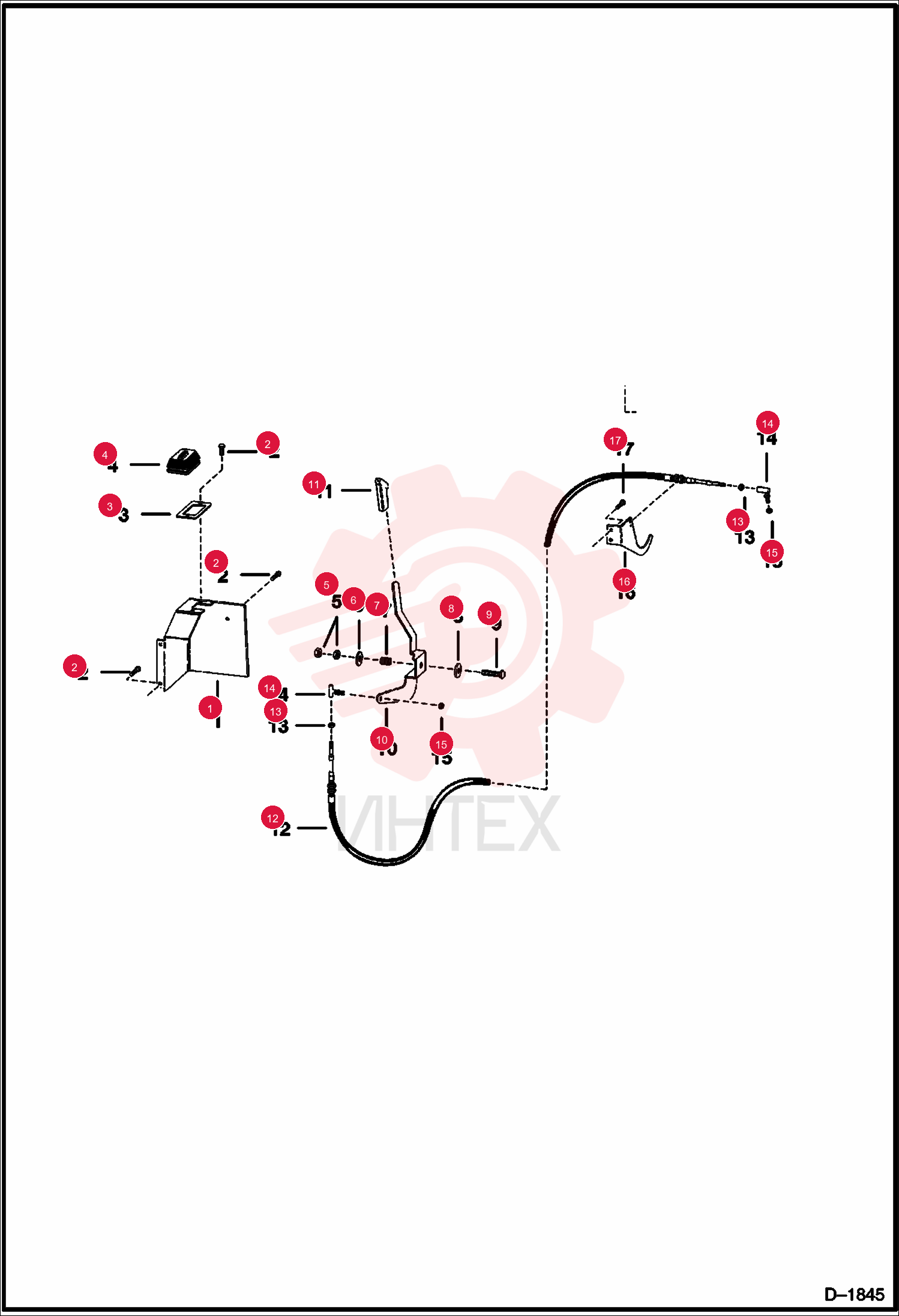

COVER 6583701 (2)

COVER 6583701 (2)

COVER 6583701 (2)

1 6583701

  • 6583701 - COVER

2 25G510

  • 25G510 - BOLT

3 6583697

  • 6583697 - BOOT

4 61D6

  • 61D6 - NUT HEX FINISHED GR5

5 27E6

  • 27E6 - WASHER HARDEN PLAIN

6 6562126

  • 6562126 - SPRING

7 6562127

  • 6562127 - WASHER

8 17C644

  • 17C644 - BOLT

9 6585892

  • 6585892 - LEVER

10 6553557

  • 6553557 - GRIP

11 6644964

  • 6644964 - CABLE

12 14D10

  • 14D10 - NUT HEX MACH SCREW

13 6644965

  • 6644965 - BALL JOINT

14 62D4

  • 62D4 - NUT HEX FINISHED GR5

15 18C508

  • 18C508 - BOLT
