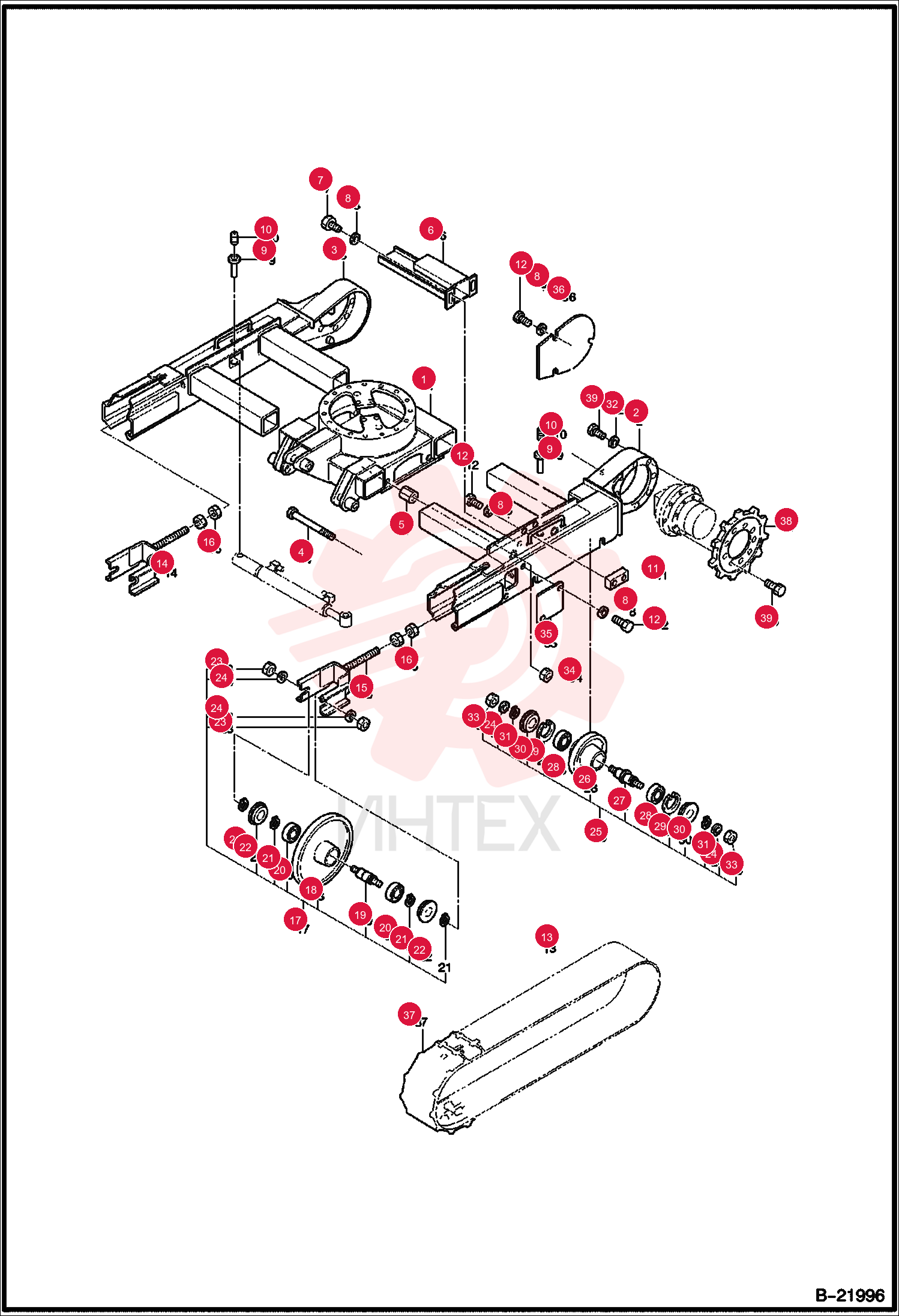

FRAME, CENTER
1 NTS1-30000-1
- NTS1-30000-1 - FRAME
- CENTER
- center
2 NTS1-10000-2
- NTS1-10000-2 - FRAME
- track - Was NTS1-10000-1
3 NTS1-20000-2
- NTS1-20000-2 - FRAME
- track - Was NTS1-20000-1
4 NTS1-00013
- NTS1-00013 - BOLT
- STOPPER
- stopper
5 NTS1-00014
- NTS1-00014 - NUT
- LOCK
6 NTS1-00018
- NTS1-00018 - COVER
- CYL
- cylinder
7 0102-08015
- 0102-08015 - BOLT
- M8x15
8 0389-08000-A
- 0389-08000-A - WASHER
- M8
9 NTS1-00009
- NTS1-00009 - PIN
10 0340-08010-C
- 0340-08010-C - SCREW
- SET
11 NTS1-00010
- NTS1-00010 - PLATE
12 0102-08015-A
- 0102-08015-A - BOLT
13 NTS1-01900-1
- NTS1-01900-1 - FORK IDLER
- Left - Was NTS1-01900-B
14 NTS1-02000-1
- NTS1-02000-1 - FORK IDLER
- Right - Was NTS1-02000-B
15 0311-20000-A
- 0311-20000-A - NUT
- M20
16 NTS1-60000
- NTS1-60000 - FRONT IDLER ASS'Y
- front - W/Ref. 18-24
17 NTS1-60001
- NTS1-60001 - IDLER
- FRONT
- front
18 NTS1-60002
- NTS1-60002 - SHAFT
- IDLER
- idler
19 0460-62025-O
- 0460-62025-O - BEARING
- BALL
- ball
20 0455-02500-O
- 0455-02500-O - RING
- SNAP (S)
21 NTS1-60003
- NTS1-60003 - SEAL
- OIL
22 0251-16000-A
- 0251-16000-A - NUT
- M16
23 0389-16000-A
- 0389-16000-A - WASHER
- M16
24 NTS1-50000
- NTS1-50000 - TRUCK ROLLER ASMBLY
- truck - W/Ref. 26-31
25 NTS1-50001
- NTS1-50001 - TRUCK ROLLER
26 NTS1-50002
- NTS1-50002 - SHAFT
- TRUCK ROLLER
- truck roller
27 0460-62025-O
- 0460-62025-O - BEARING
- BALL
- ball
28 0446-05200-O
- 0446-05200-O - RING
- SNAP (H)
29 810050001
- 810050001 - SEAL
- OIL
30 0455-02500-O
- 0455-02500-O - RING
- SNAP (S)
31 0389-10000-A
- 0389-10000-A - WASHER
- M10
32 0275-16000-A
- 0275-16000-A - NUT
- CAP
33 0311-10000-A
- 0311-10000-A - NUT
34 NTS1-00015
- NTS1-00015 - COVER
35 NTS1-00016-1
- NTS1-00016-1 - COVER
- BEARING
- case
36 7261330
- 7261330 - TRACK RUBBER (180X72X38) 7" MX
37 NTS1-00023
- NTS1-00023 - SPROCKET
38 0160-10025-A
- 0160-10025-A - BOLT
- SOCKET HEAD
- M10x25
