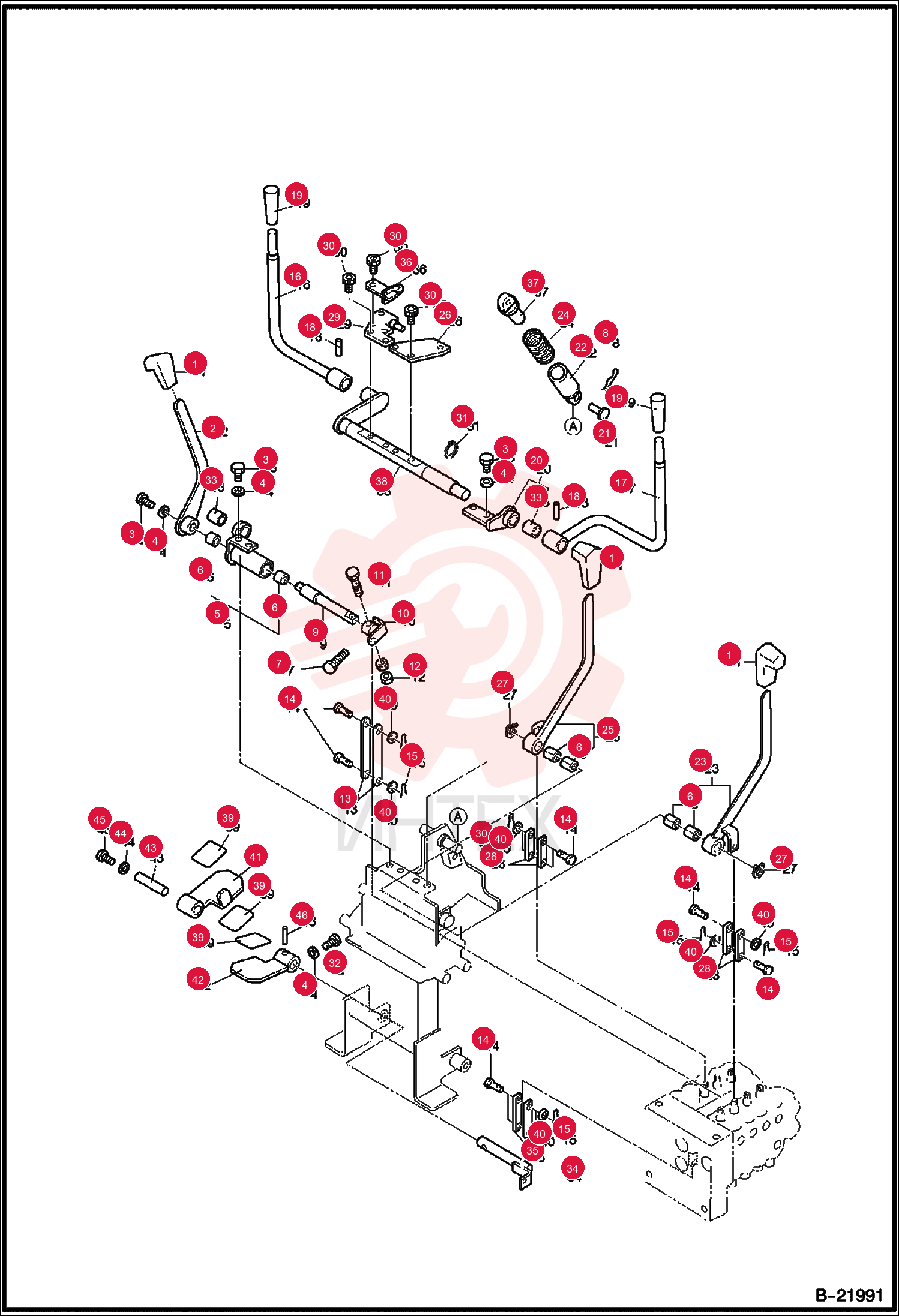

GRIP
1 NTS4-10011
- NTS4-10011 - GRIP
- lever
2 NTS4-12300-1
- NTS4-12300-1 - LEVER
- DOZER
- dozer
3 0102-08020-A
- 0102-08020-A - BOLT
- M8x20
4 0389-08000-A
- 0389-08000-A - WASHER
- M8
5 NTS4-42100
- NTS4-42100 - BRACKET
- W/Ref. 6 & 50
6 0480-15010-0
- 0480-15010-0 - BUSH
- Was 0480-15010-O
7 0102-08012-A
- 0102-08012-A - BOLT
- M8x12
8 0421-10040
- 0421-10040 - PIN
- SPLIT
- split
9 NTS4-10013
- NTS4-10013 - SHAFT
10 NTS4-10500-1
- NTS4-10500-1 - BLOCK
11 0102-06035-A
- 0102-06035-A - BOLT
- M6x35
12 0311-06000-A
- 0311-06000-A - NUT
- M6
13 NTS4-10006-1
- NTS4-10006-1 - JOINT
14 NB50-023030
- NB50-023030 - PIN
- LINK
- link
15 0420-02015-O
- 0420-02015-O - PIN
- SPLIT
16 NTS4-43100
- NTS4-43100 - RH LOCK LEVER
17 NTS4-43100-B
- NTS4-43100-B - RH LOCK LEVER
18 NTS4-43200-A
- NTS4-43200-A - LOCK LEVER
19 NTS4-43200-B
- NTS4-43200-B - LH LOCK LEVER
20 0425-60025-0
- 0425-60025-0 - PIN
- spring spring - Was 0425-60025-O
21 870-00008
- 870-00008 - PIN GRIP
22 NTS4-42200
- NTS4-42200 - BRACKET
- W/Ref. 33
23 NTS4-40002
- NTS4-40002 - PIN
24 NTS4-44100
- NTS4-44100 - BODY
25 NTS4-11000-1
- NTS4-11000-1 - ASSY
- LEVER
- LH drive - W/Ref. 6
26 NTS4-44001
- NTS4-44001 - SPRING
27 NTS4-10900-1
- NTS4-10900-1 - ASSY
- LEVER
- RH drive - W/Ref. 6
28 NTS4-42001
- NTS4-42001 - PLATE
29 0445-01500-O
- 0445-01500-O - RING
- SNAP (S)
30 NTS4-42400
- NTS4-42400 - PLATE
31 0160-08010-A
- 0160-08010-A - BOLT
32 0445-01600-0
- 0445-01600-0 - RING
- RETAINING
- WQas 0445-01600
33 0102-08025-A
- 0102-08025-A - BOLT
- M8x25
34 0480-16015-O
- 0480-16015-O - BUSH
35 NTS4-16100
- NTS4-16100 - SHAFT
36 NTS4-10060
- NTS4-10060 - JOINT
37 NTS4-42500
- NTS4-42500 - BRACKET
38 NTS4-44200
- NTS4-44200 - ROD
39 NTS4-42300
- NTS4-42300 - SHAFT
40 NTS4-10064
- NTS4-10064 - NONSLIP
41 0389-05000-A
- 0389-05000-A - WASHER
42 NTS4-16300
- NTS4-16300 - PEDAL
- SWING(A)
43 NTS4-16400
- NTS4-16400 - PEDAL
- SWING(B)
44 NTS4-16303
- NTS4-16303 - SHAFT
45 0387-08000-A
- 0387-08000-A - WASHER
- 8
- 5mm IDx24
- 5mm ODx2
- 3mm Thk - M8
46 0425-60020-0
- 0425-60020-0 - PIN
- SPRING
- spring
