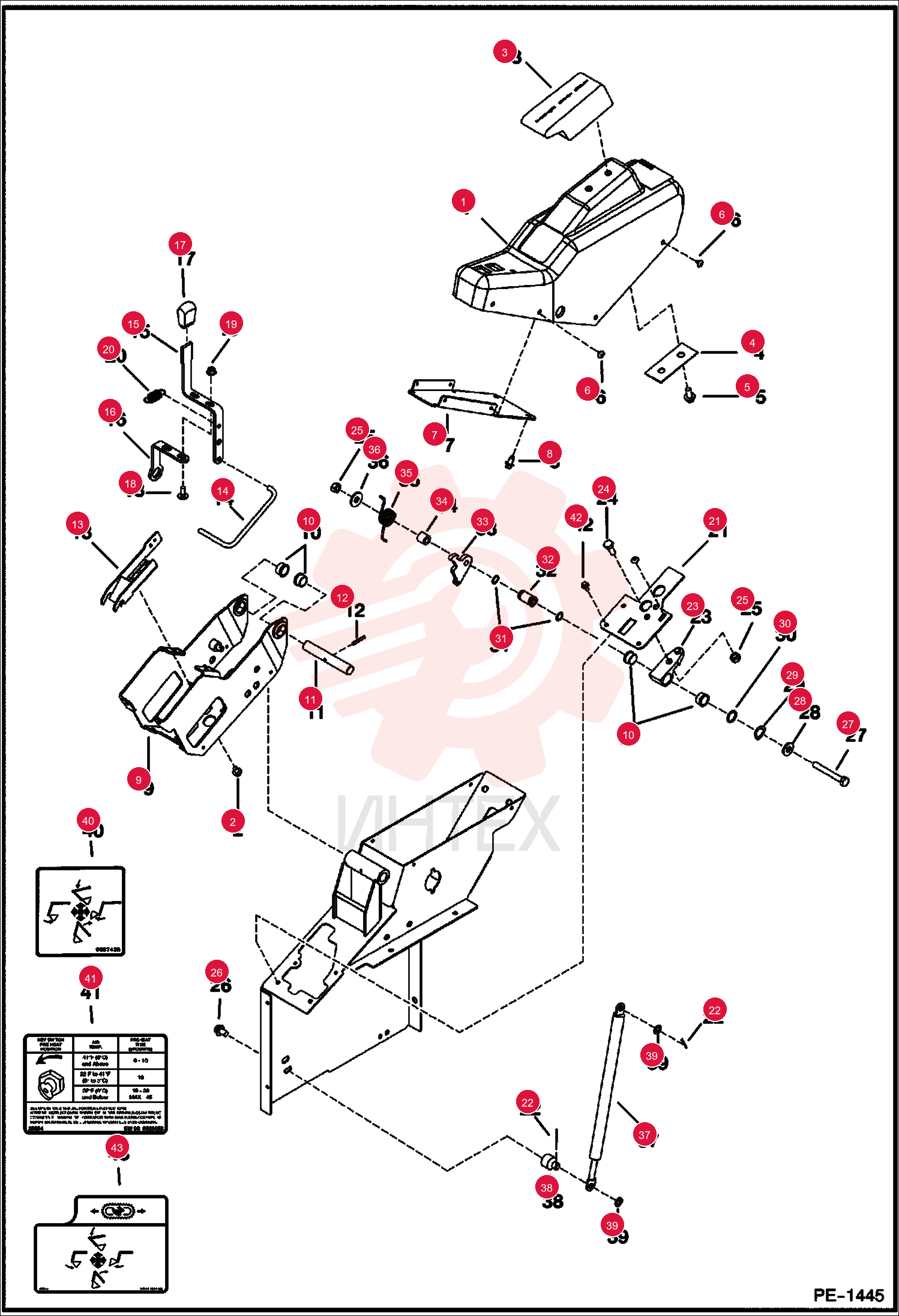

COVER
1 6807090
- 6807090 - COVER
- RH console - W/Ref. 40 & 41
2 29CM812
- 29CM812 - BOLT
3 6587157
- 6587157 - ARMREST
4 6587158
- 6587158 - PLATE
- Armrest Retainer
5 29CM1020
- 29CM1020 - SCREW HEX 10MMX20MM
6 6589675
- 6589675 - SCREW
- Self Tapping Torx Head
7 6586847
- 6586847 - COVER
8 26GM8016
- 26GM8016 - SCREW SELF TAPPING
- Self Tapping Flanged Head
9 6589377
- 6589377 - CONSOLE
10 6536801
- 6536801 - BUSHING
11 6586849
- 6586849 - PIN
12 14J1820
- 14J1820 - PIN
13 6586850
- 6586850 - BRACKET
- Console Latch
14 6586854
- 6586854 - ROD
- Console Release
15 6589384
- 6589384 - LEVER
- Console Release
16 6589383
- 6589383 - SUPPORT
- Release Lever
17 6586856
- 6586856 - KNOB
18 21CM820
- 21CM820 - BOLT
19 43DM8
- 43DM8 - NUT FLANGED HEX
20 6563128
- 6563128 - SPRING
21 6594859
- 6594859 - PLATE
- RH latch
22 13JM20025
- 13JM20025 - COTTERPIN
23 6537481
- 6537481 - MOUNT
- Pivot
24 1CM1025
- 1CM1025 - BOLT
25 53DM10
- 53DM10 - NUT HX THDLK PREAPPL
26 29CM1016
- 29CM1016 - SCREW FLANGE HEX CAP
27 1CM1080
- 1CM1080 - BOLT
28 27E6
- 27E6 - WASHER HARDEN PLAIN
29 6536803
- 6536803 - WASHER
- Wave Spring
30 6536802
- 6536802 - WASHER
31 58K015
- 58K015 - O-RING 10
32 6536545
- 6536545 - SLEEVE
33 6586853
- 6586853 - LATCH
- Console Hold Down
34 6587357
- 6587357 - BUSHING
35 6586868
- 6586868 - SPRING
36 17EM100
- 17EM100 - WASHER
37 6655965
- 6655965 - SPRING
- Gas Spring
38 6589879
- 6589879 - PIVOT
- Gas Spring
39 15EM100
- 15EM100 - WASHER
40 6587425
- 6587425 - DECAL
- RH ISO controls
41 6589058
- 6589058 - DECAL
- Pre-heat
42 6810157
- 6810157 - SCREW
43 6808344
- 6808344 - DECAL
