320.0
/

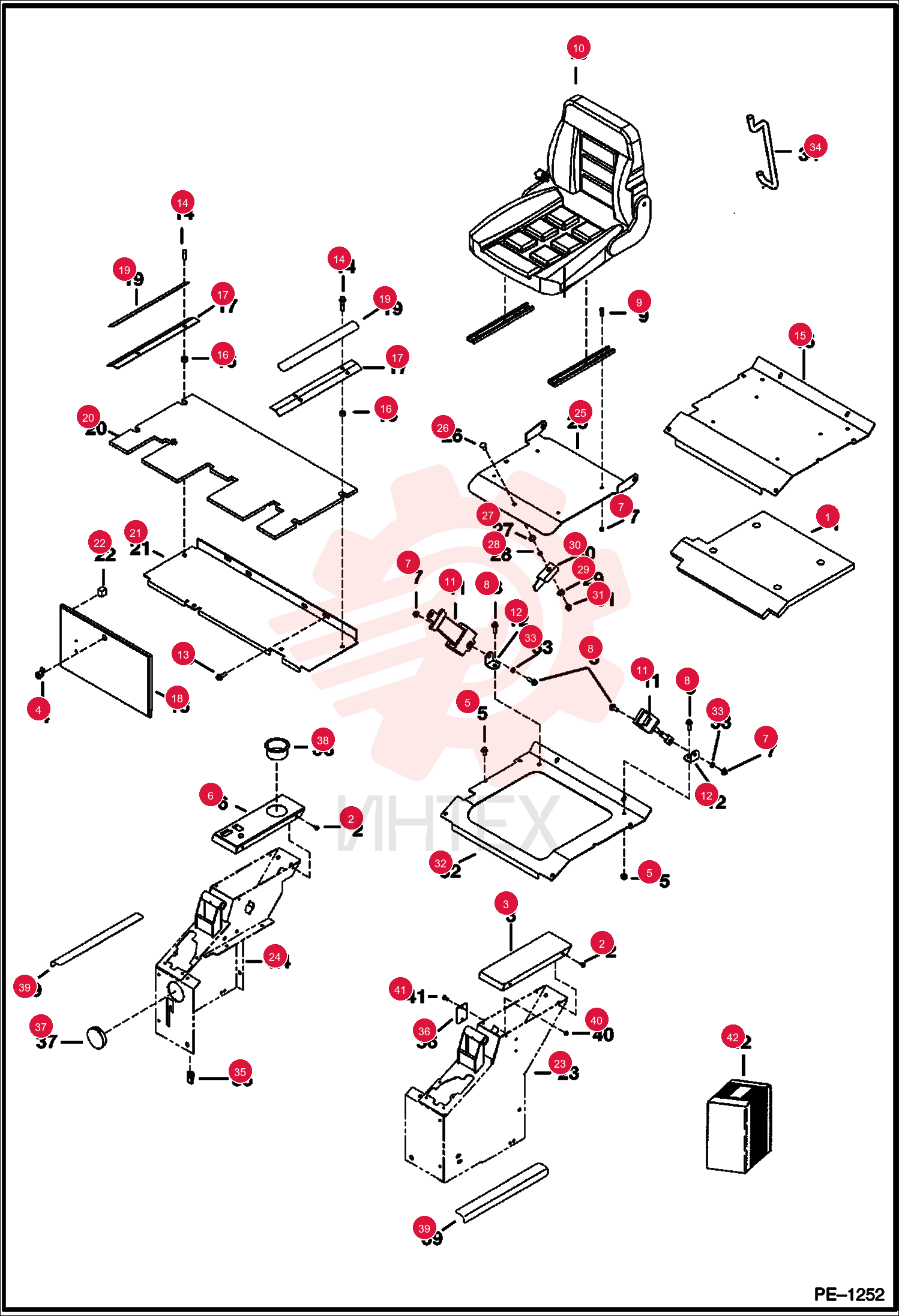

INSULATION

INSULATION

INSULATION

1 6808066

  • 6808066 - INSULATION

2 6589675

  • 6589675 - SCREW
  • Was 6810157

3 6806726

  • 6806726 - COVER
  • LH

4 6675723

  • 6675723 - LOCK
  • W/nuts
  • W/O keys

5 6675843

  • 6675843 - NUT

6 6693241

  • 6693241 - KEY (2)
  • ignition - single key W/O ring

7 4DM8

  • 4DM8 - NUT HEX

8 7101081

  • 7101081 - CONSOLE
  • COVER
  • RH - also order 6665314 - Was 6809271

9 43DM10

  • 43DM10 - NUT FLANGED HEX

10 29CM1020

  • 29CM1020 - SCREW HEX 10MMX20MM

11 3GM820

  • 3GM820 - SCREW

12 6632388

  • 6632388 - SEAT
  • OPERATOR SUSPENSION
  • Grammar

13 3737000

  • 3737000 - ADJ-LATCH
  • W/Adjustable handle

14 3737001

  • 3737001 - ADJUSTER
  • W/O Adjustable handle

15 3737081

  • 3737081 - CUSHION
  • SEAT BACK VINYL
  • Backrest

16 3737010

  • 3737010 - CUSHION
  • SEAT
  • Seat

17 7175003

  • 7175003 - SEAT
  • OPERATOR VINYL
  • vinyl - Was 6685658

18 6669135

  • 6669135 - SEAT
  • OPERATOR VINYL
  • Standard

19 6598809

  • 6598809 - SEAT
  • OPERATOR VINYL 2
  • Bobcat logo - includes qty (2) seats

20 6670865

  • 6670865 - BELT
  • SEAT
  • Assy.
  • LH & RH

21 6807573

  • 6807573 - BRACKET
  • Seat Belt

22 26GM10020

  • 26GM10020 - SCREW HEX THRDRLG

23 29CM1045

  • 29CM1045 - BOLT
  • Was 1CM-104

24 6503451

  • 6503451 - SPACER

25 6807326

  • 6807326 - ANGLE

26 6806900

  • 6806900 - COVER

27 6807327

  • 6807327 - TREAD
  • SAFETY

28 7104968

  • 7104968 - FLOORMAT
  • Was 6807328

29 6807109

  • 6807109 - FLOORBOARD

30 6809004

  • 6809004 - INSULATION
  • Was 6807633

31 6806239

  • 6806239 - SUPPORT
  • LH

32 6806238

  • 6806238 - SUPPORT
  • RH

33 7100356

  • 7100356 - COVER
  • Was 6810331

34 10C616

  • 10C616 - BOLT SHRT SQ NK RHD? 3/8-16X1 GRD 5

35 6808157

  • 6808157 - WASHER

36 15EM120

  • 15EM120 - WASHER

37 6562619

  • 6562619 - BUSHING

38 6810639

  • 6810639 - HANDLE

39 89D6

  • 89D6 - NUT

40 6810154

  • 6810154 - PAN
  • seat

41 6810385

  • 6810385 - BUSHING SPACER

42 6810406

  • 6810406 - ROD
  • hold open

43 6675722

  • 6675722 - NUT

44 6808156

  • 6808156 - COVER

45 6676223

  • 6676223 - PLUG

46 6676911

  • 6676911 - CUP

47 6588953

  • 6588953 - TREAD
  • SAFETY

48 43DM6

  • 43DM6 - NUT FLANGED HEX

49 6803202

  • 6803202 - SCREW

50 6690060

  • 6690060 - SEAT RAIL KIT
  • seat rail - slide
  • handle
  • knob
