Bobcat
/
320.0
/

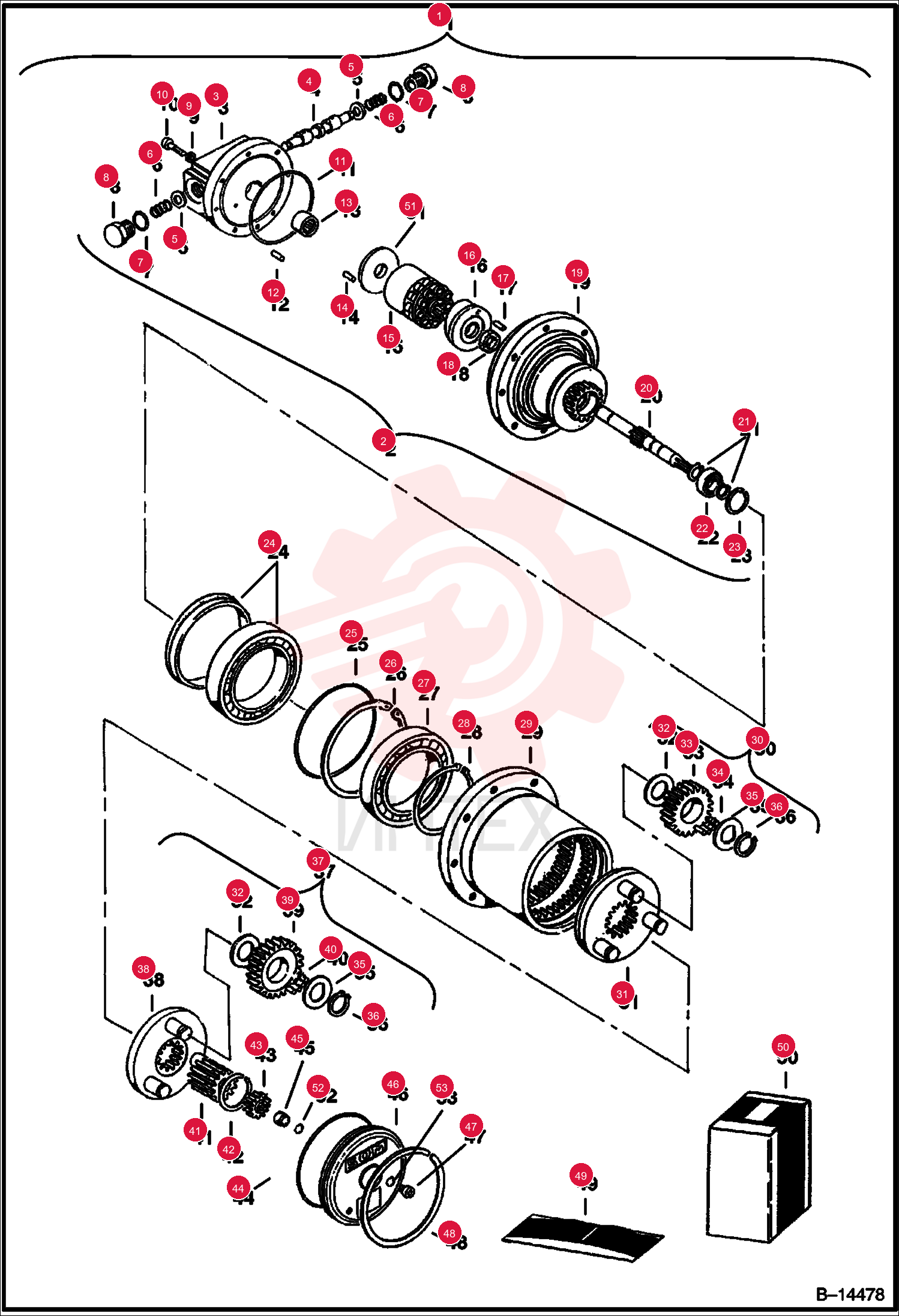

MOTOR, DRIVE HYD

MOTOR, DRIVE HYD

MOTOR, DRIVE HYD

1 6667336

  • 6667336 - MOTOR
  • DRIVE HYD
  • W/Ref. 2-48

2 6667750

  • 6667750 - MOTR ASSY
  • Assy. - W/Ref. 3-23

3 6667751

  • 6667751 - HOUSING

4 6667786

  • 6667786 - SPOOL

5 6667784

  • 6667784 - SPRING

6 6667777

  • 6667777 - O-RING
  • Incl. W/Ref. 49 & 50

7 6667788

  • 6667788 - WASHER

8 6667787

  • 6667787 - BOLT

9 6667779

  • 6667779 - O-RING
  • Incl. W/Ref. 49 & 50

10 6688111

  • 6688111 - PIN
  • Was 6667780

11 6667781

  • 6667781 - BEARING

12 6667782

  • 6667782 - DOWEL PIN

13 6667778

  • 6667778 - PISTON
  • MOTOR TRAVEL

14 6667775

  • 6667775 - PLATE
  • Swash

15 6667776

  • 6667776 - DOWEL PIN

16 6667774

  • 6667774 - SEAL
  • Incl. W/Ref. 49 & 50

17 6667789

  • 6667789 - HOUSING

18 6667772

  • 6667772 - SHAFT

19 6667756

  • 6667756 - SNAP RING

20 6667773

  • 6667773 - BEARING

21 6667762

  • 6667762 - SNAP RING

22 6667754

  • 6667754 - BEARING
  • W/Floating seal

23 6658401

  • 6658401 - O-RING
  • Incl. W/Ref. 49 & 50 - Was 6667769

24 6667770

  • 6667770 - BEARING

25 6667765

  • 6667765 - SNAP RING

26 6667748

  • 6667748 - HOUSING

27 6667792

  • 6667792 - GEAR ASSEMBLY
  • W/Ref. 31-36

28 6667757

  • 6667757 - WASHER

29 6667760

  • 6667760 - BEARING
  • needle

30 6667758

  • 6667758 - WASHER

31 6667759

  • 6667759 - SNAP RING

32 6667793

  • 6667793 - GEAR ASSEMBLY
  • W/Ref. 32
  • 35
  • 36 & 38-40

33 6667763

  • 6667763 - BEARING
  • Needle

34 6667753

  • 6667753 - GEAR

35 6667764

  • 6667764 - SNAP RING

36 6667752

  • 6667752 - GEAR

37 6667768

  • 6667768 - O-RING
  • Incl. W/Ref. 49 & 50

38 6667747

  • 6667747 - SPACER

39 6667749

  • 6667749 - COVER
  • Uses Plug & Rubber O-ring

40 6676161

  • 6676161 - PLUG
  • Uses Rubber O-ring

41 6667771

  • 6667771 - PLUG
  • W/Ref. 53 - Uses Aluminum Washer

42 6667767

  • 6667767 - SNAP RING

43 6667791

  • 6667791 - SEAL KIT
  • W/Ref. 7
  • 11
  • 18
  • 25 & 44

44 7310948

  • 7310948 - KIT PLUG

45 7308583

  • 7308583 - KIT UNIVERSAL PLUG

46 6667790

  • 6667790 - KIT
  • SEAL
  • W/Ref. 24 & 49

47 6669597

  • 6669597 - SHIM
  • .007" (0
  • 2mm) thick

48 6669598

  • 6669598 - SHIM
  • .012" (0
  • 3mm) thick

49 6669599

  • 6669599 - SHIM
  • .019" (0
  • 5mm) thick

50 6675272

  • 6675272 - WASHER
  • Aluminum - Use W/Plug 6667771
